ASRock Q1900B-ITX Дънни платки

Упътване до адрес:
Предложен маршрут:

Още оферти

Описание
Марка процесор Intel
CPU Socket  Интегриран CPU
Чипсет  Няма
Тип на паметта RDRAM
Съвместимост с памет честота 1333/1066 MHz
Сървърна дънна платка Не

Изходи

Слот на видеокартата PCI-Express
Интегрирана видеокарта Зависи от процесора
Multi VGA  Няма
Опции на Multi-VGA Няма
D-SUB Да
DVI Не
HDMI Да
DisplayPort Не

Изводи

Брой слотове за памет 2
Брой SATA интерфейси  2
Брой слотове PCI-Express 16x  Няма
PCI-Express 16x 3.0 слотове Няма
PCI-Express 16x 2.0 слотове Няма
Брой слотове PCI-Express 8x Няма
Брой слотове PCI-Express 4x Няма
Брой слотове PCI-Express 1x 1
Брой слотове PCI Няма
Конектор за PWM вентилатори Няма
Конектори за 3-pin вентилатор 2

Портове

SATA 3 интерфейси Няма
SATA 2 интерфейси 2
SATA 1 интерфейси Няма
mSATA интерфейси Няма
m.2 интерфейси Няма
SATA Express интерфейси Няма
Брой USB портове 6
USB 2.0 на задния панел 3
USB 2.0 портове на платката 1
USB 3.0 портове на задния панел 1
USB 3.0 портове на платката Няма
Брой PS/2 външни портове  2
Брой външни портове COM   1
Брой портове LPT  1

Още параметри

Максимален капацитет памет 16 GB
Интегрирана звукова карта Да
Аудио канали 5.1
Цифров аудио изход Няма
Вграден усилвател за слушалки Не
Интегрирана LAN връзка 10/100/1000 Mbit/s
Мрежова карта тип Realtek RTL8111GR
Wireless LAN Не
Bluetooth Не
RAID адаптер  Не
Формат Mini-ATX
Конектор 8-pin ATX 12V Не
Конектор 6-pin ATX 12V Не
Конектор 4-pin ATX 12V Не
Конектор 4-pin MOLEX Не
Охлаждане тип Пасивно

Виждате грешка в описанието или таблицата? Сигнализирайте ни!

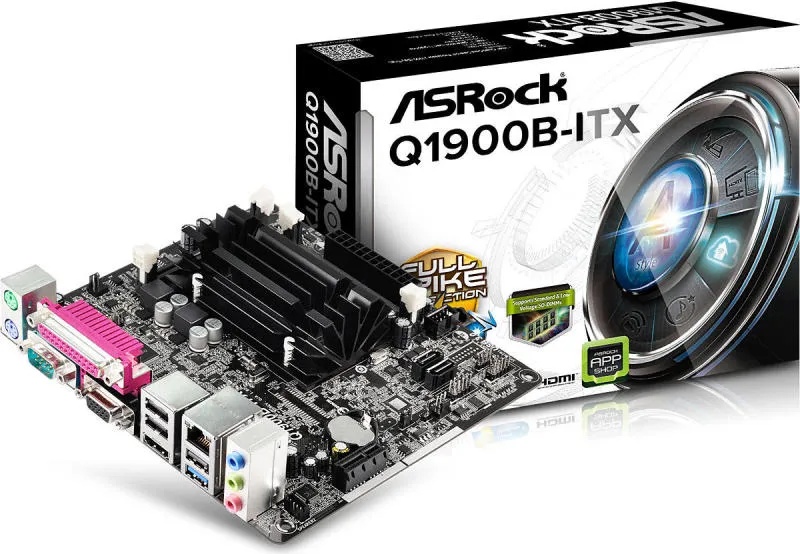

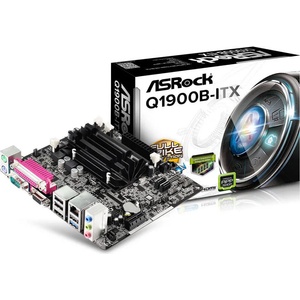

ASRock Q1900B-ITX

- Intel® Quad-Core Processor J1900 + Mini-ITX Motherboard
- Solid Capacitor for CPU power
- Supports DDR3/DDR3L 1333 memory, 2 x SO-DIMM slots
- 1 x PCIe 2.0 x1
- Graphics Output Options : D-Sub, HDMI
- Built-in Intel® 7th generation (Gen 7) graphics, DirectX 11.0, Pixel Shader 5.0
- 1 x Printer Port, 1 x COM Port, 1 x COM Port Header
- 1 x USB 3.0, 5 x USB 2.0 (2 Front, 3 Rear), 2 x SATA2
- Realtek Gigabit LAN
- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
- Supports ASRock Full Spike Protection, A-Tuning, XFast LAN, XFast RAM, USB Key

Product Specifications

General

Unique Feature
- ASRock Full Spike Protection
- ASRock Cloud

CPU
- Intel® Quad-Core Processor J1900 (2 GHz)

Memory

- Dual Channel DDR3/DDR3L Memory Technology
- 2 x DDR3/DDR3L SO-DIMM Slots
- Supports DDR3/DDR3L 1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB*

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

**If only one SO-DIMM module is installed, please install it into DDR3_A1.

BIOS

- 64Mb AMI UEFI Legal BIOS with GUI support
- Supports Plug and Play
- ACPI 1.1 compliant wake up events
- Supports jumperfree
- SMBIOS 2.3. 1 support

Audio, Video and Networking

Graphics

- Intel® 7th generation (Gen 7) graphics
- DirectX 11.0, Pixel Shader 5.0
- Dual graphics output: Support HDMI and D-Sub ports by independent display controllers
- Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 2560x1600 @ 60Hz
- Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with HDMI Port
- Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port

Audio
- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
- Supports Surge Protection (ASRock Full Spike Protection)

LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111GR
- Supports Wake-On-WAN
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE

Expansion / Connectivity

Slots -
1 x PCI Express 2.0 x1 Slot

Storage
- 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

Connector
- 1 x 3W Audio AMP Output Wafer Header
- 1 x COM Port Header
- 1 x TPM Header
- 1 x Chassis Intrusion Header
- 1 x CPU Fan Connector (3-pin)
- 1 x Chassis Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

Rear Panel I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Parallel Port (ECP/EPP Support)
- 1 x Serial Port: COM1
- 1 x D-Sub Port
- 1 x HDMI Port
- 3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x USB 3.0 Port (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone

Other Features / Miscellaneous

Software and BIOS

Software

- ASRock A-Tuning
- ASRock APP Shop
- ASRock USB Key
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Restart to UEFI

UEFI

- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS

Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial)

Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables

Hardware Monitor
- CPU/Chassis temperature sensing
- CPU/Chassis Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor
- Mini-ITX Form Factor
- Solid Capacitor for CPU power
- High Density Glass Fabric PCB

OS
- Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit

Certifications
- FCC, CE, WHQL
- ErP/EuP ready (ErP/EuP ready power supply is required) Продукт известен още и като Q 1900 B ITX, Q1900BITX, Q1900B ITX, Q 1900B-ITX
