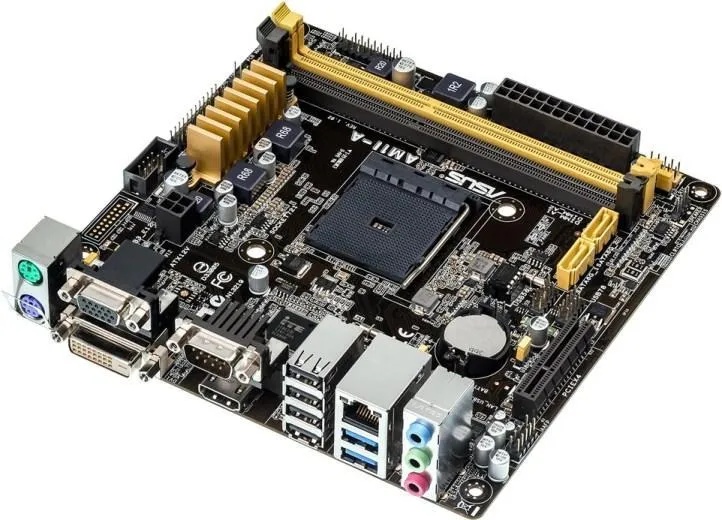

ASUS AM1I-A Дънни платки

Упътване до адрес:
Предложен маршрут:

Още оферти

Марка процесор AMD
CPU Socket  Socket AM1
Чипсет  Няма
Тип на паметта DDR3
Съвместимост с памет честота 1600/1333/1066 MHz
Сървърна дънна платка Не


Слот на видеокартата PCI-Express
Интегрирана видеокарта Зависи от процесора
Multi VGA  Няма
Опции на Multi-VGA Няма
DisplayPort Не


Брой слотове за памет 2
Брой SATA интерфейси  2
Брой слотове PCI-Express 16x  Няма
PCI-Express 16x 3.0 слотове Няма
PCI-Express 16x 2.0 слотове Няма
Брой слотове PCI-Express 8x Няма
Брой слотове PCI-Express 4x 1
Брой слотове PCI-Express 1x Няма
Брой слотове PCI Няма
Конектор за PWM вентилатори 2
Конектори за 3-pin вентилатор Няма


SATA 3 интерфейси 2
SATA 2 интерфейси Няма
SATA 1 интерфейси Няма
mSATA интерфейси Няма
m.2 интерфейси Няма
SATA Express интерфейси Няма
Брой USB портове 10
USB 2.0 на задния панел 4
USB 2.0 портове на платката 2
USB 3.0 портове на задния панел 2
USB 3.0 портове на платката Няма
Брой PS/2 външни портове  2
Брой външни портове COM   1
Брой портове LPT  Няма

Още параметри

Максимален капацитет памет 32 GB
Интегрирана звукова карта Да
Аудио канали 7.1
Звукова карта тип Realtek ALC887-VD
Цифров аудио изход Няма
Вграден усилвател за слушалки Не
Интегрирана LAN връзка 10/100/1000 Mbit/s
Мрежова карта тип Realtek 8111GR
Wireless LAN Не
Bluetooth Не
RAID адаптер  Не
Формат Mini-ITX
Размер на дънната платка 170 x 170
Конектор 8-pin ATX 12V Не
Конектор 6-pin ATX 12V Не
Конектор 4-pin ATX 12V Да
Конектор 4-pin MOLEX Не
Охлаждане тип Пасивно

Виждате грешка в описанието или таблицата? Сигнализирайте ни!

Power-efficient AMD AM1 socket-based Mini-ITXSoC motherboard for compact and entry-level HTPCs, featuring fast USB3.0 transfer speed
  • New UEFI BIOS and EZ Mode: Friendlier, easier, and more intuitive with helpful info added
  • USB 3.0 BOOST (UASP Support): 170% faster transfer speeds than traditional USB 3.0
  • Network iControl: Real-time network bandwidth management
  • CrashFree BIOS 3: Restore corrupted BIOS data from USB storage
  • AI Suite 3: One-stop access to innovative ASUS features
AMD SoC Athlon and Sempron Series APUs Thispowerful and innovative motherboard supports both dual- and quad-coreAMD Athlon and Sempron SoC (system-on-a-chip) APUs integrating RadeonHD graphics and support for HD video playback. This revolutionary APU(Accelerated Processing Unit) combines high processing power, advancedMicrosoft® DirectX 11.1 graphics, and Fusion controller hubs (FCHs) inone small, efficient package. This SoC APU features up to single-channelDDR3 1600/1333 memory, SATA 6Gbit/s and USB 3.0 natively. AMDAthlon/Sempron APUs are the first multi-core x86 SoC with AM1 Seriessocket solution for entry-level desktops, improving performance by over50 percent compared to the previous (‘Brazos 2.0’) generation of AMDAPUs. New UEFI BIOS – friendlier and more intuitiveExclusive EZ Mode adds useful info to become even easier Media-renowned UEFI BIOS from ASUS provides the smoothestmouse-controlled graphical BIOS, and now features more intuitivefunctions to quickly take you to favorite BIOS pages andfrequently-accessed settings through custom shortcuts. You can evenwrite quick notes in-BIOS for future reference, view an activity log ofsetting changes and modifications, and rename SATA ports. EZ Mode has awhole new look, upgraded with extra-friendly capabilities like detailedfan controls, XMP profile settings, SATA information, and fast clockadjustment. Together, these perfect your BIOS experience. USB 3.0 Boost (UASP Support)170% faster transfer speeds than traditional USB 3.0 ASUS USB 3.0 Boost technology supportsUASP (USB Attached SCSI Protocol) in Windows 8. With USB 3.0 Boosttechnology, a USB device's transmission speed is significantly increasedup to 170%, adding to already fast USB 3.0 performance. ASUS softwareautomatically accelerates data rates for compatible USB 3.0 peripheralswithout any user interaction.
  • World’s 1st USB 3.0 UASP support – instantly 170% faster.
  • Complete USB 3.0 solution – performance boost under Turbo Mode or UASP Mode for most USB devices.
  • Simple plug and boost – auto detection design ensures best performance.
4K Ultra HD ReadyDiscover future visual experiences Following up on popular 1080p full HD, 4K Ultra HD is the next bigthing, and you’re ready for the upgrade thanks to integrated graphicsthat natively support up to 4096 x 2160 via HDMI or DisplayPort. That’sfour times the pixel count of 1080p (1920 x 1080), offering incrediblevisual clarity, detail, and realism.

*Please check the specifications of your AMD APU for capabilities. Video playback at 4096 x 2160 pixels may not be guaranteed. AI Suite 3One-stop access to innovative ASUS features ASUS AI Suite 3 offers a brand new user experience through a clearerand more attractive interface with support for larger monitors. Itconsolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy to usefunctionality, with no need to switch back and forth between differentutilities. ASUS Boot SettingMultiple startup options Thanks to ASUS Windows 8 hardware optimization, ASUS Boot Settingprovides better flexibility in customizing your PC’s startup process. You can shorten system boot-up time to 2-seconds* for a smoother userexperience under Windows 8, and even previous versions of Windows. Also, you can enter the BIOS directly with one click through a user-friendlyinterface, and quickly select your preferred system boot up method:either get to the OS in seconds or opt for regular boot up. Whateveryour choice, settings are saved and persistent, with no need to chooseevery time you power on.
*On select models GreenASUS Motherboardsare EU Energy-related Products (ErP) ready, which requires productsmeet high efficiency standards with regards to energy consumption. Thisis in line with the ASUS vision of creating environmentally-friendly andenergy-efficient products through design and innovation that reduce thecarbon footprint of products and thus mitigate ecological impact. CPUAMD Socket AM1 Athlon/SempronProcessors Supports CPU up to 4 cores * Refer to www. asus. com for CPUsupport listChipsetBuild in AMD Sempron & Athlon-Series APUsMemory2 x DIMM, Max. 32GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory Single Channel Memory Architecture Support AMD Memory Profile (AMP) memory * The Max. 32GB memory capacity can be supported with DIMMs of16GB (or above). ASUS will update QVL once the DIMMs are available on themarket.  * Hyper DIMM support is subject to the physicalcharacteristics of individual CPUs.   * Refer to www. asus. com for theMemory QVL (Qualified Vendors Lists).  * Due to OS limitation, when installing total memory of 4GBcapacity or more, Windows® 32-bit operation system may only recognize lessthan 3GB. Install a 64-bit Windows® OS when you want to install 4GB or morememory on the motherboard.  Integrated AMD Radeon R Series Graphics in the APU Multi-VGA output support : HDMI/DVI-D/RGB ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz /1920 x 1080 @ 60 Hz*1 - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 2048 x 1536 @ 60 Hz Maximum shared memory of 2048 MBExpansion Slots1 x PCIe 2.0 x4StorageAMD® Sempron & Athlon-Series APUs :  2 x SATA 6Gb/s port(s), yellowLANRealtek® 8111GR, 1 x Gigabit LAN Controller(s)AudioRealtek® ALC887-VD 8-Channel High Definition Audio CODEC *2 - Supports : Jack-detection, Multi-streaming, Front PanelJack-retaskingUSB PortsAMD® Sempron & Athlon-Series APUs : 2 x USB 3.0/2.0 port(s) (2 at back panel, blue) AMD® Sempron & Athlon-Series APUs : 8 x USB 2.0/1.1 port(s) (4 at back panel, black, 4 atmid-board)Special FeaturesASUS Exclusive Features : - AI Suite 3 - Ai Charger - Anti-Surge - ASUS UEFI BIOS EZ Mode featuring friendly graphics userinterface - Network iControl - USB 3.0 Boost ASUS Quiet Thermal Solution : - ASUS Fan Xpert ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2Operating System SupportWindows® 8.1 , 32bit/64bit Windows® 8 , 32bit/64bit Windows® 7 , 32bit/64bit Windows® XP , 32bitBack I/O Ports1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.0 (blue) 4 x USB 2.0 1 x COM port(s) 3 x Audio jack(s)Internal I/O Ports2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0port(s) 1 x TPM header 1 x LPT header 1 x COM port(s) connector(s) 2 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s)AccessoriesUser's manual I/O Shield 2 x SATA 6Gb/s cable(s)BIOS64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcutfunctions and ASUS DRAM SPD (Serial Presence Detect) memory informationSupport DiscDrivers ASUS utilities ASUS Update Anti-virus software (OEM version)Form FactorMini ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm )Note*1: Please check the specifications of your AMD APU forcapabilities. Video playback at 4096 x 2160 pixels may not be guaranteed.  *2: Use a chassis with HD audio module in the front panel tosupport an 8-channel audio output.
Тегло: 1.000 кг
Продукт известен още и като AM 1 I A, AM1IA, AM1I A, AM 1I-A
