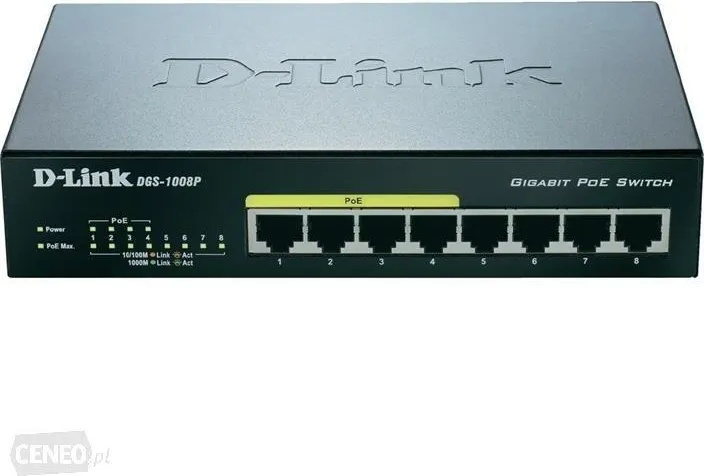

D-Link DGS-1008P Суич, комутатор

Упътване до адрес:
Предложен маршрут:

Още оферти

191,09 лв
Безплатна доставка
В наличност
197,76 лв
Безплатна доставка
до две седмици
Описание
Брой портове 10/100 Mbit/s 8
Управляем (SNMP) Не

Виждате грешка в описанието или таблицата? Сигнализирайте ни!

СтандартиIEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet ANSI/IEEE 802.3 NWay Auto-negotiation IEEE 802.3x Flow Control IEEE 802.1p QoSИнтерфейс8-Port Gigabit Ethernet Power Over Ethernet (PoE)Функции
  • Provides connectivity for devices and applications that require high speed network access and reduce bottlenecks that can interrupt communication. The DGS-1008P also provides the opportunity to add additional Ethernet devices like computers
  • printers
  • and
Приложения
  • Enab les office users the ability to easily connect and supply power to Power over Ethernet (PoE) devices such as IP cameras
  • IP phones
  • and wireless access points (APs) to a network.
LED дисплейPer port: Link/Activity/Speed/PoE Status Per device: Power/PoE MaxСертификатиFCC Class B ICES-003 Class B CE Class B C-Tick Class B VCCI Class B cUL LVDЗахранванеSupplies power to PD: up to 15.4 Watts Total PoE budget: 52 Watts PoE port count/Average PoE watts per port: 4 (Port 1 - 4) / 13 WattsРазмер190 x120 x 38 mmТегло (нето)0.2 kgДругиData Transfer Rates Ethernet 10 Mbps (half duplex) 20 Mbps (full duplex) Fast Ethernet 100 Mbps (half duplex) 200 Mbps (full duplex) Gigabit Ethernet 2000 Mbps (full duplex)Гаранционен срок24 месеца
За повече информация натиснете тук

D-LINK DGS-1008P 8-Port Gigabit Ethernet PoE Switch

Switching Capacity
16 Gbps

Standards
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
ANSI/IEEE 802.3 NWay Auto-negotiation
IEEE 802.3x Flow Control
IEEE 802.1p QoS

POE Features
Supports IEEE 802.3af
Supplies power to PD: up to 15.4 Watts
Total PoE budget: 52 Watts
PoE port count/Average PoE watts per port: 4 (Port 1 - 4) / 13 Watts

Data Transfer Rates
Ethernet
10 Mbps (half duplex)
20 Mbps (full duplex)
Fast Ethernet
100 Mbps (half duplex)
200 Mbps (full duplex)
Gigabit Ethernet
2000 Mbps (full duplex)

Media Interface Exchange
Auto MDI/MDIX adjustment for all ports

Network Cables
10BASE-T:
UTP CAT 3/4/5/5e (100 m max. )
EIA/TIA-586 100-ohm STP (100 m max. )
100BASE-TX, 1000BASE-T:
UTP CAT 5/5e (100 m max. )
EIA/TIA-568 100-ohm STP (100 m max. )

Led Indicators
Per port: Link/Activity/Speed/PoE Status
Per device: Power/PoE Max

Transmission Method
Store-and-forward

MAC Address Table
4K Entries per device

MAC Address Learning
Automatic update

Packet Filtering/Forwarding Rates
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
Gigabit Ethernet: 1,488, 000 pps per port

RAM Buffer
192 KBytes per device

Power Consumption
Power On (Standby):
DC input: 0.48 Watts
AC input: 2.1 Watts
Maximum (PoE Off)
DC input: 4.48 Watts
AC input: 6.2 Watts
Maximum (PoE On)
DC input: 57.83 Watts
AC input: 63.2 Watts

Power Adapter
AC input: 100 to 240 VAC, 50/60 Hz
DC output: DC 48 V/1.25 A (60 Watts)

Operating Temperature
Device: 0 to 50 °C
External Power Adapter: 0 to 40 °C

Storage Temperature
40 to 70 °C

Operating Humidity
0% to 95% RH non-condensing

Storage Humidity
0% to 95% RH non-condensing

Device Dimensions
190 x120 x 38 mm

Certifications
FCC Class B
ICES-003 Class B
CE Class B
C-Tick Class B
VCCI Class B
cUL
LVD

www. dlink. co. uk

$(". hidden-most-info"). hide(); $("#toggle-info"). click(function() $(". hidden-most-info"). toggle();); Продукт известен още и като DGS 1008 P, DGS1008P, DGS 1008P, DGS-1008 P
