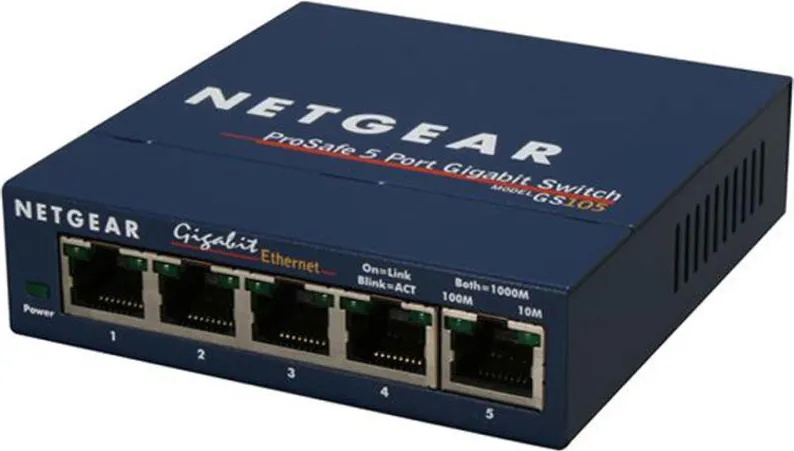

NETGEAR GS105GE Суич, комутатор

Упътване до адрес:
Предложен маршрут:

Още оферти

59,89 лв
Безплатна доставка
В наличност
60,79 лв

В наличност
Описание
Брой портове 10/100/1000 Mbit/s 5
Управляем (SNMP) Не

Виждате грешка в описанието или таблицата? Сигнализирайте ни!

Technical Specifications:

Network Ports
– GS105: 5 auto-sensing UTP ports
– GS108: 8 auto-sensing UTP ports

Forwarding Mode
– Store-and-forward
– GS105: 128 KB on-chip
packet buffering
– GS108: 192 KB on-chip
packet buffering
Performance
– Bandwidth:
GS105: 10 Gbps (non-blocking)
GS108: 16 Gbps (non-blocking)
– Forwarding rate:
- 10 Mbps port: 14,800 packets/sec
- 100 Mbps port: 148,000 packets/sec
- 1000 Mbps port: 1,480, 000 packets/sec
– Latency (using 1500-byte packets):
- 10 Mbps: 30?s (max)
- 100 Mbps: 6?s (max)
- 1000 Mbps: 4?s (max)
– MAC address database: 4,000
– Mean time between failures (MTBF):
>1 million hours (~114 years)

Status LEDs
– System power
– Link, speed, and activity indicators
per port built into each RJ-45 port

AC Power
– Power adapter: 12W, 12V DC, 1A
– Maximum power consumption
GS105: 3.5W
GS108:
- 4.92W (if cable length > 10 m)
- 4.08W (if cable length < 10 m)
Physical Specifications
– Dimensions (w x d x h):
GS105: 94 x 104 x 28 mm
(3.7 x 4.1 x 1.1 in)
GS108: 158 x 105 x 27 mm
(6.2 x 4.1 x 1.1 in)
– Weight: GS105: 0.30 kg (0.66 lb)
GS108: 0.522 kg (1.15 lb)

Environmental Specifications
– Operating temperature: 0? to 50? C
(32? to 122? F)
– Operating humidity: 10% to 90%
non-condensing
– Storage temperature: -20? to 70° C
(-4? to 158? F)
– Storage humidity: 10% to 95%
relative humidity

Standards Compliance
– IEEE 802.3i 10BASE-T Ethernet
– IEEE 802.3u 100BASE-TX Fast Ethernet
– IEEE 802.3ab 1000BASE-T
Gigabit Ethernet
– Honors IEEE 802.1p and DSCP
priority tags
– Jumbo frame: up to 9,720 bytes

Safety Agency Approvals
– C-Tick, CE Mark

Electromagnetic Compliance
– GS105: FCC Class B,
VCCI Class B
– GS108: FCC Class B, VCCI class B,
CE Class B Продукт известен още и като GS 105 GE, GS 105GE, GS105 GE
