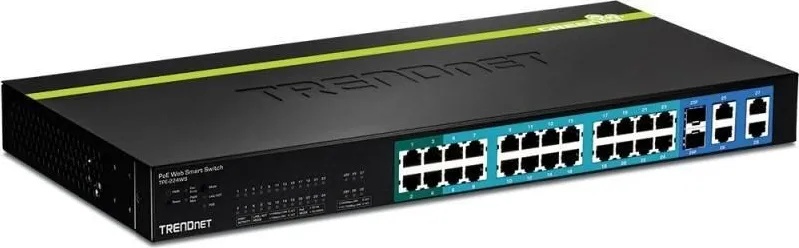

TRENDnet
TPE-224WS

Reduces equipment cost by delivering data and power over existing network cables
24 x PoE 10/100Mbps ports, 4 x Gigabit Auto-MDIX ports and 2 x shared Mini-GBIC slots
12.8Gbps switching capacity with SNMP v1, 802.1X and STP support
Features 802.1Q VLAN, Asymmetric VLAN, QoS, IGMP, Trunking and Mirroring
Up to 15 Watts per port with a 170 Watt total power budget

The 24-Port 10/100Mbps Web Smart PoE Switch with 4 Gigabit Ports and 2 Shared Mini-GBIC Slots (model TPE-224WS) delivers a 12.8Gbps switching capacity with Power over Ethernet (PoE) technology and managed layer 2 features at a reduced cost. Support for SNMP v1, 802.1x, STP, 802.1Q VLAN, QoS, IGMP snooping, Broadcast Storm Control and port Trunking provide a cost effective, scalable and secure backbone PoE switch solution for SMB networks.
Power over Ethernet (PoE) technology reduces equipment and installation costs by delivering data and power over existing Ethernet cables. SNMP support enables the switch to provide valuable status and event information, saving system administrators time and resources. Access the Web-browser management interface and segment up to 256 Virtual Local Area Networks, manage network priority with 802.1p support and dedicate bandwidth with port-based Trunking.

Standard

IEEE 802.3af Power over Ethernet
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000base-T
IEEE 802.3z 1000Base-SX/LX (Mini-GBIC)
IEEE 802.3x Flow Control and Back Pressure
IEEE 802.3ad Port Trunk
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1p QoS
IEEE 802.1Q VLAN Tag
IEEE 802.1X Authentication
SNMP v1

Network Media

Ethernet: UTP/STP Cat. 3, 4, 5 up to 100m
Fast Ethernet: UTP/STP Cat. 5, 5e up to 100m
Gigabit: UTP/STP Cat. 5, 5e, 6 up to 100m
PoE: 4-pair UTP Cat. 5, 5e up to 100m
Protocol / Topology
CSMA/CD, Star

LAN Ports

24 x 10/100Mbps Auto-MDIX PoE ports
4 x 10/100/1000Mbps Auto-MDIX Gigabit ports
2 x 1000Base-SX/LX Mini-GBIC slots (shared with Gigabit ports)

Data Transfer Rate

Ethernet: 10/20Mbps (Half/Full Duplex)
Fast Ethernet: 100/200Mbps (Half/Full Duplex)
Gigabit: 2000Mbps (Full Duplex)

Address Table

8K entries
Switch Fabric
12.8Gbps forwarding capacity

Forwarding Rate

9.5 Mpps
Data RAM Buffer
128KBytes

Power Supply

100~240V AC, 50/60Hz, internal universal power supply
Diagnostic LEDs
Per unit: Power, System
Per port: Link/Activity, Speed
PoE: PoE Status

Power Consumption

26.5 watts (no Powered Device (PD) connected)
170 watts max. power to PoE ports (11 x 15.4 watts PoE PD connected)
196.5 watts max. power total consumption

Dimensions (W x D x H)

440 x 210 x 45 mm (17.3 x 8.27 x 1.75 in. )

Weight

4.4kg (9.75lbs)

Temperature

Operating: 0° ~ 40° C (32° ~ 104°F); storage: -10° ~ 70° C (14° ~ 158°F)

Humidity

10%- 90% (non-condensing); storage: 5% ~ 90% RH (non-condensing)

Certifications

CE, FCC
PoE
Power over Ethernet
Up to 15.4 watts per port; Max 170W for all PoE ports
PD classification Identify; Manual setting for PoE power limitation
Supports PoE priority setting; PoE over current protection and
PoE short circuit protection
RJ-45 PoE power (pin 3,6 for power+ and pin 1,2 for power-) Продукт известен още и като TPE 224 WS, TPE224WS, TPE 224WS, TPE-224 WS
