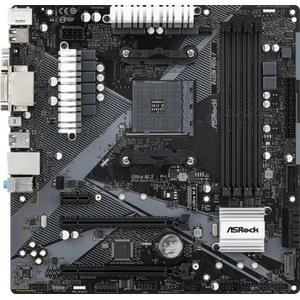

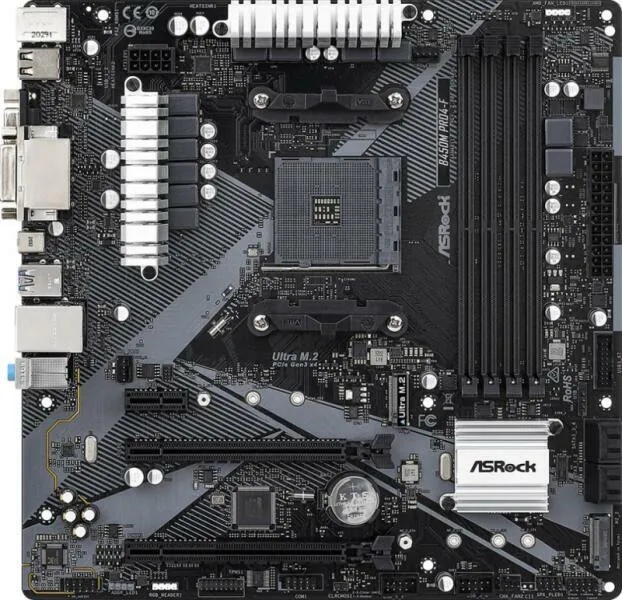

ASRock B450M Pro4-F R2.0

Характеристики

Graphics:- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*; - DirectX 12, Pixel Shader 5.0; - Shared memory default 2GB. Max Shared memory supports up to 16GB. **; - Three graphics output options: D-Sub, DVI-D and HDMI; - Supports Triple Monitor; - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz; - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz; - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz; - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required); - Supports HDCP 1.4 with DVI-D and HDMI 1.4 Ports; - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI 1.4 Ports
CPU's supported:- Supports AMD AM4 Socket Ryzen 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors; - Digi Power design; - 10 Power Phase design
Chipset:- AMD Promontory B450
Expansion Slots:AMD Ryzen series CPUs (Vermeer, Matisse, Cezanne, Renoir, Summit Ridge and Pinnacle Ridge); - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*; - 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode); AMD Ryzen series CPUs (Picasso, Raven Ridge); - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*; - 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode); AMD Athlon series CPUs; - 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)*; - 1 x PCI Express 2.0 x16 Slot (PCIE3: x4 mode); - 1 x PCI Express 2.0 x1 Slot; - Supports AMD Quad CrossFireX and CrossFireX
Storage:- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*; - 1 x Ultra M. 2 Socket (M2_1), supports M Key type 2242/2260/2280 M. 2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Vermeer, Matisse, Cezanne, Renoir, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon series APU)**; - 1 x M. 2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M. 2 SATA3 6.0 Gb/s module
Memory type:- Dual Channel DDR4 Memory Technology; - 4 x DDR4 DIMM Slots; - AMD Ryzen series CPUs (Vermeer) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series APUs (Cezanne) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series APUs (Renoir) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*; - AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory; - Max. capacity
I/O:- 1 x PS/2 Mouse Port; - 1 x PS/2 Keyboard Port; - 1 x D-Sub Port; - 1 x DVI-D Port; - 1 x HDMI Port; - 2 x USB 2.0 Ports (Supports ESD Protection); - 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection); - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection); - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); - HD Audio Jacks: Line in / Front Speaker / Microphone
Connectors:- 1 x COM Port Header; - 1 x TPM Header; - 1 x Power LED and Speaker Header; - 1 x RGB LED Header*; - 1 x Addressable LED Header**; - 1 x AMD Fan LED Header***; - 1 x CPU Fan Connector (4-pin)****; - 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)*****; - 1 x Chassis Fan Connector (3-pin); - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 1 x AMD LED Fan USB Header; - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Audio:- 7.1 CH HD Audio with Content Protection (Realtek ALC892/897 Audio Codec); - Supports Surge Protection
LAN:- PCIE x1 Gigabit LAN 10/100/1000 Mb/s; - Realtek RTL8111GR; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports LAN Cable Detection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE
BIOS:- 128Mb AMI UEFI Legal BIOS with multilingual GUI support; - Supports "Plug and Play"; - ACPI 5.1 compliance wake up events; - Supports jumperfree; - SMBIOS 2.3 support; - DRAM Voltage multi-adjustment
Form Factor:- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - Solid Capacitor design
OS:- Microsoft® Windows® 10 64-bit / 11 64-bit*
Сайт на производителя:https://www. asrock. com/mb/AMD/B450M%20Pro4-F%20R2.0/index. asp#Specification
