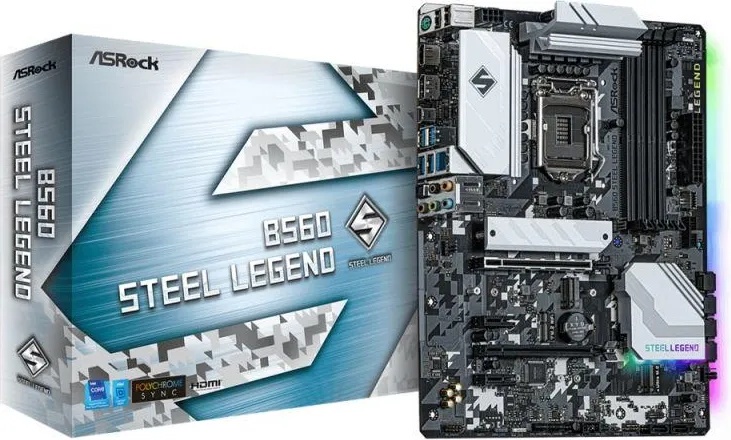

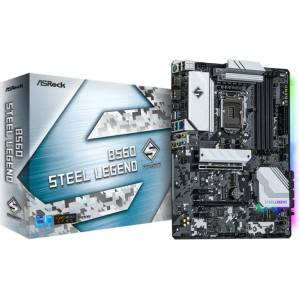

ASRock B560 Steel Legend

Дънна платка ASRock B560 Steel Legend, socket 1200, Polychrome RGB
Tough as Steel True LegendSteel Legend представя философското състояние на устойчивостта на скалите и неустоимата естетика. Изградена около най-взискателните спецификации и функции, серията Steel Legend е подходяща за ежедневни потребители и масови ентусиасти! Осигуряване на силен набор от материали / компоненти, за да се гарантира стабилна и надеждна работа.
Nahimic Аудио - Независимо дали използвате слушалки, външни или вътрешни високоговорители, чрез USB, Wi-Fi, аналогов изход или дори HDMI, Nahimic Audio ви предлага най-завладяващия звук, жизнен и богат на детайли. Dr. MOS - Dr. MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. Premium 60A Power Choke - Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. PCIe 4.0 High Speed M. 2 Solution - This motherboard is capable of accomadating multiple M. 2 storage devices, one of which can even support next generation PCI Express 4.0 M. 2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Supports 10th Gen Intel® Core Processors and 11th Gen Intel® Core Processors
10 Phase Dr. MOS Power Design
Supports DDR4 4800MHz (OC)
1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x11 x M. 2 Key-E for WiFi
Graphics Output Options: HDMI, DisplayPort
7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
6 SATA3, 1 x Hyper M. 2 (PCIe Gen4 x4), 1 x Ultra M. 2 (PCIe Gen3 x4)1 x M. 2 (PCIe Gen3 x2 & SATA3)
1 x Front USB 3.2 Gen2x2 Type-C (20 Gb/s)1 x Rear USB 3.2 Gen2 Type-C (10 Gb/s)6 x USB 3.2 Gen1 (4 x Rear, 2 x Front)
Dragon 2.5 Gigabit LAN
Технически детайли

CPU Socket:1200
Чипсет:Intel B560
Поддържани процесори:Supports 10th Gen Intel® Core Processors and 11th Gen Intel® Core Processors (LGA1200)
Форм фактор:ATX
Поддържана памет:DDR4
Максимален капацитет RAM памет:128 GB
Слотове памет:4
Честота памет:up to 4666+ - 10 Gen Intel® Core Processors, up to 4800+ - 11 Gen Intel® Core Processors
Поддръжка на Dualchannel:Да
Графична карта:Intel UHD Graphics
Вградено аудио:7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Вграден LAN:2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Слотoве PCI-E x16:1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16
Слотoве PCI-E x1:2
Интерфейс Serial ATA:6 x SATA3 6.0 Gb/s
М2 слот:Intel® Optane Technology, 1 x Hyper M. 2 Socket, supports M Key type 2260/2280 M. 2 PCI Express module up to Gen4x4 (64 Gb/s), 1 x M. 2 Socket, supports M Key type 2260/2280 M. 2 SATA3 6.0 Gb/s module and M. 2 PCI Express module up to Gen3 x2 (16 Gb/s), 1 x Ultra M. 2 Socket, supports M Key type 2260/2280/22110 M. 2 PCI Express module up to Gen3 x4 (32 Gb/s)
Поддръжка на RAID:0, 1, 5, 10
Конектор захранване:1 x 24-pin;1 x 8-pin
Видео слот:PCI Express
Свързаност:3 x Antenna Mounting Points; 1 x PS/2 Mouse/Keyboard Port; 1 x HDMI Port; 1 x DisplayPort 1.4; 1 x Optical SPDIF Out Port; 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection); 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection); 2 x USB 2.0 Ports (Supports ESD Protection); 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
USB Type-C:2
USB 3.2:4
USB 2.0:2
Поддържани технологии:ASRock Motherboard Utility (A-Tuning); ASRock Dragon 2.5G LAN Software; ASRock Polychrome SYNC
Други:ASRock EZ Mode; ASRock Full HD UEFI; ASRock My Favorites in UEFI; ASRock Instant Flash; ASRock Internet Flash
