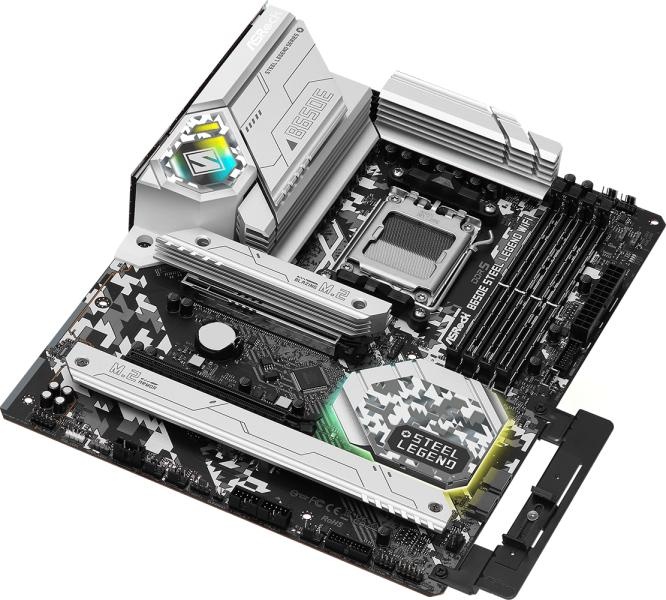

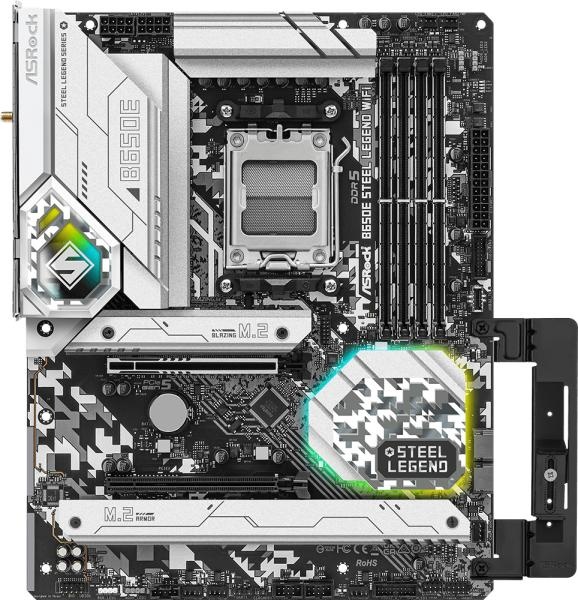

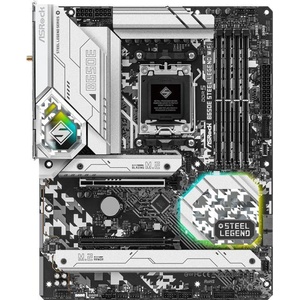

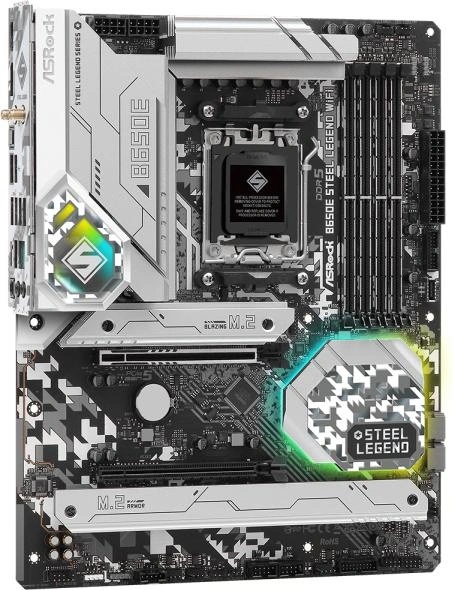

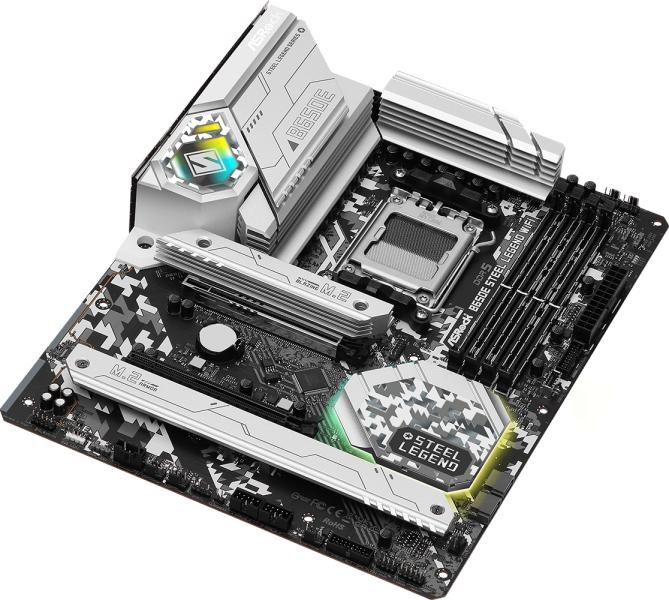

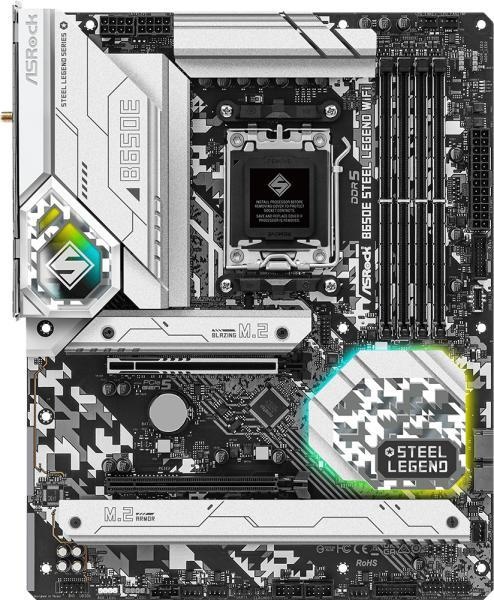

ASRock B650E Steel Legend WiFi

DescriptionB650E Steel Legend WiFi motherboard

• Supports AMD Ryzen 7000 series processors
• 16+2+1 phase power design, SPS
• 4 x DDR5 DIMMs, support up to 6400+(OC)
• 1 PCIe 5.0 x16, 1 PCIe 3.0 x16
• Graphics output options: 1 HDMI, 1 DisplayPort
• 7.1-channel HD audio (Realtek ALC897 audio codec)
• Nahimic Audio
• 1 incredible M. 2 card (PCIe Gen5x4)
• 2 Hyper M. 2 (PCIe Gen4x4)
• 2 SATA3
• 1 USB 3.2 Gen2x2 Type-C port (front)
• 2 USB 3.2 Gen2 Type-A+C ports (back)
• 8 USB 3.2 Gen1 ports (4 rear, 4 front)
• 6 USB 2.0 ports (2 rear, 4 front)
• Realtek 2.5G LAN
• 802.11ax Wi-Fi 6E + Bluetooth

Model:B650E Steel Legend WiFiCPU socket:Socket AM5Processor family:AMD RyzenIntegrated CPU:NoChipset manufacturer:AMDChipset type:AMD B650Memory type:DDR5Number of DDR5 slots:4Memory bus frequency:6400 MHzMax memory size:128 GBExpansion slots:1 x PCIe 3.0 x 16
1 x PCIe 5.0 x 16Max. number of SATA devices:2Max. number of ATA devices:0RAID:YesDetailed data on disk/drive interfaces:CPU:

• 1 x Blazing M. 2 slot (M2_1, Key M), supports 2260/2280 PCIe Gen5x4 (128 Gbps) mode*.

Chipset:

• 1 x Hyper M. 2 slot (M2_2, Key M), supports 2242/2260/2280 PCIe Gen4x4 (64 Gbps)* type.
• 1 x Hyper M. 2 slot (M2_3, Key M), supports 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*.
• 2 SATA3 6.0Gb/s connectors

*Supports NVMe SSD as bootable drives. Supports ASRock U. 2 kitGraphics:AMD RDNA 2 integrated graphics (actual support may vary depending on processor)

• 1 x HDMI 2.1 TMDS/FRL 8G compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Sound card:

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Nahimic Audio

Network interface:1 x 10/100/1000/2500 Mbit/s
Wi-Fi 802.11a/b/g/n/ac/axNetwork interface:

• Wi-Fi 6E 802.11ax module
• Supports IEEE 802.11a/b/g/n/ac/ax
• Supports Dual-Band 2x2 with enhanced 6GHz band support
• 2 antenna diversity support 2 (transmit) x 2 (receive)
• Supports Bluetooth + High Speed Class II
• Supports MU-MIMO

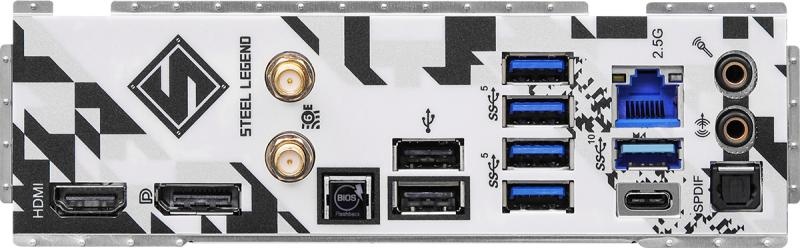

USB ports at back panel:8USB ports on motherboard:8Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports:8Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports:3FireWire (IEEE 1394):NoCOM connector / port:NoLPT connector / port:NoExternal connectors:2 x SMA
1 x S/PDIF
2 x USB 2.0
4 x USB 3.0
1 x USB 3.1
1 x USB 3.1 Type-C
1 x RJ-45
1 x HDMI
1 x Line Out (front)
1 x MIC
1 x Flash BIOS Button
1 x DisplayPortOnboard connectors:1 x Front panel audio header
1 x Thunderbolt header
2 x USB 3.0 header
1 x USB C
2 x 8pin 12V
1 x 24pin ATX zasilanie
2 x USB 2.0/1.1 header
1 x 4pin CPU fan
1 x 4-pin water-pump-fan
1 x TPM headerBIOS:256Mb AMI UEFI Legal BIOS with GUI supportForm factor:ATXDimensions:30.5 x 24.4 cmAccessories included:

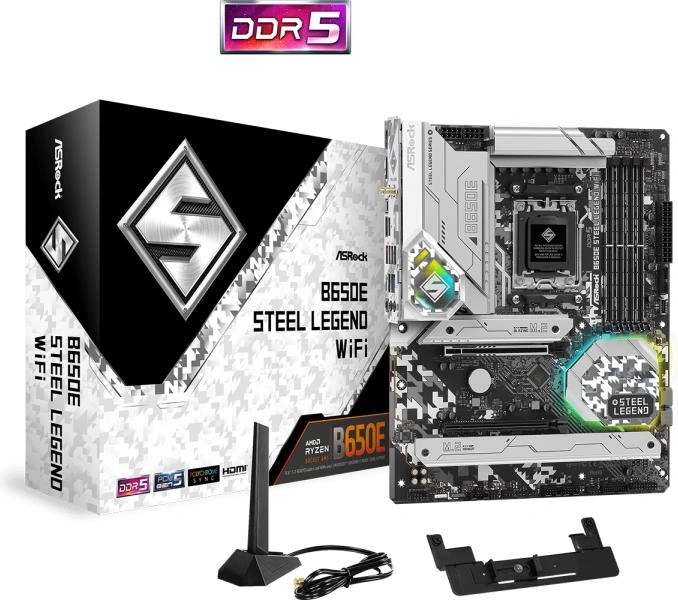

• 1 x User manual
• 2 x SATA data cables
• 1 x ASRock WiFi 2.4/5/6 GHz antenna
• 3 x Screws for M. 2 sockets
• 1 x Bracket for M. 2 socket
• 1 x Graphics card holder

Supported operating systems:Windows 11
Windows 10Software:Software

• ASRock Motherboard Utility (A-Tuning)
• ASRock Dragon 2.5G LAN Software
• ASRock Polychrome SYNC*

UEFI

• ASRock Full HD UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash
