ASRock H81 Pro BTC R2.0 Дънни платки

ASRock H81 Pro BTC R2.0 Дънни платки

Този продукт не присъства сред предлаганите от партньорите ни.
Разгледайте изброените по-долу.
Последно известна цена (09.05.2017): 194,40 лв

Още интересни продукти

Описание
Марка процесорIntel
CPU Socket Socket 1150
Чипсет Intel H81
Тип на паметтаDDR3
Сървърна дънна платкаНе

Изходи

Слот на видеокартатаPCI-Express
Интегрирана видеокартаЗависи от процесора
Multi VGA Няма
D-SUBДа
DVIНе
HDMIДа
DisplayPortНе

Изводи

Брой слотове за памет2
Брой SATA интерфейси 4
Брой слотове PCI-Express 16x 1
PCI-Express 16x 3.0 слотовеНяма
PCI-Express 16x 2.0 слотове1
Брой слотове PCI-Express 8xНяма
Брой слотове PCI-Express 4xНяма
Брой слотове PCI-Express 1x5
Брой слотове PCIНяма

Портове

SATA 3 интерфейси2
SATA 2 интерфейси2
SATA 1 интерфейсиНяма
mSATA интерфейсиНяма
m.2 интерфейсиНяма
SATA Express интерфейсиНяма
Брой USB портове8
USB 2.0 на задния панел2
USB 2.0 портове на платката4
USB 3.0 портове на задния панел2
USB 3.0 портове на платкатаНяма
Брой PS/2 външни портове 2

Още параметри

Максимален капацитет памет16 GB
Интегрирана звукова картаДа
Аудио канали5.1
Цифров аудио изходНяма
Интегрирана LAN връзка10/100/1000 Mbit/s
Wireless LANНе
BluetoothНе
RAID адаптер Не
ФорматATX

Виждате грешка в описанието или таблицата? Сигнализирайте ни!

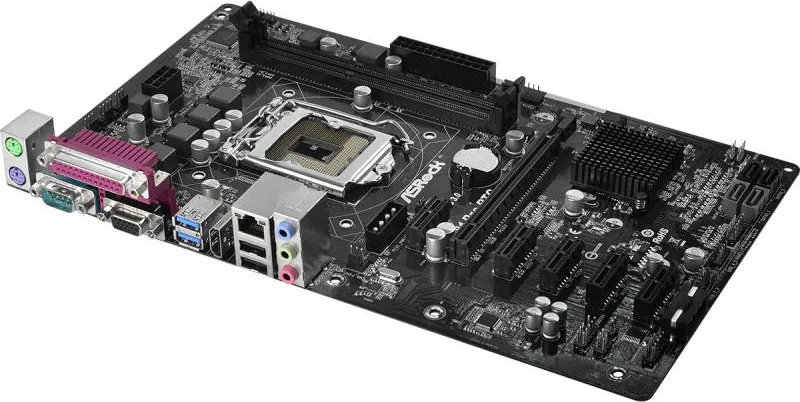

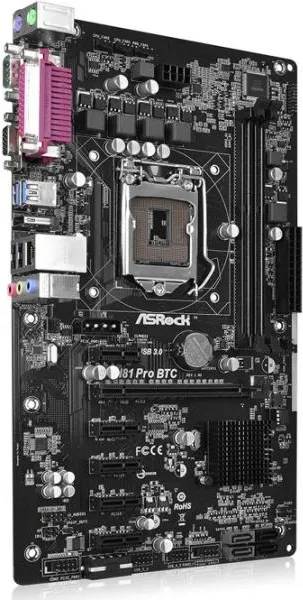

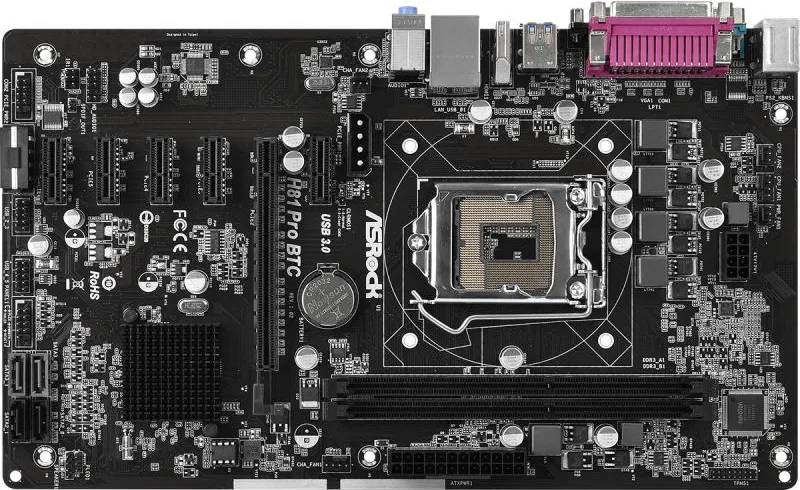

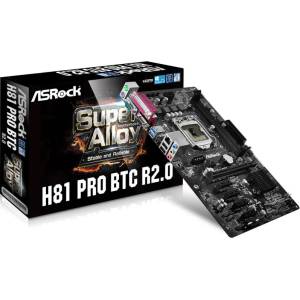

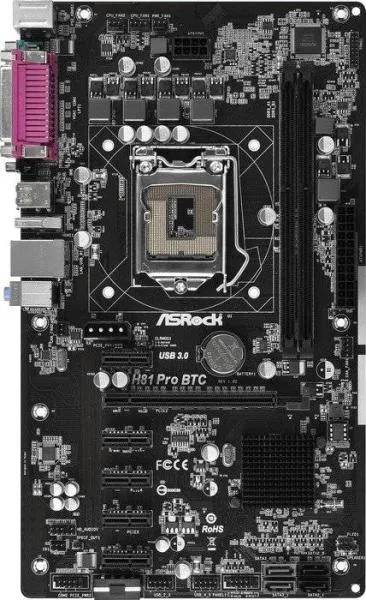

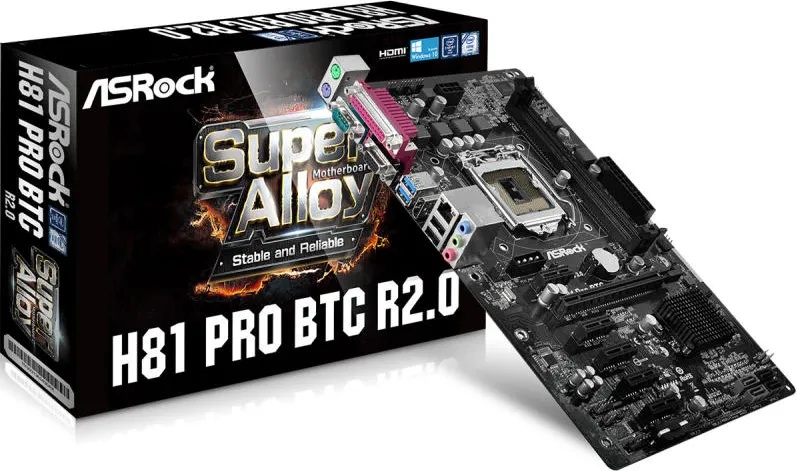

ASRock H81 Pro BTC R2.0

- ASRock Super Alloy
- Supports New 4th and 4th Generation Intel Core i7/i5/i3/Xeon/Pentium/Celeron Processors (Socket 1150)
- All Solid Capacitor design
- Digi Power, 4 Power Phase design
- 1 x PCIe 2.0 x16, 5 x PCIe 2.0 x1
- Graphics output options: D-Sub, HDMI
- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
- 2 x SATA3, 2 x SATA2
- 2 x USB 3.0, 6 x USB 2.0 (4 Front, 2 Rear)
- Realtek Gigabit LAN
- Supports Full Spike Protection, ASRock Live Update & APP Shop

Product Specifications

General

Unique Feature
ASRock Super Alloy
- High Density Glass Fabric PCB
ASRock Full Spike Protection
ASRock Live Update & APP Shop

CPU

Supports New 4th and 4th Generation Intel Core i7/i5/i3/Xeon/Pentium/Celeron Processors (Socket 1150)
- Digi Power design
- 4 Power Phase design
- Supports Intel Turbo Boost 2.0 Technology

Chipset

- Intel H81

Memory

- Dual Channel DDR3 Memory Technology
- 2 x DDR3 DIMM Slots
- Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB*
- Supports Intel Extreme Memory Profile (XMP) 1.3 / 1.2

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS

- 32Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 1.1 Compliant wake up events
- SMBIOS 2.3. 1 support
- CPU, DRAM, PCH 1.05V Voltage multi-adjustment

Audio, Video and Networking

Graphics

- Supports Intel HD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 4400/4600
- Pixel Shader 5.0, DirectX 11.1
- Max. shared memory 512MB**
- Dual Graphics Output: support HDMI and D-Sub ports by independent display controllers
- Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with HDMI Port
- Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port

*Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

**The size of maximum shared memory may vary from different operating systems.

***Due to chipset limitation, the Blu-ray playback of Intel HD Graphics is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit.

****Intel InTru 3D is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit.

Audio

- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
- Supports Surge Protection (ASRock Full Spike Protection)

LAN

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111GR
- Supports Wake-On-WAN
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE

Expansion / Connectivity

Slots
- 1 x PCI Express 2.0 x16 Slot (PCIE2: x16 mode)
- 5 x PCI Express 2.0 x1 Slots

Storage

- 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
- 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

Connector

- 1 x IR Header
- 1 x COM Port Header
- 1 x Power LED Header
- 1 x TPM Header
- 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
- 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)
- 1 x Power Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 2 x PCIe Power Connectors
- 1 x Front Panel Audio Connector
- 1 x SPDIF Out connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

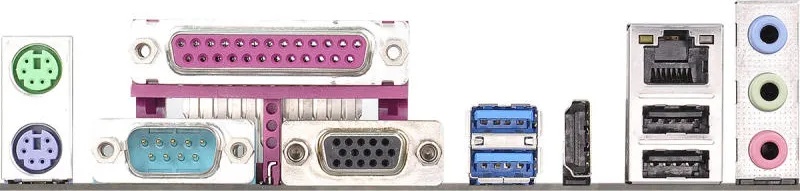

Rear Panel I/O

- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x Parallel Port (ECP/EPP support)
- 1 x D-Sub Port
- 1 x HDMI Port
- 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone
Other Features / Miscellaneous

Software and BIOS

Software

- ASRock USB Key
- ASRock APP Charger
- ASRock XFast LAN
- ASRock Fast Boot (Fast Boot, Restart to UEFI)*

UEFI

- ASRock Interactive UEFI
- ASRock UEFI Guide
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
- ASRock UEFI Tech Service
- ASRock Dehumidifier
- ASRock Easy Driver Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.

Support CD

- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Hardware Monitor

- CPU/Chassis temperature sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

Form Factor

- ATX Form Factor: 12.0-in x 7.0-in, 30.5 cm x 17.8 cm
- All Solid Capacitor design

OS

- Microsoft Windows 10 32-bit / 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit*

*For the updated Windows 10 driver, please visit ASRock's website for details.

Certifications

- FCC, CE, WHQL
- ErP/EuP ready (ErP/EuP ready power supply is required) Продукт известен още и като H 81 Pro BTC R 2 0, H81ProBTCR20, H 81 Pro BTC R2.0, H81 Pro BTC R2. 0
