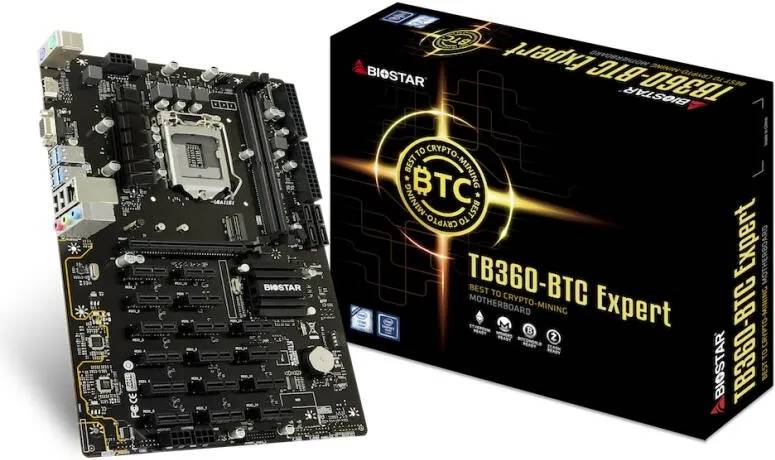

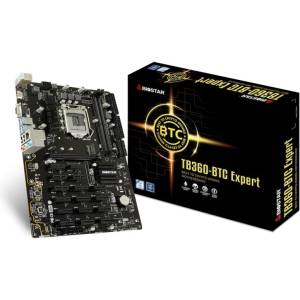

BIOSTAR TB360 BTC Expert

• Supports 9th & 8th Generation Intel® Core Processor
• Intel H370 single chip architecture
• Support 2-DIMM DDR4-1866/2133/2400/2666 up to 32G maximum capacity
• Support 17 x PCI-E 3.0 slots
• Support M. 2 (6Gb/s) Connector
• Support HDMI Connector

ChipsetIntel H370CPU SUPPORT9th Gen Intel® Core i9 LGA 1151 Processor
9th Gen Intel® Core i5 LGA 1151 Processor
9th Gen Intel® Core i3 LGA 1151 Processor
8th Gen Intel® Core i7 LGA 1151 Processor
8th Gen Intel® Core i5 LGA 1151 Processor
8th Gen Intel® Core i3 LGA 1151 Processor
8th Gen Intel® Pentium® LGA 1151 Processor
8th Gen Intel® Celeron® LGA 1151 Processor
Maximum CPU TDP (Thermal Design Power) : 95Watt
8th *Generation Intel® Core Processor Family only support 300-Series.
MEMORYSupport Dual Channel DDR4 1866/ 2133/ 2400/ 2666 MHz
2 x DDR4 DIMM Memory Slot
Max. Supports up to 32GB Memory
Each DIMM supports non-ECC 4/8/16GB DDR4 module
INTEGRATED VIDEOBy CPU model
Supports DX12
Supports HDCP
STORAGE4 x SATA III Connectors (6GB/s)
1 x M. 2 (M Key) Connector(6Gb/s): Support SATA SSD
LANRealtek RTL8111H - 10/100/1000Mb/s Controller
Support Super LAN Surge Protection
AUDIO CODECRealtek ALC887 8-Channel HD Audio
USB6 x USB 3.1 Gen1 Ports (4 on rear I/Os and 2 via internal header)
6 x USB 2.0 Ports (2 on rear I/Os and 4 via internal header)
EXPANSION SLOT1 x PCI-E 3.0 x16 Slot
16 x PCI-E 3.0 x1 Slots
*Maximum VGA cards mining support are depending on VGA Driver or mining software.
REAR I/O1 x PS/2 Mouse
1 x PS/2 Keyboard
4 x USB 3.1 Gen1 Ports
2 x USB 2.0 Ports
1 x HDMI Connector , resolution up to 4096 x 2160@24Hz, compliant with HDMI 1.4
1 x VGA Port , resolution up to 1920 x 1200 @60Hz
1 x LAN Port
3 x Audio Jacks
INTERNAL I/O1 x USB 3.1 Gen1 Header (each header supports 2 USB 3.1(Gen1) ports)
2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
4 x SATA III Connectors (6Gb/s)
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Connector
2 x System Fan Connector
1 x 8-Pin Power Connector
2 x 6-Pin PCIe Power Connector
2 x 24-Pin Power Connector
1 x Clear CMOS Header
1 x COM Port Header
H/W MONITORINGCPU / System Temperature Monitoring
CPU / System Fan Monitoring
System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
DIMENSIONATX Form Factor Dimension: 30.5cm x 21.0cm ( W x L )
OS SUPPORTSupports Windows 10(64bit)
※Biostar reserves the right to add or remove support for any OS with or without notice.
BUNDLE SOFTWAREBullGuard
ACCESSORIES2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x User Manual
FEATURESSupports 100% Solid capacitor
PCI-E Slot Detection BIOS Boot Screen
