MSI MPG Z590 Gaming Edge Wifi

Допълнителни снимки на продукта:

Снимка 1 Снимка 2 Снимка 3
MSI MPG Z590 GAMING EDGE WIFI

Graphics: 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz1/ 2; 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz1/ 2
CPU's supported: Supports 10th Gen Intel® Core Processors, 11th Gen Intel® Core Processors, Pentium® Gold and Celeron® Processors 1; Processor socket LGA1200
Chipset: Intel® Z590 Chipset
Expansion Slots: 3x PCIe x16 slots; Support x16/x4/x4; PCI_E1 (From CPU); Supports up to PCIe 4.0 for 11th Gen Intel® CPU; Supports up to PCIe 3.0 for 10th Gen Intel® CPU; PCI_E3 & PCI_E5 (From Z590 Chipset); Support up to PCIe 3.0; 2x PCIe 3.0 x1 slots (From Z590 Chipset)
Storage: 6x SATA 6Gb/s ports (From Z590 Chipset); 3x M. 2 slots (Key M); M2_1 slot (From CPU); Available only on 11th Gen Intel® CPU; Supports PCIe 4.0 x4; Supports 2242/ 2260/ 2280/ 22110 storage devices; M2_21 & M2_32 slot (From Z590 Chipset); Support up to PCIe 3.0 x4 and SATA 6Gb/s; Supports 2242/ 2260/ 2280 storage devices; Intel® Optane Memory Ready3; Supports Intel® Smart Response Technology for Intel® Core processors
Memory type: 4x DDR4 memory slots, support up to 128GB1; Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR); Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR); Max overclocking frequency: 1DPC 1R Max speed up to 5333 MHz; 1DPC 2R Max speed up to 4700+ MHz; 2DPC 1R Max speed up to 4400+ MHz; 2DPC 2R Max speed up to 4000+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile (XMP)

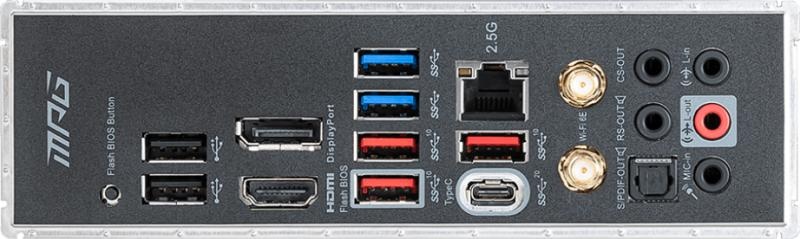

I/O: DisplayPort; USB 3.2 Gen 1 5Gbps Type-A; 2.5G LAN; Wi-Fi/Bluetooth; Audio Connectors; Flash BIOS Button; USB 2.0; HDMI; USB 3.2 Gen 2 10Gbps Type-A; USB 3.2 Gen 2x2 20Gbps Type-C; Optical S/PDIF Out
Connectors: 1x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connectors; 1x 6-pin PCIE power connector; 6x SATA 6Gb/s connectors; 3x M. 2 slots (M-Key); 1x USB 3.2 Gen 2 10Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin water-pump fan connector; 6x 4-pin system fan connectors; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x Clear CMOS jumper; 1x TPM module connector; 1x TBT connector (supports RTD3)
Audio: Realtek® ALC4080 Codec; 7.1-Channel High Definition Audio; Supports S/PDIF output
LAN: 1x Intel® I225V 2.5Gbps LAN controller
Form Factor: ATX Form Factor; 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
OS: Support for Windows® 10 64-bit
Other: Intel® Wi-Fi 6E AX210; The Wireless module is pre-installed in the M. 2 (Key-E) slot; Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz1 (160MHz) up to 2.4Gbps; Supports 802.11 a/ b/ g/ n/ ac/ ax; Supports Bluetooth 5.22, FIPS, FISMA
Warranty: 36 Months



.
