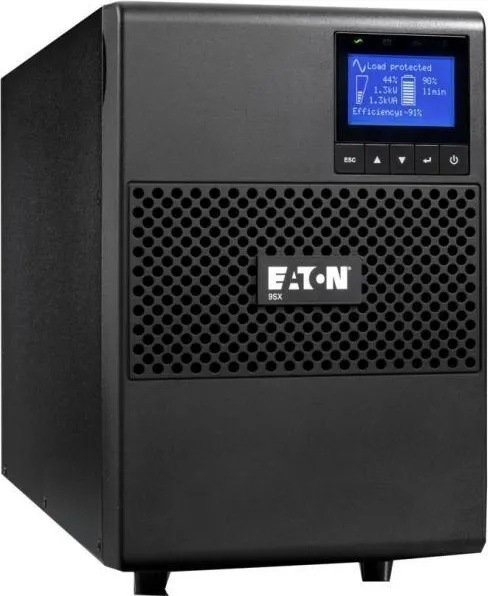

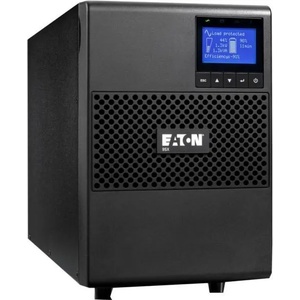

Eaton 9SX 700i (9SX700I)

Eaton 9SX 700I

General

Teknologi On-line double conversion with PFC (Power Factor Correction) system

Configuration Tower

Part Number 9SX700I

Rating (VA/Watts) 700/630

Dimensions (H x W x D, mm) 252 x 160 x 357

Electrical Input

Connection

(1) IEC-320-C14

IEC C14

Input Voltage Range 190-276V without derating (up to 120–276V with derating)

Spænding 200/208/220/230/240V

Frequency 50/60 Hz autoselection

Frequency Range 40-70 Hz

Electrical Output

Output Receptacles

(6) IEC-320-C13

IEC C13

Output Frequency 50/60 Hz autoselect, frequency converter as standard

Battery

Runtime

(Minutes)

Standard Runtime

Load (Watts)Battery runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc. Actual runtime may vary from +/- 15% around these typical values

Load (Watts):

Standard Runtime:

Battery Management ABM® and Temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units.

Extended Battery Capability EBM

Communications

User Interface Multilingual graphical LCD display

Communication Ports 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay

Communications Slot 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards

Environmental and safety

Audible Noise
