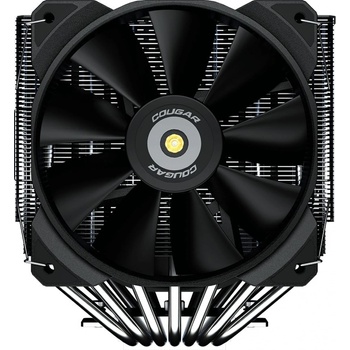

COUGAR Forza 135 (CG3MFZ1350001)

Cougar Forza 135

Strength Screams…but Power Whispers

For enthusiasts and gamers seeking to push their systems to the limit, the Forza 135 offers an exceptional balance of ultra-silent operation and powerful cooling as a dual tower air cooler for high-level CPUs. Its front cover is uniquely designed and it is equipped with COUGAR’s high-performance fans, the MHP140-A and MHP120.





The Two Towers

Equipped with two high-performance fans, the MHP140-A and MHP120, the dual tower heatsink features two sets of heatsink towers for maximum cooling capacity. Its unique design boasts a wider cooling area, swiftly dissipating hot air to ensure the CPU operates at peak efficiency.





Not Just A Pretty Face

The Forza 135 air cooler is fitted with an elegant cap decoration which not only ornaments the design, but also prevents oxidation of the heat pipe





Hyperdrive Cooling

Forza 135 is equipped with COUGAR MHP140-A and MHP120 high-performance fans. Both fans have durable metallic-reinforced motor hub & metal bearing shell design, providing high airflow & high static pressure to achieve an optimum balance between ultra-silent operation and extremely cooling. They are perfect partners for Forza 135 that deliver outstanding performance.





The Wind Tunnel Effect

For even greater heat dissipation efficiency, the Forza 135 features a unique 90-degree flip shape on both ends of the heatsink fins. This closed-space design creates an air tunnel that blocks airflow from the sides of the radiator, generating differing air pressure on each side of the Forza 135. This pressure differential significantly enhances airflow through the fins, maximizing cooling efficiency.



Specifications

CPU Socket
Intel Socket LGA 115X / 1366 / 1200 / 1700 / 2011 / 2066 (Core i3 / i5 / i7 / i9 CPU)

AMD AM5 / AM4 / FM2 / FM1 / AM3+ / AM3 / AM2+ / AM2 CPU

Heatsink

CPU touched base
Copper base with nickel plated

Heat pipe diameter
6 mm

Heat pipe number
7 units

Heat pipe finish
Copper with nickel plated

Craftsmanship
Reflow

Dimension (WxDxH)
128 x 140 x 160mm

Weight w/o Fan
1041 g

Weight Incl. Fan
1391 g

Fans

Fan Model
MHP120
MHP140-A

Dimensions (WxDxH)
120 x 120 x 25 mm
140 x 140 x 25 mm

Fan Speed
600-2000 RPM±200RPM
500-1500 RPM±150RPM

Air Flow
82.48 CFM / 143.53 m3/h (± 10%)
72.93 CFM / 123.9 m3/h (± 10%)

Air Pressure
4.24 mm H2O±10%
2.11 mm H2O±10%

Acoustic Noise
31.68 dB(A) (Max. )
38.5 dB(A) (Max. )

Rated Voltage
12 VDC
12 VDC

Rated Current
0.23 A
0.18 A

Power Consumption
2.76 W ± 10%
2.16 W ± 10%

Bearing Type
HDB Hydro Dynamic Bearing
HDB Hydro Dynamic Bearing

Cable Length
200 mm
200 mm

Connector & Control
4 Pin PWM
4 Pin PWM
