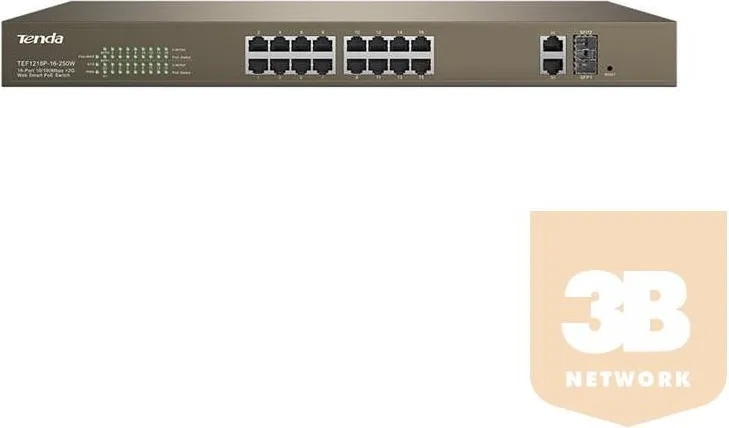

Tenda TEF1218P-16-250W
Dedicated for Surveillance & SMB Networking
Due to smart web management, engineering is so simpleTenda Gigabit smart PoE switch TEF1218P-16-250W, with intelligent web network management functions, provides a more intuitive and user-friendly interface. It supports 250 meters long distance power supply, QVLAN, link aggregation, QoS, MAC address binding, etc. , which greatly reduces construction difficulty and saves time, maximizing cost savings for engineerings.
GE & SFP uplink ports,Large Buffer of Nearly 3MWith one 10/100/1000 Mbps combo SFP slot, the switch can meet the current demand for uplink bandwidth of Gigabit WLAN and HD digital surveillance. Working with Tenda optical fiber module TEG311SM, the switch supports a maximum transmission distance up to 20km.
6KV Excellent Lightning ProtectionThe switch offers various safety and protection types, including 6 kV lightning protection, PSE short-circuit protection, PoE overload protection, surge current protection etc. , and these greatly protect the switch from being damaged by thunderstorm. Besides, it supports wide voltage input, AC:100-240V~50/60Hz.
Up to 250 meters long distance transmission under the Extend Mode beyond hundred meters transfer limitationDue to the complex monitoring environment, the distance from each terminal to the monitoring center is different, some even more than hundred meters. TEF1218-16-250W can support 250 meters long distance transmission, which can save the cost of your project with less devices used.
230 W PoE power supplyThe switch features 16 RJ45 ports being compliant with IEEE 802.3af/at standard. The entire switch offers a maximum PoE power output of 230 W, and 30 W for a single port, to supply power to data transmission with 16 PoE-devices such as APs and IP cameras.
Specifications:
Hardware Features
Standards IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x,
IEEE802.1p, IEEE802.1q, IEEE802.1w, IEEE802.3af/at
LEDs indicator
16 * Link/Act LEDs
1 * G1 LED
1 * G2/SFP2 LED
1 * PoE-MAX LED
1 * Power LED
1 * SYS LED
Interfaces
16 * 10/100 Mbps Base-TX RJ45 ports (Data/Power)
2 * 10/100/1000 Mbps Base-T RJ45 ports (Data)
1 * 10/100/1000 Mbps Base-X SFP port (Combo)
Forwarding Rates
5.36 Mpps
Switching capacity
7.2 Gbps
MAC Address Table
4K
Lightning protection
≥6KV
Input voltage
AC: 100-240V~50/60Hz
PoE supply
Ports 1-16 support standard IEEE802.3af/at
30W output per PoE port
230W output of the total PoE Power
Power consumption 250W output the whole device
Dimensions 440*178.8*44mm
Operating Temperature: 0℃~45℃ (32℉~113℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Software Features
PoE management Support over temperature protection for PoE module
Support graphical management
detection of PD equipment
