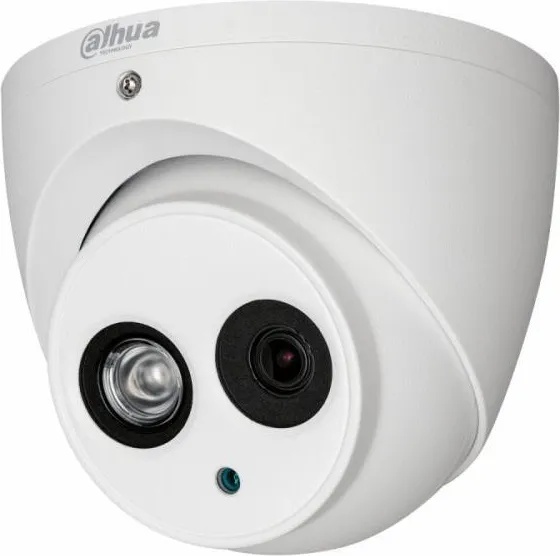

Dahua HAC-HDW1400EM-A-POC-0280B   Technical Specification:
Camera
Image Sensor1/2.7" CMOS
Effective Pixels
2560(H)x1440(V), 4MP
Scanning System Progressive
Electronic Shutter Speed
PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s
Minimum Illumination0.03Lux/F2.0, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 50m (164feet)
IR On/Off Control Auto / Manual
IR LEDs1
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length3.6mm (2.8mm, 6mm Optional)
Max ApertureF2.0
Angle of View
H: 76.4° (97°/48.6°)
V: 41.6° (52°/27.9°)
Focus Contro N/A
Close Focus Distance
1400mm (800mm/2500mm)
55.1'' (31.5''/98.4'')
DORI Distance
25px/m
(8px/ft)
2.8mm: 56m(184ft)
3.6mm: 80m(262ft)
6mm: 120m(394ft)
Observe
63px/m
(19px/ft)
2.8mm: 22m(73ft)
3.6mm: 32m(105ft)
6mm: 48m(157ft)
Recognize
125px/m
(38px/ft)
2.8mm: 11m(37ft)
3.6mm: 16m(52ft)
6mm: 24m(79ft)
Identify
250ppm
(76px/ft)
2.8mm: 6m(18ft)
3.6mm: 8m(26ft)
6mm: 12m(39ft)
Pan / Tilt / Rotation
Pan/Tilt/Rotation
Pan: 0° ~ 360°
Tilt: 0° ~ 78°
Rotation: 0° ~ 360°
Video
Resolution4MP (2560x1440)
Frame Rate25/30fps@4MP, 25/30fps@1080P

Video Output
1-channel BNC high definition video output / CVBS
video output (Can switch)
Day/NightAuto (ICR) / Manual
OSD MenuMulti-language
BLC ModeBLC / HLC / DWDR
WDRDWDR
Gain ControlAGC
Noise Reduction2D
White BalanceAuto / Manual
Smart IRAuto / Manual

Interface
Audio Interface Built-in mic
Eelectrical
Power Supply12V DC ±30%
Power Consumption Max. 3.9W (12V DC, IR on)
Environmental
Operating Conditions
-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
* Start up should be done at above -40°C (-40°F)
Storage Conditions-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Ingress Protection & Vandal
Resistance
IP67
Construction
Casing Aluminium
DimensionsΦ106mmx93.7mm (Φ4.17"x3.69")
Net Weight0.41kg (0.90lb)
Gross Weight0.51kg (1.12lb)
