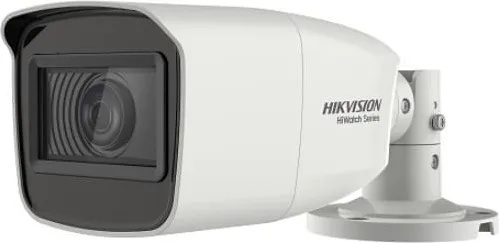

HWT-B323-Z

• 2 MP high-performance CMOS


• Ultra low light


• 1920 × 1080 resolution


• 2.7 mm to 13.5 mm vari-focal lens


• OSD menu, 3D DNR, 120 dB true WDR, day/night switch


• EXIR 2.0, smart IR, up to 70 m IR distance


• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)


• IP66



Camera

Appearance
Bullet

Image Sensor
2 MP CMOS image sensor

Signal System
PAL/NTSC

Video Frame Rate
PAL: 1080p@25fps

NTSC: 1080p@30fps

Effective Pixels
1920 (H) × 1080 (V)

Min. illumination
0.005 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time
PAL: 1/25 s to 1/50, 000 s

NTSC: 1/30 s to 1/50, 000 s

Lens
2.7 mm to 13.5 mm

Angle of view
102.4° to 31°

Lens Mount
Φ14

Day & Night
IR cut filter

Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

Synchronization
Internal synchronization

WDR (Wide Dynamic Range)
120 dB

Menu

AGC
High/Medium/Low

D/N Mode
Auto/Color/BW (Black and White)

HLC
Support

BLC
Support

WDR
Support

Language
English

Functions
Brightness, Sharpness, 3D DNR , Mirror, Smart IR

Interface

Video Output
1 HD analog output

Switch Button
TVI/AHD/CVI/CVBS

General

Operating Conditions
-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)

Power Supply
12 VDC ±25%

Power Consumption
Max. 7.7 W

Protection Level
IP66

Material
Metal

IR Range
Up to 70 m

Dimensions
256.4 mm × 83.3 mm × 78.2 mm (10" × 3.2" × 3")

Weight
Approx. 720 g (1.59 lb. )
