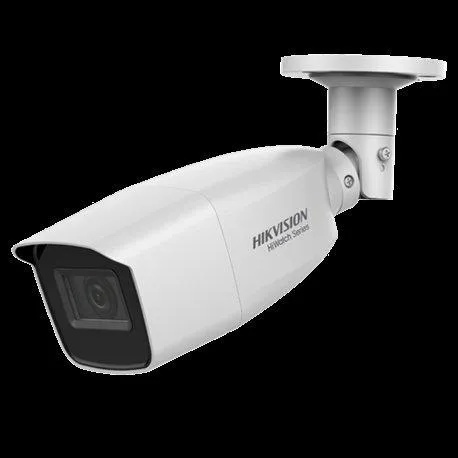

HWT-B340-VF

• 4 MP high-performance CMOS


• 2560 × 1440 resolution


• 2.8 mm to 12 mm vari-focal lens


• Day/Night switch


• EXIR 2.0, smart IR, up to 40 m IR distance


• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)


• IP66





Camera

Appearance
Bullet

Image Sensor
4 MP CMOS image sensor

Signal System
PAL/NTSC

Video Frame Rate
PAL: 4 [email protected], 4 MP@25fps, 1080p@25fps

NTSC: 4 MP@15fps, 4 MP@30fps, 1080p@30fps

Effective Pixels
2560 (H) × 1440 (V)

Min. illumination
0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time
1/25 (1/30) s to 1/50,000 s

Lens
2.8 mm to 12 mm

Angle of view
108.4° to 32.6°

Lens Mount
Φ14

Day & Night
IR cut filter

Angle Adjustment
Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

Synchronization
Internal synchronization

Menu

AGC
High/Medium/Low/Off

D/N Mode
Auto/Color/BW (Black and White)

BLC
Support

WDR
DWDR

Language
English

Functions
Brightness, Sharpness, DNR, Mirror, Smart IR

Interface

Video Output
1 Analog HD output

Switch Button
TVI/AHD/CVI/CVBS

General

Operating Conditions
-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)

Power Supply
12 VDC ±15%

Power Consumption
Max. 5.2 W

Protection Level
IP66

Material
Front cover: Metal

Main body: Plastic

Bracket: Metal

IR Range
Up to 40m

Dimensions
256.4 mm × 83.3 mm × 78.2 mm (10" × 3.2" × 3")

Weight
605 g (1.33 lb. )
