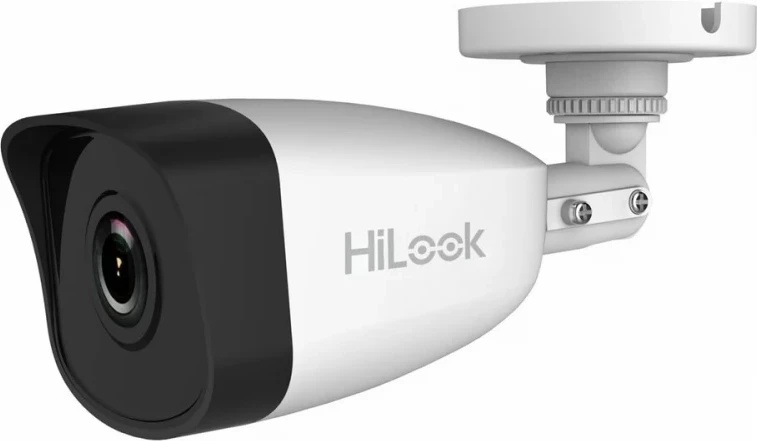

Hikvision IPC-B121H(2.8mm)

Specs:
Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100, 000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

Lens
Focal Length & FOV
2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2°
Lens Mount M12
Focus Fixed
Aperture F2.0
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Iris Type Fixed

Illuminator
Supplement Light Type IR
Supplement Light Range Up to 30 m
IR Wavelength 850 nm
Smart Supplement Light Yes

Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)

Video Compression
Main stream: H. 265/H. 264/H. 264+/H. 265+
Sub-stream: H. 265/H. 264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H. 264 Type Baseline Profile/Main Profile/High Profile
H. 265 Type Main Profile
Region of Interest (ROI) 1 fixed region for main stream

Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View Up to 6 channels
APIOpen Network Video Interface, ISAPI
User/Host Up to 32 users. 3 levels: administrator, operator and user
Client iVMS-4200, Hik-Connect
Web Browser

Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+

Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement BLC, 3D DNR

Interface
Ethernet Interface 1x RJ45 10 M/100M self-adaptive Ethernet port

Event
Basic Event Motion detection, video tampering alarm, exception
Linkage Upload to FTP, notify surveillance center, send email

General
Power
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Dimension186.3 mm × 71.4 mm × 66.7 mm
Package Dimension216 mm × 121 mm × 118 mm
WeightApprox. 270 g
With Package Weight Approx. 490 g
Storage Conditions-30 °C to 60 °C. Humidity: 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C. Humidity: 95% or less (non-condensing)
Language English, Ukrainian
General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Protection IP67 (IEC 60529-2013)


Продукт известен още и като IPC B 121 H 2 8 mm, IPCB121H28mm, IPC B121H(2.8mm), IPC-B121H28mm, IPC-B121H(2.8 mm)
