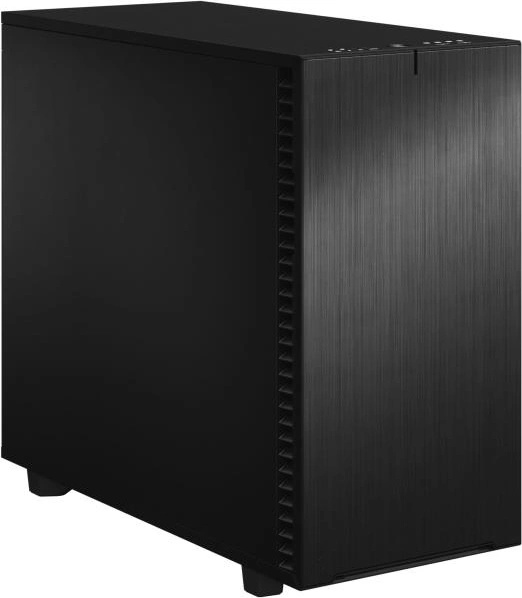

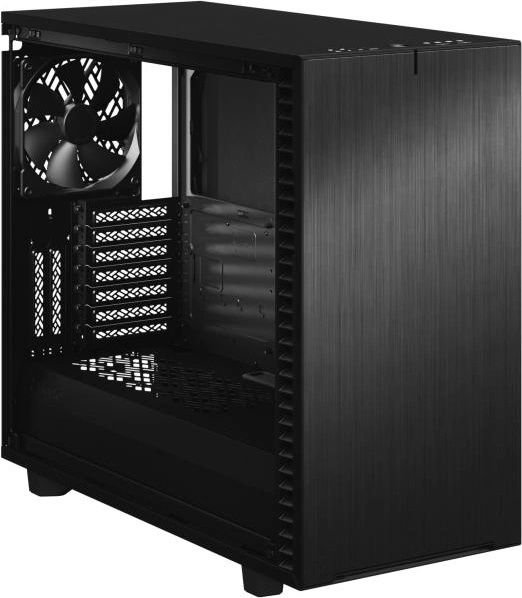

Define 7 Re-defining versatility. The Define 7 is the latest pinnacle of the renowned Define series, setting anew standard for what you should expect from a mid-tower case when itcomes to modularity, flexibility and ease of use. The dual-layout interior, industrial sound damping, and classic styling make it an easy choice for anydesign-conscious PC builder in need of a versatile and dependable case thataccommodates ambitious builds and leaves you room to grow

  Keyfeatures

• Spacious and extensively adaptable dual-layout interior easily accommodates large motherboards up to and including 285 mm E-ATX
• Support for radiators up to 360 mm in front, 420 mm up top, or 280 mm in the base in the default Open Layout
• Convert to Storage Layout for up to 14 HDDs along with 4 dedicated SSD mounts and one ODD bay (6 HDD/SSD + 2 SSD brac
• The single 5.25 ODD bay can be converted to an additional 140 mm front fan mount with filtered louver covering
• Silence-optimized construction with industrial sound-damped front, top, and side panels
• Top panel effortlessly swaps from sound-damped solid steel to filtered ventilation

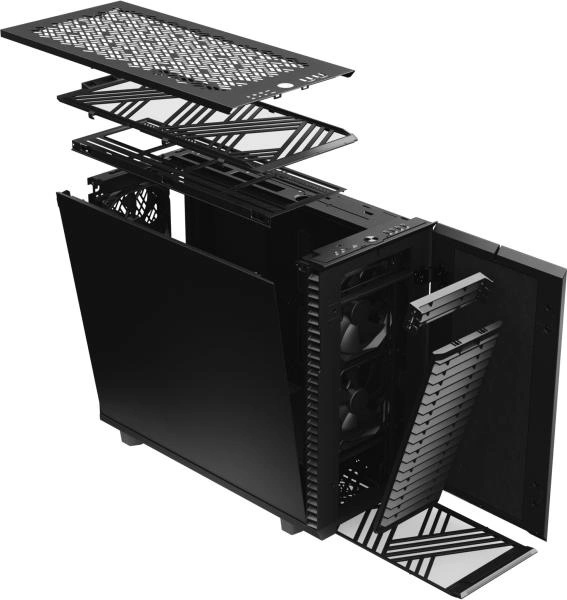

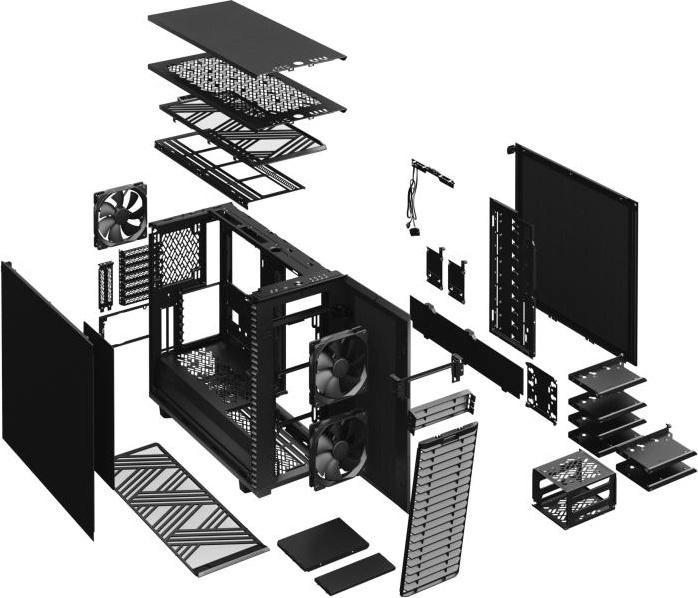

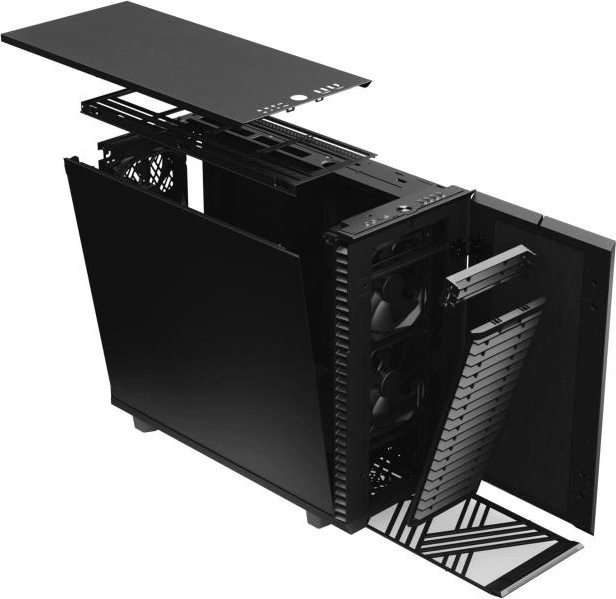

• New chassis design opens up to fully expose the case interior for totally unhindered installation and cable routing
• Anodized aluminum front panel with reversible dual-handed hinges opens and closes easily with magnetic latching
• Outstanding cooling capacity with a total of 9 x 120/140 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
• Versatile new multi-brackets convert any unused fan position to an HDD, SSD or pump mount
• Two vertical GPU slots for use with the Flex VRC-25 PCIe riser, available separately
• Five front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
• Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans directly in line with cable channels alo
• Redesigned HDD cage for easier installation and improved transportation security
• Tool-less, top-latching panels allow quick access while preventing accidental drops

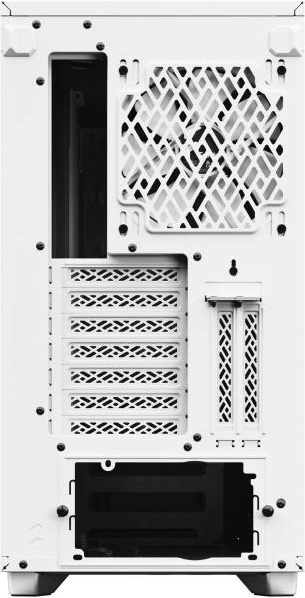

• Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup
• Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support
• Easy-to-clean high airflow nylon filters on the front, top and base with full PSU coverage and convenient front acces
• Detachable PSU cable shield and integrated cable guides with Velcro straps further simplify cable management behind the board

       General Specifications 3.5"/2.5" drive mounts:  6 included, 14 positions total Dedicated 2.5" drive mounts:  2 trays included, 4 positions total 5.25 drive mounts:  1 Expansion slots:  7 + 2 Motherboard compatibility:  E-ATX (max 285 mm) / ATX / mATX / mITX Power supply type:  ATX Front interface:  1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button Total fan mounts:  9 x 120/140 mm Front fan:  3 x 120/140 mm (2 x Dynamic X2 GP-14 included) Top fan:  3 x 120/140 mm Rear fan:  1 x 120/140 mm (1 x Dynamic X2 GP-14 included) Bottom fan:  2 x 120/140 mm Dust filters:  Top, 2 x front, full length bottom Front radiator:  Up to 360/280 mm Top radiator:   Up to 360/420 mm Rear radiator:  120 mm Bottom radiator:  Up to 240/280 mm PSU max length:  250 mm (with HDD cage installed) GPU max length:  torage layout: 315 mm, Open layout: 491 mm (467 mm w/ front fan  CPU cooler max height:  185 mm Cable routing space:  30 mm Cable routing grommets:  Yes Fixed velcro straps:  Yes Tool-less push-to-lock:  Both side panels and top Captive thumbscrews:  HDD brackets, SSD brackets, PSU bracket Left side panel:  Industrial sound-damped steel or Tempered glass Right side panel:  Industrial sound-damped steel Case dimensions (LxWxH):  547 x 240 x 475 mm Case dimensions w/o feet/protrusions/screws:  533 x 240 x 451 mm Net weight:  TG: 13.45 kg/Solid: 13.49 kg Package dimensions (LxWxH):  558 x 363 x 641 mm Gross weight:  TG: 15.94 kg/Solid: 15.98 k

Продукт известен още и като Define 7 Black FD C DEF 7 A 01, Define7BlackFDCDEF7A01, Define 7 Black (FD C DEF7A 01), Define7BlackFD-C-DEF7A-01, Define 7 Black (FD-C-DEF7A 01)

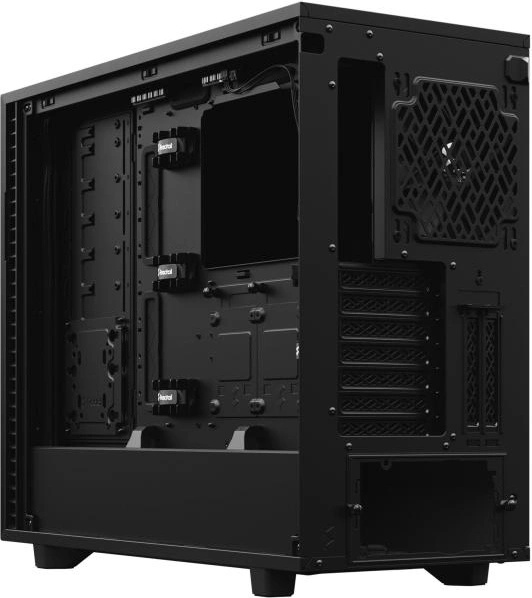

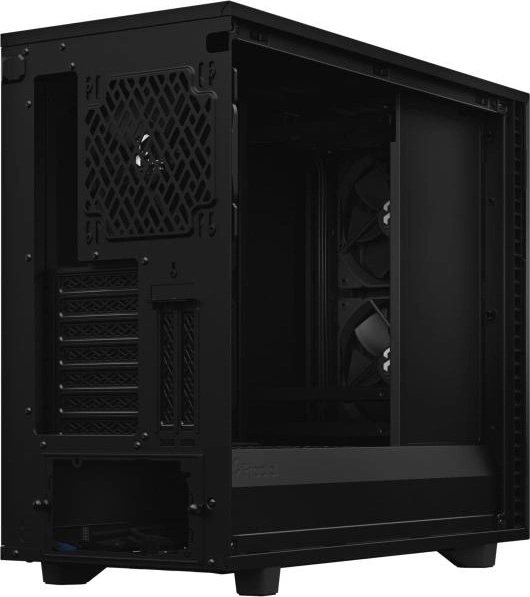

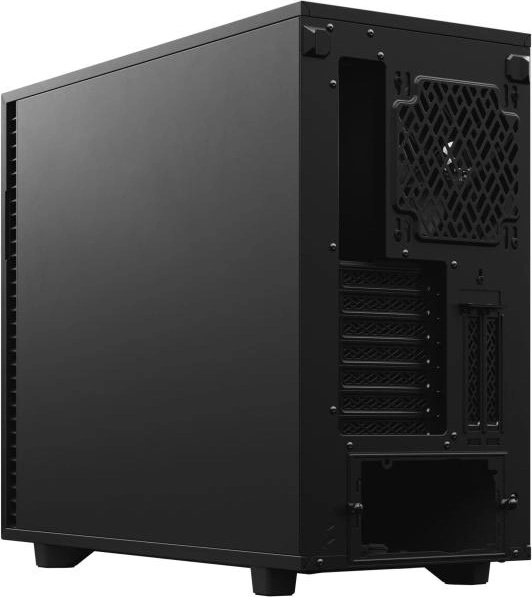

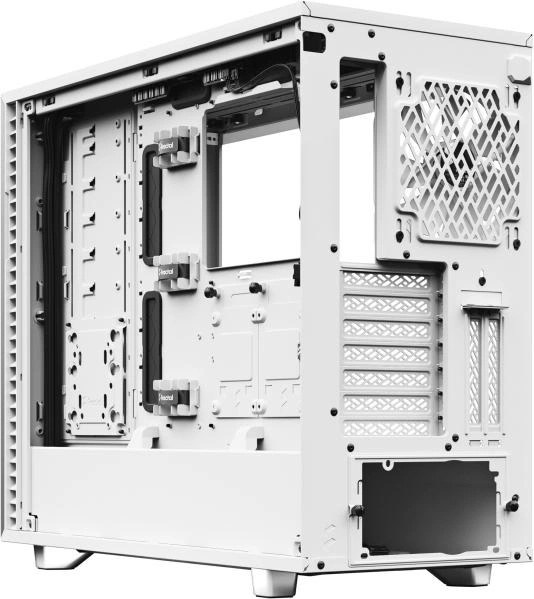

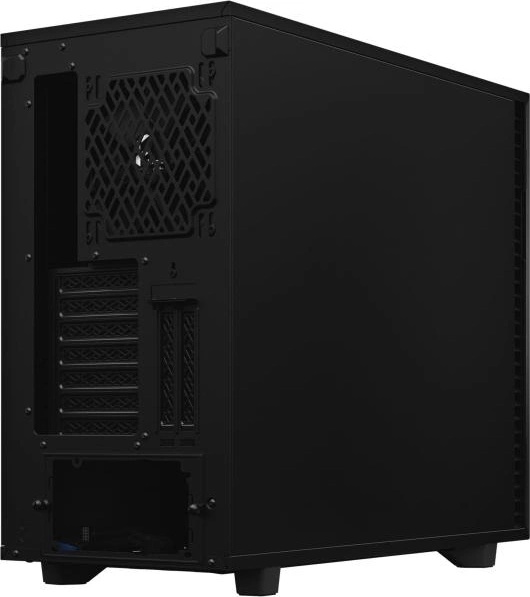

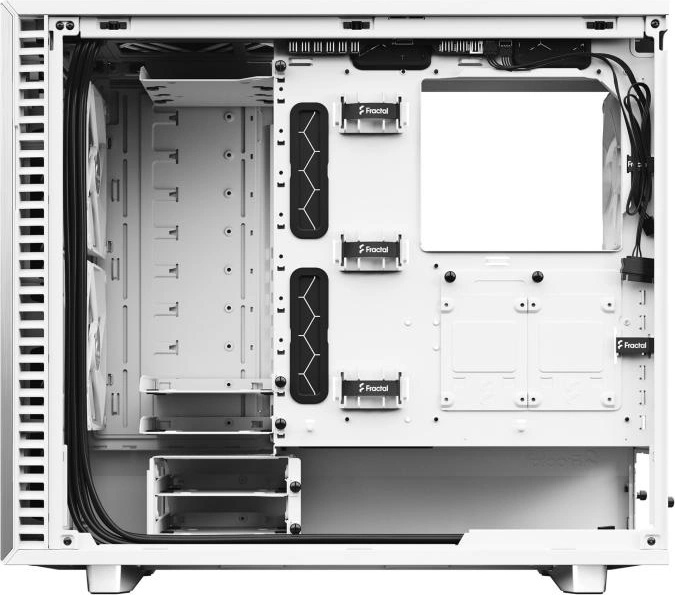

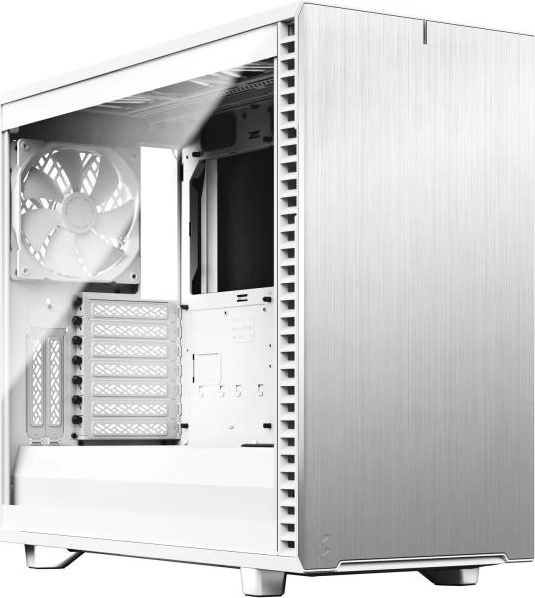

Галерия
