OPTIMIZED AIR FLOW

Two 120mm fans aligned vertically on the front to draw in air evenly across the entire face of the enclosure. That will contribute to positive air pressure within the case, the rising warm air will always be exhausted with the rear and top airflow from the MAG Forge 100 Series.



READY FOR OPTIMIZED MOTHERBOARD

Designed with multiple easy installation mechanisms and accommodated an up to ATX motherboard to provide an unhindered building experience.

Support

ATX / Micro ATX / Mini-ITX

BUILT FOR A PRIME FAN AND RADIATOR CAPACITY

COOLING LAYOUT

Front: Up to 3 x 120 mm or 2 x 140 mm

Top: Up to 2 x 120 mm or 2 x 140 mm

Rear: 1 x 120 mm

PRE-INSTALL FAN

Front: 2 x 120 mm RGB LED Fan included

Rear: 1 x 120mm System Fan included

RADIATOR LAYOUT

Top - support 120 / 240 mm radiator

Front - support 120 / 240 mm radiator

Rear - support 120 radiator




BUILT FOR OPTIMIZED CASE STRUCTURE






TOOL-LESS TEMPERED GLASS

The light gray tone of 4mm tempered glass side panel is ideal for displaying RGB lighting effects and provides clear internal component construction.

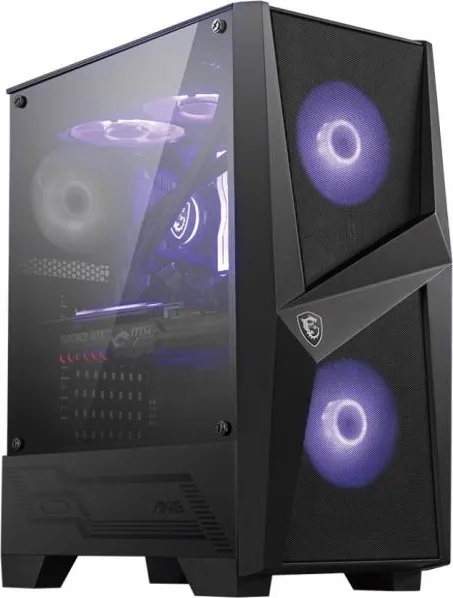

• Product Name

MAG FORGE 100M

• Form Factor

Mid-Size

• Motherboard Form Factor Support

ATX / Micro-ATX / Mini-ITX

• I/O Ports

2 x USB 3.2 Gen1 Type-A (5 Gbps)

1 x Audio-out

1 x Mic-in

• Drive Mount Support

3 x 2.5 / 2 x 3.5

• Expansion Slots

7

• Maximum GPU Length

330 mm / 13 inches

• Maximum CPU Cooler Height

160 mm / 6.3 inches

• Power Supply Support

ATX

• Maximum PSU Length

200 mm / 7.87 inches

• Fan Size Support

Front: 3 x 120 mm / 2 x 140 mm

Top: 2 x 120 mm / 2 x 140 mm

Rear: 1 x 120 mm

• Pre-installed Fan Size

Front: 2 x 120 mm

Rear: 1 x 120 mm

• Pre-installed Fan Type

Front: 2 x RGB Fan

Rear: 1 x Non LED Fan

• Radiator Size Support

Front: 120 / 140 / 240 mm

Top: 120 / 240 mm

Rear: 120 mm

• Dimensions (DxWxH)

421 x 210 x 499 mm / 17.05 x 8.27 x 19.65 inches

• Net Weight

5.64 kg / 12.43 lbs
