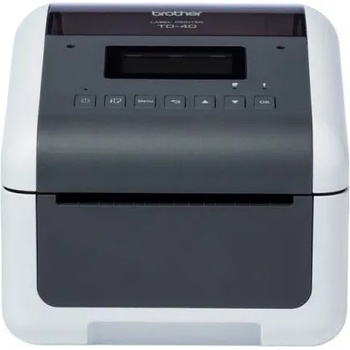

TD-4550DNWB

4 inch Direct Thermal Desktop Wireless Network Barcode and Label Printer.

The Brother model TD-4550DNWB is part of the next era of four-inch desktop thermal printers from Brother. These precision-built barcode label printers, deliver the right level of performance, quality, and integration at an exceptional value. From inventory and shipping to barcode and shelf labeling – now you can easily and affordably produce the labels you need, with the reliability and support that only Brother delivers.

Key Features
Performance. Up to 6ips fast print speed matched with compatibility and connectivity options
Quality. 300 dpi prints clean, crisp text and accurate scanning barcodes

Effortless Integration. Easily integrate into existing and future workflows in warehouse or manufacturing

Affordable. Powerful desktop printing doesn’t always come at a price

Connected. USB 2.0, Ethernet LAN, Wi-Fi®, and Bluetooth®

Options. Labeler peeler and automatic cutter options available

Specifications:

Features TD-4550DNWB

Use ModelDesktop Thermal Printer

Printing TechnologyDirect Thermal

Media / Print Width4.65″ (118mm) / 4.27″ (108.4mm)

Print Head Resolution300 x 300 dpi

Print Engine SpeedUp to 6ips (152.4mm/sec. )

Printer Size (W x H x L) 7.08″ (180mm) x 6.10″ (155mm) x 8.82″ (224mm)

Control Panel7 Keys / 3 LEDs, LCD

Real Time Clock Standard (Coin Cell Battery Optional)

Media Loading Drop-In Spindle-Less Design l Rear Feed (External Roll and Fanfold)

Media Specifications Width: 0.75″-4.65″ (19mm-118 mm) l Thickness: 2.0mil-11mil (0.058mm-0.279mm) l Length: 0.25″-118.11″ (6.4mm-3,000mm)

Label PeelerOptional*
Automatic Cutter Optional*

Printer Sensors Top Cover, Transmissive (Gap), Full Width Moveable Reflective (Black Mark), Peeler (optional)*

Printer Languages / EmulationsAirPrint®, Raster Graphics, ZPL II®, CPCL, Text (Template/Form), ESC P

Printer MemoryStandard with 64MB Flash, 256MB SDRAM

OS Supported Windows Server 2016/2012R2/2012/2008R2/2008/2003, Windows 10/8/7, Windows XP, Linux

SDK SupportWindows (b-PAC), Android 4.0. 3 or Higher, iOS 8 or Higher

Standard Interfaces
Wi-Fi® WLAN (5GHz 802.11a/n and 2.4GHz 802.11b/g/n Infrastructure, 802.11g/n Wireless Direct), Ethernet LAN (10/100Base-TX), Bluetooth® Version 4.2 BLE/MFi, USB 2.0, Host-USB RS232C Serial

Security Protocols
LAN: 802.1x (EAP-FAST, PEAP, EAP-TLS, EAP-TTLS, EAP-MD5),

WLAN: 802.1x (EAP-FAST, PEAP, EAP-TLS, EAP-TTLS)

Wireless Security
Infrastructure: WEP 64/128bit, WPA/WPA2-PSK (TKIP/AES)

Wireless Direct: WPA2-PSK (AES)

Bluetooth® ProfilesSerial Port (SPP), Object Push (OPP), Hardcopy Replacement (HCRP), Generic Attribute (GATT) Low Energy
Resident Barcodes
Linear: Code39, Code93, Code128, ITF, UPC-A/E, EAN8/13, GS1-128 (UCC/EAN-128), GS1 DataBar (RSS), MSI/Plessey, Industrial 2/5, Codabar (NW-7), POSTNET

2D: PDF417/MicroPDF417, Data Matrix, Maxicode, QR Code/Micro QR Code, Aztec

Power SpecificationsExternal AC Power Adapter (Input: 100-240VAC 50/60 Hz, 2.0A, Output: 24VDC 5A)
