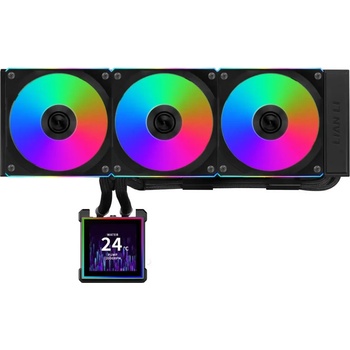

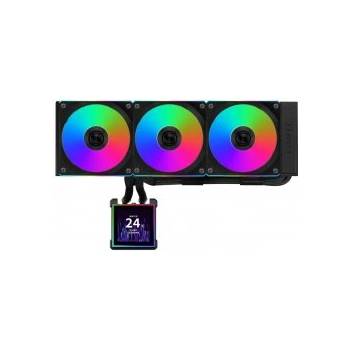

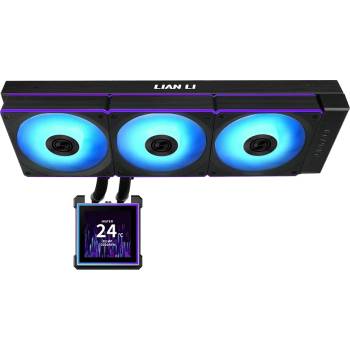

Lian Li HydroShift II (G89.GHS2LCDS36CB.00)

Lian Li HydroShift II LCD-S 360 CL

THREE MODELS, TWO COLORS

The new HydroShift II LCD-S AIO is available in three models and two color options in black and white, allowing builders to freely customize both aesthetics and performance for an enjoyable DIY experience.

UNI FAN CL Wireless

This model is equipped with UNI FAN CL Wireless for high-efficiency airflow. Integrated RGB illumination shines through, and both the light strips and fan blades support independent effect control.

DYNAMIC INTERACTION, COMPLETE CONTROL

Enjoy a vivid, high-definition visual experience with a 480 × 480 resolution display boasting 500 nits of peak brightness. Even under bright lighting, every animation and metric remains crystal clear. The 60 Hz refresh rate ensures smooth, tear-free visuals for a fluid real-time monitoring experience.

MAGNETIC HOT-SWAP DISPLAY

Featuring magnetically aligned pogo-pin connectors, the screen securely snaps into place without powering down, allowing for fast installation or removal. Precise magnetic alignment ensures a safe, reliable connection, letting users conveniently attach the display after system assembly to avoid accidental damage.

PUMP PERFORMANCE UPGRADED

Experience the next level of cooling with our enhanced pump, now reaching speeds of up to 3200 RPM. the enhanced pump delivers more power with less noise. A hidden frame and skirted cover ensure a clean, streamlined look.

MINIMALIST AESTHETICS, MAXIMUM FREEDOM

Innovative side-mounted tubing runs cleanly along the radiator edge, reducing visual clutter. Cables are discreetly integrated within the sleeved tubing, delivering a seamless, cable-free look for an ultra-clean, minimalist build.

USB power and data cables are integrated directly into the tubing, removing visible wires from the front and delivering a cleaner, more refined interior.

Offline Mode (No USB Connection)
Operates with preset themes to monitor coolant temperature and pump speed. No cables, no system resources required.

Wireless Mode
(L-Wireless Controller Connection, no USB connection)
Connect through the L-Wireless 2.4G Controller to customize screen themes, parameters, and lighting effects via L-Connect. Wireless Mode also allows for lighting synchronization with other wireless products, including CL Wireless and TL Wireless, while keeping your motherboard’s USB 9P ports free for other devices. Enjoy a cleaner setup with reduced cable clutter and minimal system load.

Streaming Mode (USB Connection)
Connect via USB to gain full control through L-Connect 3. Easily switch screen themes, upload custom images, or design personalized layouts, turning the display into a dynamic secondary screen that enhances both functionality and visual appeal.

Specifications

PUMP SPEED

1600-3200 RPM ±10%

PUMP NOISE

≤28dBA

WATER BLOCK DIMENSIONS

91 x 99 x 62mm

LCD REFRESH RATE

60Hz

LCD PANEL

3.4″ IPS

LCD RESOLUTION

480 x 480

BRIGHTNESS

500nit

RADIATOR SIZE

400 x 122 x 24mm

RADIATOR MATERIAL

Aluminum

TUBING LENGTH

450/470mm

Fa n Size

124 x 120 x 28mm

FAN SPEED

0，200-2100RPM

FAN PRESSURE

3.00H2O

AI RFLOW

72.7CFM

NOISE LEVEL

30dBA

BEARING TYPE

Fluid Dynamic Bearing (FDB)

CPU SOCKET SUPPORT

intel: LGA1700 LGA1851
AMD: AM4 AM5
