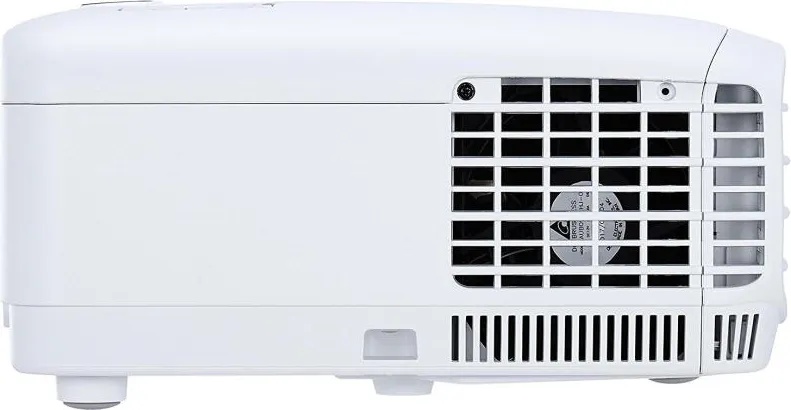

ViewSonic PS501X

The ViewSonic® PS501X price-performance short throw projector features 3,500 lumens, native XGA 1024 x 768 resolution, a user-friendly design, and a sleek white chassis. Exclusive SuperColor technology offers a wide color gamut for beautiful image production in nearly any environment. A short throw lens with a 0.61 throw ratio offers large projection images for smaller rooms. The PS501X also features HDMI and VGA connectivity, and a RS232 control port. An energy-saving DynamicEco® feature reduces power consumption by up to 70%, and extends the lamp life up to 15,000 hours. With advanced audiovisual features, flexible connectivity options, and an affordable price, the PS501X is ideal for use in education and small business environments.

SuperColor:
Amazing Color Accuracy

ViewSonic’s proprietary SuperColor Technology features an exclusive 6-segment color wheel and dynamic lamp control capabilities, providing a wide color range and stunningly beautiful images.

Large Images
In Small Spaces

A short throw lens enables large images to be projected from short distances in small rooms. In addition, any blinding lights in front of the presenter, distracting shadows on the projected image, or glaring hotspots on the screen, are all eliminated because the projector’s light source is closer to the projection surface

Bright Images
in any Environment

Packed with 3,500 lumens and a high contrast ratio, this projector produces bright images in nearly any environment.

Resolution
1024 x 768

Throw Ratio
0.61

Throw Distance
2.4 - 7.3 ft / 0.7 - 2.2 m

Brightness (ANSI Lumens)
3,500

Full Specifications
Display
Type
DLP

Resolution Type
XGA

Resolution
1024 x 768

Brightness (ANSI Lumens)
3,500

Display Size (in. )
30 - 300 in. / 0.76 - 7.62 m

Throw Distance
2.4 - 7.3 ft / 0.7 - 2.2 m

Throw Ratio
0.61

Keystone
Vertical (± 40º)

Lens
Fixed Zoom

Light Source (watt)
190

Light Source Life, Normal (hours)
5000

Light Source Life, Dynamic Eco-Mode (hours)
15000

Color Depth
1.07B Color (R/G/B 10bit)

Dynamic Contrast Ratio
22,000:1

Aspect Ratio
4:3

Video Signal
Frequency Horizontal
15K~102KHz

Frequency Vertical
23~120Hz

Compatibility
PC Resolution (max)
1920 x 1080

PC Resolution (min)
640 x 480

Mac® Resolution (max)
1920 x 1080

Mac® Resolution (min)
640 x 480

Connector
USB 2.0 Type A
1

3.5mm Audio Out
1

3.5mm Audio In
1

Control (RS232)
1

HDMI 1.4
1

VGA In
2

VGA Out
1

Composite RCA Video In
1

Mini USB
1

Audio
Internal Speakers
2W

Power
Voltage
100-240V+/- 10%, 50/60Hz AC

Consumption (typical)
260W

Stand-by
