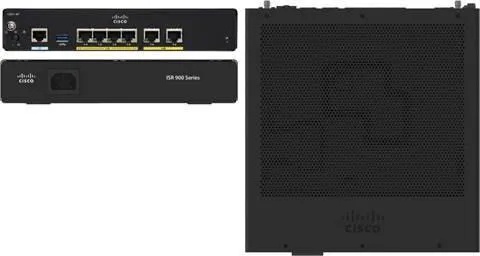

CISCO 900 Series Integrated Services Routers
id="p3506145"> CISCO 900 Series Integrated Services RoutersManufacturer CISCOManufacturer Part No C921-4PMarketing DescriptionThe Cisco 900 Series Integrated Services Routers (ISR 900) combine WAN, comprehensive security, and advanced connectivity in a compact, fanless platform. The routers are designed to provide enterprise-class security and connectivity for small to medium businesses. The ISR 921 model comes with a 4-port managed switch, providing LAN ports to connect multiple devices and up to 150 Mbps of VPN throughput for high performance. These small, yet powerful, fixed-configuration routers provide secure broadband and Metro Ethernet connectivity. The routers deliver integrated security and threat defense, protecting networks from both known and new Internet vulnerabilities and attacks. Product Features

• High availability and business continuity
• Consistent, high application performance levels
• Risk mitigation with multilevel security
• Unified control of wired and wireless networks from a common console for streamlined operations
• Remote configuration and management to keep local IT staff lean

GeneralDevice TypeRouter - 4-port switch (integrated)Enclosure TypeDesktopConnectivity TechnologyWiredData Link ProtocolEthernet, Fast Ethernet, Gigabit EthernetNetwork / Transport ProtocolL2TP, RSVP, ICMP/IP, IPSec, FTP, DHCP, DNS, L2TPv3, DDNS, RTP, HTTP, HTTPs, cRTPRouting ProtocolOSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, IGMPv3, GRE, OSPFv3, policy-based routing (PBR), BGP-4+, WCCP, Bidirectional Forwarding Detection (BFD), RSVP, STP, MGRERemote Management ProtocolTelnet, SNMP 3, HTTP, HTTPS, SSH, CLIEncryption AlgorithmDES, Triple DES, AES, SSL, PKI, 128-bit AES, 192-bit AES, 256-bit AESAuthentication MethodSecure Shell (SSH), RADIUS, TACACS+FeaturesNAT support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DiffServ support, MAC address filtering, Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Access Control List (ACL) support, Quality of Service (QoS), Link Fragmentation and Interleaving (LFI), Dynamic Multipoint VPN (DMVPN), DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), DNS proxy, DHCP relay, DHCP client, Management Information Base (MIB), Neighbor Discovery Protocol (NDP), VPN Server, Flexible NetFlow (FNF), DiffServ Code Point (DSCP) support, Storm Control, SmartPort technology, VPN client, Hierarchical Quality of Service (HQoS), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Multigroup HSRP (MHSRP), Network-Based Application Recognition (NBAR), Network-Based Application Recognition (NBAR) 2, Performance Routing (PfR), Class-Based Traffic Shaping (CBTS), Class-Based Traffic Policing (CBTP), Class-Based Weighted Random Early Detection (CBWRED), Cisco IP Service-Level Agreement (IP SLA), Cisco Next Generation Plug-and-Play (NG PnP) ProtocolCompliant StandardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, EN 61000-6-1, AS/NZS 60950-1, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, VCCI V-3, EN 61000-3-2:2006, EN 61000-3-3:2008, KN24, CNS13438:2006, EN 300 386 V1.6. 1, CISPR 24:2010, EN 55024:2010, CISPR 22:2008, EN 300 386, TCVN 7189, EN 55032, CAN/CSA-C22.2 No. 60950-1, TCVN 7317, KN22:2009, ICES-003:2012 Issue 5Processor2.2 GHzRAM1 GBFlash Memory2 GBExpansion / ConnectivityInterfacesWAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45
LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Management: 1 x console - RJ-45
USB 2.0: 1 x 4 pin USB Type APowerPower DeviceInternal power supplyVoltage RequiredAC 120/230 V (50/60 Hz)Software / System RequirementsOS ProvidedCisco IOS IP BaseDimensions & WeightWidth22.86 cmDepth24.13 cmHeight4.32 cmManufacturer WarrantyService & SupportLimited warranty - advance parts replacement - 1 year - response time: 10 daysEnvironmental ParametersMin Operating Temperature0 °CMax Operating Temperature50 °CHumidity Range Operating5 - 95% (non-condensing) Technical data provided by third party. We assume no liability for errors within these data.
CISCO .

Продукт известен още и като C 921 4 P, C9214P, C921 4P, C 921-4P, C921-4 P
