NETIS
WF2409E

300Mbps Wireless N Router

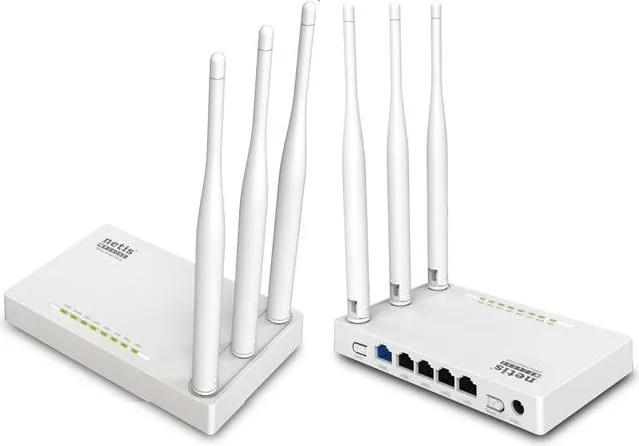

The netis router WF2409E offers 300Mbps high speed to connect your computers, smartphones, wireless cameras and other Wi-Fi devices. Bundled with three 5dBi high gain antennas, it ensures a better wireless coverage and allows you to enjoy the wireless freedom anywhere around your home, ideal for faster downloading, Internet calling and HD video streaming.

Incredible wireless high speed up to 300Mbps, great for faster downloading, Internet calling and HD video streaming
MIMO high gain 5dBi antennas providing maximum range and stable connections
Dual operation modes- Router, Bridge (pure access point)
Various WAN connection types in AP Router mode- DHCP, Static IP, PPPoE, L2TP, PPTP, Dual Access, WISP
Multiple wireless modes- AP, Repeater, AP+WDS, WDS, Client
Multi-SSID providing up to 3 additional separate networks for guests and friends
Easy wireless security setup at a push of the WPS button
Intelligent bandwidth control to manage the bandwidth usage for each computer reasonably
Internet Access Control- IP filtering, MAC Filtering, Domain Filtering based on time
Quick setup, with built-in multilingual management page

Wireless
Standards

IEEE 802.11b,  IEEE 802.11g,  IEEE 802.11n

Signal Rate
Up to 300Mbps

Frequency Range
2.4-2.4835GHz

Transmit Power
20dBm(MAX)

Data Transfer Rates
802.11n:
40MHz  (300Mbps,  270Mbps,  240Mbps,  180Mbps,  120Mbps,  90Mbps,  60Mbps,  30Mbps)
20MHz  (144Mbps,  130Mbps,  115Mbps,  86Mbps,  57Mbps,  43Mbps,  28Mbps,  14Mbps) (Auto-Sense)
801.11g:
(54Mbps,  48Mbps,  36Mbps,  24Mbps,  18Mbps,  12Mbps,  11Mbps,  9Mbps,  6Mbps)
802.11b:
(11Mbps,  9Mbps,  6Mbps,  5.5Mbps,  2Mbps,  1Mbps)

Wireless Modes
AP,  Repeater,  AP+WDS,  WDS,  Client,  Multi-SSID

Wireless Security
64/128-bit WEP,
WPA-PSK/WPA2-PSK (TKIP/AES)
SSID Broadcast Enable/Disable
Wireless MAC Filtering

Hardware

Standards
IEEE 802.3 10Base-T,  IEEE 802.3u 100Base-TX

Interfaces
1 * 10/100Mbps Auto MDI/MDIX RJ 45 WAN port
4 * 10/100Mbps Auto MDI/MDIX RJ 45 LAN port

LED Indicators
PWR,  WLAN,  LAN1-LAN4,  WAN,  WPS

Buttons
WPS, Default

Antennas
3* 5dBi Fixed Antenna

Power Supply
DC 9V/500mA (Output)

Software

WAN Type
DHCP, Static IP, PPPoE, L2TP, PPTP, Dual Access, WISP

Port Forwarding
Virtual Servers, Port Triggering, UPnP, DMZ, FTP Private Port

QoS
WMM, Bandwidth Control

Access Control
IP/MAC/Domain Filtering

VPN Pass-through
PPTP, L2TP, IPSec

Others
IPTV,  Dynamic DNS,  Static Routing,  WOL,  Backup & Restore,  Firmware Upgrade

Others

Certification
FCC, CE

Environment
Operating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-c ondensing
Storage Humidity: 5%~90% non-cond ensing

Package
1* WF2409E
1* 9V/500mA Power Adapter
1* Ethernet Cable
1* Quick Installation Guide (Mul tilingual)
