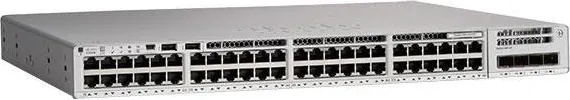

Marketing DescriptionThe Cisco Catalyst 9200 Series switch can help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise. This switch provides security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. The C9200L-48T-4G-E model has 48 ports 1G data with 4x 1G SFP fixed uplinks. Licensing is required. GeneralDevice TypeSwitch - 48 ports - L3 - stackableEnclosure TypeRack-mountableSubtypeGigabit EthernetPorts48 x 10/100/1000 + 4 x Gigabit SFP (uplink)PerformanceStacking bandwidth: 80 Gbps
Switching capacity: 104 Gbps
Forwarding rate: 154.76 MppsCapacityVirtual networks: 1
IPv4 routes: 11000
IPv4 routing table entries: 3000
IPv6 routing table entries: 1500
Multicast scale: 1000
ACL scale entries: 1500
FNF entries: 16000
VLANs supported: 1024
Switched virtual interfaces (SVIs): 512
QoS hardware queues per port: 8MAC Address Table Size16000 entriesJumbo Frame Support9198 bytesRouting ProtocolOSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTPRemote Management ProtocolSNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONFFeaturesQuality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, 6MB packet buffer, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR)Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1sRAM2 GBFlash Memory4 GBExpansion / ConnectivityInterfaces48 x 1000Base-T RJ-45
4 x 1000Base-X SFP uplink
1 x network stack device
1 x management (LAN) RJ-45
1 x console RJ-45PowerPower DeviceInternal power supply - hot-plugMax Supported Qty2Power RedundancyOptionalVoltage RequiredAC 100-240 V (50 - 60 Hz)MiscellaneousMTBF508,700 hoursCompliant StandardsCISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35Dimensions & WeightWidth44.5 cmDepth4.4 cmHeight28.8 cmWeight4.35 kgManufacturer WarrantyService & SupportLimited warranty - advance parts replacement - lifetime - response time: next business dayEnvironmental ParametersHumidity Range Operating5 - 90% (non-condensing)Min Storage Temperature-40 °CMax Storage Temperature70 °CHumidity Range Storage5 - 90% (non-condensing)
