Cudy GS1026PS2
Cudy GS1026PS2
Последно известна цена (2026-09-29):
91,52 €
Още интересни продукти
от 276,79 €
Ubiquiti USW-AGGREGATION
от 97,20 €
Teltonika TSW200
от 215,48 €
Ubiquiti USW-FLEX-2-5G-8-POE
от 39,83 €
Tenda TEG1016D
Описание, детайли - Cudy GS1026PS2
Ценова графика
Така ще разберете кога се променя цената на стоката.
Известие за цена
Услугата Известие за цена Ви уведомява, когато цената на стоката падне под избраната стойност.
Най-ниска актуална цена: 0,00 €
Описание

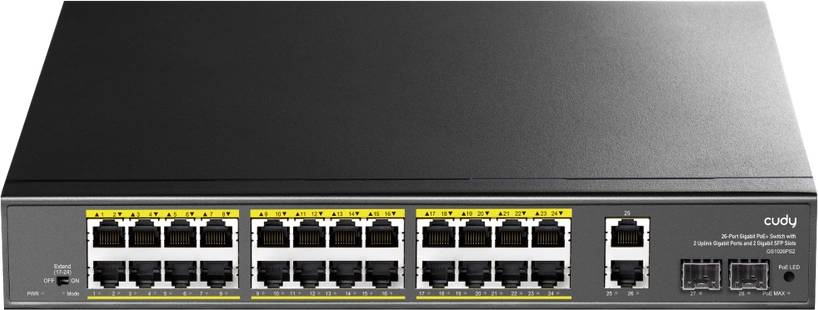

24-GbE PoE Switch with 2 Uplink GbE and 2 Uplink SFPA rack-mounted 26-GbE, 2-SFP PoE switch with a 300W power supply and a silent cooling system.
Specification DetailsModel Version GS1026PS2 1.01. 25G SFP Slots 2Gigabit RJ45 Ports 26Gigabit RJ45 PoE Ports #1~#24Max Power on a Single PoE Port 30WPoE Port Notes The PoE ports comply with IEEE 802.3at/af standards. Extend Mode Ports #17~#24Power —DIP Mode (SW) —PoE Status of Each PoE Port —Link/ACT of Each Ethernet Port —PoE Max Status —Default/Extend DIP switch —PoE LED Toggle —Physical Buttons Note The PoE Watchdog is on under the Extend mode and will attempt to reboot the plugged-in but inactive client. Max Copper Speed and Distance Cat. 3 or higher cable: 100 meters at 10 MbpsCat. 5 or higher cable: 100 meters at 100 MbpsCat. 5e or higher cable: 100 meters at GigabitCat. 5e or higher cable: 250 meters at 10 MbpsCopper Speed and Distance Note 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated. Optical Spec and Distance Depends on the Installed Optical ModuleMAC Address Table 8192Max Switching Capacity 56 GbpsMax Forwarding Rate 41.664 MppsPacket Buffer 3 MbitPower Input Type AC InletPower Methods ACPower Input 100-240V~ 50/60HzPower Supply 300WMax Power Excluding PoE 20W802.3 Protocols 802.3i 10BASE-T802.3u 100BASE-TX802.3ab 1000BASE-T802.3z 1000BASE-X802.3x Flow Control802.3af PoE802.3at PoEGrounding Methods Three-Prong PlugEMS IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kVEnvironment Operating Temperature: 0~40 ℃ (32~104 ℉)Storage Temperature: -40~70℃ (-40~158 ℉)Operating Humidity: 10~90% non-condensingStorage Humidity: 10~95% non-condensingDimension 320×207×44 mm12.6×8.15×1.73 inchesProduct Weight 1986 g (70.05 oz. )Casing Material MetalInstallation DesktopRackmount via BracketsRetail Package Dimension 370×290×85 mm14.57×11.42×3.35 inchesRetail Package Weight EU: 2534 g (89.38 oz. )
Продукт известен още и като GS 1026 PS 2, GS 1026PS2, GS10 26PS 2
- 24× GbE with 802.3at/af PoE
- 2× Uplink GbE + 2× Uplink SFP
- 300W Power Supply
- Default/Extend Modes
- Watchdog under Extend Mode
- Desktop, Rack-Mount
- 320×207×44 mm (12.6×8.15×1.73″)
Specification DetailsModel Version GS1026PS2 1.01. 25G SFP Slots 2Gigabit RJ45 Ports 26Gigabit RJ45 PoE Ports #1~#24Max Power on a Single PoE Port 30WPoE Port Notes The PoE ports comply with IEEE 802.3at/af standards. Extend Mode Ports #17~#24Power —DIP Mode (SW) —PoE Status of Each PoE Port —Link/ACT of Each Ethernet Port —PoE Max Status —Default/Extend DIP switch —PoE LED Toggle —Physical Buttons Note The PoE Watchdog is on under the Extend mode and will attempt to reboot the plugged-in but inactive client. Max Copper Speed and Distance Cat. 3 or higher cable: 100 meters at 10 MbpsCat. 5 or higher cable: 100 meters at 100 MbpsCat. 5e or higher cable: 100 meters at GigabitCat. 5e or higher cable: 250 meters at 10 MbpsCopper Speed and Distance Note 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated. Optical Spec and Distance Depends on the Installed Optical ModuleMAC Address Table 8192Max Switching Capacity 56 GbpsMax Forwarding Rate 41.664 MppsPacket Buffer 3 MbitPower Input Type AC InletPower Methods ACPower Input 100-240V~ 50/60HzPower Supply 300WMax Power Excluding PoE 20W802.3 Protocols 802.3i 10BASE-T802.3u 100BASE-TX802.3ab 1000BASE-T802.3z 1000BASE-X802.3x Flow Control802.3af PoE802.3at PoEGrounding Methods Three-Prong PlugEMS IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kVEnvironment Operating Temperature: 0~40 ℃ (32~104 ℉)Storage Temperature: -40~70℃ (-40~158 ℉)Operating Humidity: 10~90% non-condensingStorage Humidity: 10~95% non-condensingDimension 320×207×44 mm12.6×8.15×1.73 inchesProduct Weight 1986 g (70.05 oz. )Casing Material MetalInstallation DesktopRackmount via BracketsRetail Package Dimension 370×290×85 mm14.57×11.42×3.35 inchesRetail Package Weight EU: 2534 g (89.38 oz. )
Продукт известен още и като GS 1026 PS 2, GS 1026PS2, GS10 26PS 2
