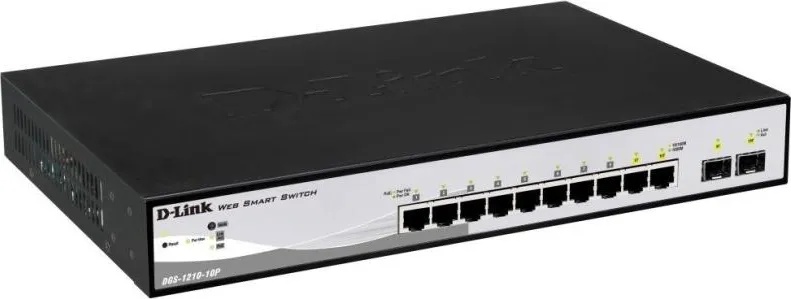

D-Link DGS-1210-10P

Number of Ports
8 PoE 10/100/1000 Mbps
2 combo 10/100/1000BASE-T/SFP

Network Cables
UTP Cat. 5, Cat. 5e (100m max)
EIA/TIA-568 100-ohm STP (100m max)

Full/Half Duplex
Full/half duplex for 10/100Mbps speeds
Full duplex for Gigabit speed

Media Interface Exchange
Auto MDI/MDI-X adjustment for all twisted pair ports

Port Standards & Functions
IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
IEEE 802.3z Gigabit Ethernet (fiber) ANSI/IEEE 802.3
Auto-negotiation
IEEE 802.3x Flow Control

Switching Capacity
20Gbps

Maximum 64 bytes packet forwarding rate
14.88Mpps

RAM Buffer
512KB per device

Transmission Method
Store-and-forward

MAC Address Table
8K entries per device

MAC Address Update
Up to 256 static MAC entries
Enable/disable auto-learning of MAC addresses

Physical and Environmental
Maximum Power Consumption 109.6 W (PoE on) 14.45 W (PoE off)
Standby Power Consumption 7W/110 V, 7.8W/240V
Fan Quantity 0
Acoustics 0dBA
Heat Dissipation 373.96 BTU/hr
Dimensions 13in x 7.1in x 1.7in (330mm x 180mm x 44mm) 13-inch desktop enclosure, 1U height
Weight 1.84kg
AC Input 100 to 240 VAC 50/60 internal universal power supply
Temperature Operating: 32° to 104°F (0° to 40°C) Storage: 14° to 158° F (-10° to 70° C)
Humidity Operating: 10% to 95% Non-condensing Storage: 5% to 95% Non-condensing
Emission (EMI) FCC Class A, CE Class A, IC Class A, VCCI Class A, C-Tick
Safety cUL, LVD

PoE Standard
802.3af
Pre-standard 802.3at

PoE Capable Ports
Port 1 to 8: 15.4w or 30w
Max. 30w on 2 10/100/1000Mbps ports
Max. 15.4w on 4 10/100/1000Mbps ports
Max. 7.5w on 8 10/100/1000Mbps ports

MAC Address Table
8K

Flow Control
802.3x Flow Control
HOL Blocking Prevention

Spanning Tree Protocol
802.1D STP
802.1w RSTP

IGMP Snooping
IGMP v1/v2 Snooping
Supports at least 64 static multicast addresses
Supports IGMP Snooping Querier
Supports 256 IGMP groups
IGMP per VLAN

Loopback Detection
Auto disable port when loop is detected

802.3ad Link Aggregetion
8 groups per device/8 ports per group

Port Mirroring
One-to-One, Many-to-One, Supports Mirroring for Tx/Rx/Both

802.1Q
2003 Edition

VLAN Group
Max 256 static VLAN groups, max 4094 VID

Management VLAN
Supports 1 Management VLAN

Asymmetric VLAN
Yes

Auto Voice VLAN
Max. 10 user defined OUI, Max. 8 default OUI

802.1p Quality of Service
4 Queues per port

Queue Handling
Strict, Weighted Round Robin (WRR)
