Описание на продукта
Параметри на продукта
Производител
Zyxel
Брой портове 10/100/1000 Mbit/s
5
Управляем
не
QoS
не
Параметри на продукта
Производител
Zyxel
Брой портове 10/100/1000 Mbit/s
5
Управляем
не
QoS
не
Описание на продукта

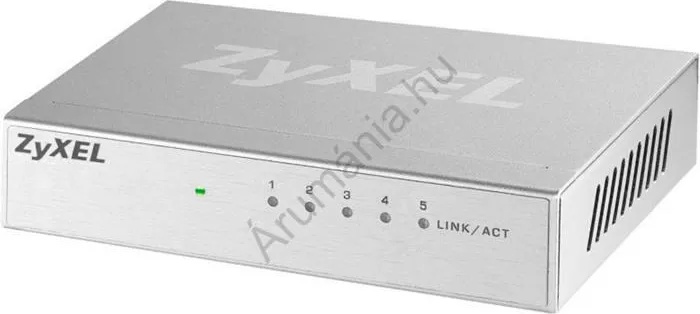

Switch ZyXEL GS-105B
Compact, sturdy desktop switch with alternative wall-mount installation
Connect up to 5 network devices at Gigabit wire speed
QoS ports for optimized, smooth VoIP and data transfer of high- and medium-priority applications
Green switch for energy saving
Loop detection prevents network from crashing
Standard
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3 Nway auto-negotiation
IEEE 802.3x full duplex operation and flow control
IEEE 802.3az Energy Efficient Ethernet
Performance
Data transfer rate (half duplex/full duplex):
Ethernet: 10/20 Mbps
Fast Ethernet: 100/200 Mbps
Gigabit Ethernet: 1000/2000 Mbps
MAC address table: 2 K
Memory buffer: 128 KB
Switching fabric (non-blocking): 10 Gbps
Features
Auto-MDI/MDIX in all ports
Transmission method: store-and-forward architecture
Loop detection support
Port-based QoS support
Jumbo frame support up to 9 KB
IGMP snooping v1/v2 support
Hardware Specifications
Interface
Five RJ-45 10/100/1000 Mbps Ethernet ports with auto MDI/MDIX support
QoS Ports
One high-priority QoS port and two medium-priority QoS ports
LED indicator
PWR: Power
Per port: Link/Activity
Power supply
Input: 100-240 V AC
Output: 9 V DC, 0.6 A
Power consumption: 3.5 watt max.
Physical Specifications
Item dimensions (WxDxH): 164 x 98 x 26 mm (6.46 x 3.86 x 1.02)
Item weight: 369 g (0.81 lb. )
Packing dimensions (WxDxH): 170 x 108 x 92 mm (6.70 x 4.25 x 3.62)
Packing weight: 537 g (1.18 lb. )
Environmental Specifications
Operating environment
Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 10% to 90% (Non-condensing)
Storage environment
Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity: 5% to 90% (Non-condensing)
Certification
CE, FCC class B, C-Tick, BSMI
Package Contents
Gigabit switch
Power adapter
Quick start guide
Warranty card
Compact, sturdy desktop switch with alternative wall-mount installation
Connect up to 5 network devices at Gigabit wire speed
QoS ports for optimized, smooth VoIP and data transfer of high- and medium-priority applications
Green switch for energy saving
Loop detection prevents network from crashing
Standard
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3 Nway auto-negotiation
IEEE 802.3x full duplex operation and flow control
IEEE 802.3az Energy Efficient Ethernet
Performance
Data transfer rate (half duplex/full duplex):
Ethernet: 10/20 Mbps
Fast Ethernet: 100/200 Mbps
Gigabit Ethernet: 1000/2000 Mbps
MAC address table: 2 K
Memory buffer: 128 KB
Switching fabric (non-blocking): 10 Gbps
Features
Auto-MDI/MDIX in all ports
Transmission method: store-and-forward architecture
Loop detection support
Port-based QoS support
Jumbo frame support up to 9 KB
IGMP snooping v1/v2 support
Hardware Specifications
Interface
Five RJ-45 10/100/1000 Mbps Ethernet ports with auto MDI/MDIX support
QoS Ports
One high-priority QoS port and two medium-priority QoS ports
LED indicator
PWR: Power
Per port: Link/Activity
Power supply
Input: 100-240 V AC
Output: 9 V DC, 0.6 A
Power consumption: 3.5 watt max.
Physical Specifications
Item dimensions (WxDxH): 164 x 98 x 26 mm (6.46 x 3.86 x 1.02)
Item weight: 369 g (0.81 lb. )
Packing dimensions (WxDxH): 170 x 108 x 92 mm (6.70 x 4.25 x 3.62)
Packing weight: 537 g (1.18 lb. )
Environmental Specifications
Operating environment
Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 10% to 90% (Non-condensing)
Storage environment
Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity: 5% to 90% (Non-condensing)
Certification
CE, FCC class B, C-Tick, BSMI
Package Contents
Gigabit switch
Power adapter
Quick start guide
Warranty card
