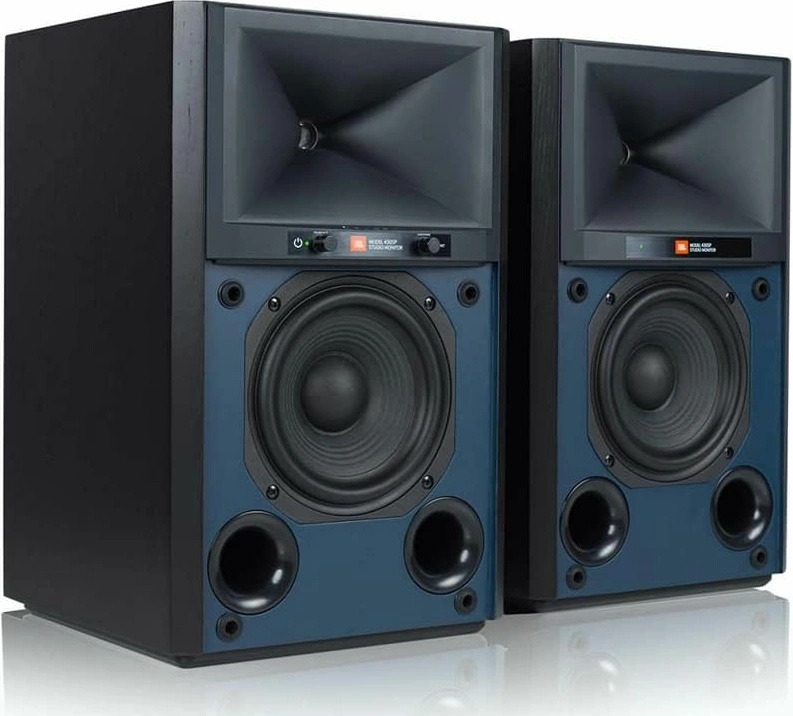

JBL 4305P BLK

Type
Compact, Bass-reflex Loudspeaker System with Built-in Amplification, DSP, and Wireless Connectivity

Low Frequency Drivers
JW130P-4, 5.25-inch (130mm) Pure-pulp Black Paper Cone Woofers with Cast-frames

High Frequency Drivers
2410H-2, 1-inch (25mm) Annular Ring, Teonex® Diaphragm Compression Drivers with Advanced HDI Geometry Horns

Amplifier Power
300W Class D System Power, 150W RMS per Speaker, (25W per HF Compression Driver + 125W per LF Woofer)

Audio Resolution
Up to 24-bit, 192 kHz (Digital Link connection between spks), Up to 24-bit, 96 kHz (Wireless connection between spks)

Frequency Response
45 Hz - 25 kHz (-6 dB)

Crossover Frequency
1,750 Hz

Dispersion
90° Horizontal x 60° Vertical (2kHz to 20kHz)

Sound Controls
Front Panel- Volume +/- and Source Selection, Bluetooth Remote, Boundary Compensation (Flat / -3dB)

Wireless Inputs
WiFi streaming, Bluetooth 5.1

Wired Inputs, Analog
XLR/¼" Combo and 3.5mm stereo

Wired Inputs, Digital
Asynchronous USB-B and Toslink/Optical

Supported Digital Audio Sample Rates (PCM 2CH)
Streaming & Local Media - 32kHz/44.1kHz/48kHz/88.2kHz/96kHz/176.4k Hz/192kHzSPDIF - Up to 192kHz Bluetooth - Up to 48kHz

Music Formats Supported (Local Media)
AAC / AIFF / ALAC / DSD (to PCM) / FLAC / MP3 / MP4 / OGG / WAV / WMA

Subwoofer Output
Autosensing w/ Auto-engage of 80Hz High Pass Filter

Remote Control Type
BTLE Wireless

Bluetooth Audio
Version 5.1

Bluetooth Profiles
SPP (Serial Port Profile), A2DP (Advanced Audio Distribution Profile), AVRCP (Audio/Vido Remote Control Profile)

Enclosure
Bass-reflex Design with Dual Front-facing Ports¾" MDF Finished in Satin Walnut or Black Walnut Furniture-Grade Wood Veneer

Grille
Dark Blue (with Walnut Cabinet) or Black (with Black Cabinet) Acoustically Transparent Cloth Grille

Net Speaker Dimensions with grille
13.2 H x 8.3 W x 8.8 D (336mm x 210mm x 223.3mm)

Net Speaker Weight
Primary - 15.0 lbs (6.8kg), Secondary - 14.1 lbs (6.4kg)
Shipping Units of Measure

System Pairs
Gross Shipping Dimensions
23.5 L x 11.4 W x 18.0 H (597mm x 290mm x 458mm)

Gross Shipping Weight
36.5 lbs (16.6 kg)

AC Input Voltage
100 - 240 VAC (+/-10%), 50/60Hz
