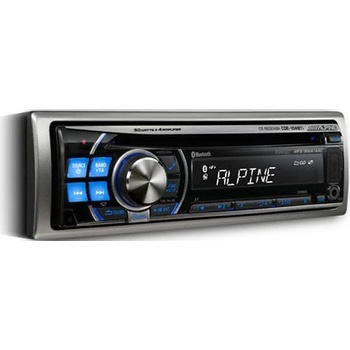

Alpine CDE-104BTI

FEATURES

Tuner

* Memory Presets: Preset Stations (FM:12 / MW:6 /LW:6)
* Memory: Auto Memory
* Seek Mode: Local / DX Selection

RDS

* RDS Functions: TA, TP, RADIO TEXT

Bluetooth®

* Built-In or Ready: Built-In Parrot Bluetooth® module
* Hands Free: Hands Free Calling
* Phone Book: Phone Book Transfer
* Microphone: Microphone Included

Connection for iPod®

* Connection Type: USB Connection
* Connection: Full Speed Cable (KCE-433iV) Included
* Source Type: Dedicated iPod® Source
* Compatibility for iPod®: iPod® 5th generation, iPod® nano 1st/2nd/3rd/4th generation, iPod® classic, iPod® touch 1st/2nd generation
* Works with iPhone: Works with iPhone
* M. I. X. (Shuffle) Capability: Song, Albums, All
* Music Control: Song Up / Down / Repeat
* Available Selections: Playlist, Artist, Album, Song, Podcast, Genre, Composer, Audiobook
* Percentage Search: Percentage Search
* Information Display: Album Song Artist
* Easy Navigating: Quick Search

Disc Player

* Disc Type: CD Player
* Disc Playback Type: CD/CD-R/CD-RW
* Music Playback: MP3/AAC/WMA Playback
* DAC: 1Bit DAC
* Zero data Mute: 0 Bit Mute
* Digital Servo: Digital Servo
* Sensor: Music Sensor Scan/Repeat
* Playback Control: Play/Pause/Forward/Backward
* M. I. X. Mode: One (Folder)/All (Random Play)/Random (CD Only)
* Easy Navigating: Quick Search

USB Media Connection

* USB Connection: Front Panel Input
* Music Playback: MP3/AAC/WMA Playback

Sound Tuning

* Subwoofer Level: Subwoofer Level Adjustment
* High Pass Filter: High Pass Filter Adjustment
* Bass Level: Bass Level Adjustment
* Bass Center Frequency: Bass Center Frequency Adjustment
* Bass Width: Q Adjustment
* Treble Level: Treble Level Adjustment
* Treble Center Frequency: Treble Center Frequency Adjustment
* Loudness: Loudness Feature

General

* Power Output: 4 x 50 W High Power Amplifier
* Display: White LCD (14 Segment)
* Control Type: Rotary Encoder Knob
* Face Color: Silver
* Illumination Buttons: Blue Illuminated Buttons
* PreOut: 2 PreOuts (2 V)
* AUX-In: Front AUX Input (3.5mm mini jack) / Full Speed AUX + (Required KCE-237B)
* Steering Wheel Remote Control: Steering Wheel Remote Control Ready
* Bass & Treble: Bass & Treble Controls
* Fader & Balance: Fader & Balance Controls
* DIN Trim Plate: Detachable Trim Plate
* Detachable Face Plate: Detachable Face Plate
* Dimmer: Dimmer Input
* Power Antenna Lead: Power Antenna Output
* Remote Turn-On: Amplifier Remote Turn-On Output
* Audio Interrupt: Audio Interrupt Input

SPECIFICATIONS

Max Power Output Ratings

* Max Power Output: 4 x 50 W

FM Tuner

* Tuning Range: 87.5-108.0 MHz
* Mono Usable Sensitivity: 0.7 V
* Alternate Channel Selectivity: 80.0 dB
* Signal-to-Noise (S/N) Ratio: 65.0 dB
* Stereo Separation: 35.0 dB
* Capture Ratio: 2.0 dB

MW Tuner

* Tuning Range: 531-1,602 kHz
* Usable Sensitivity (IEC Standard): 25.1/28.0 (V/dB)

Bluetooth®

* Bluetooth® Version: Bluetooth® 2.0 CERTIFIED
* Output Power: +4 dBm Max. (Power class 2)
* HFP: (Hands-Free Profile)
* HSP: (Head Set Profile)

Connection for USB

* USB Requirements: 1.1/2.0
* Max. Power Consumption: 500 mA
* USB Class: Mass Storage
* File System: FAT 12/16/32
* MP3 Decoding: MPEG-1/2 AUDIO Layer-3
* WMA Decoding: Windows Media Audio
* AAC Decoding: ACC-LC format / m4a file
* Number of Channels: 2-Channel (Stereo)
* Frequency Response: 5-20 k ±1 dB (Frequency Response may differ depending on the encoder software/bit rate)
* Total Harmonic Distortion: 0.008% (at 1 kHz)
* DAC Type: 1 Bit
* Dynamic Range: 95 dB (at 1 kHz)
* Signal-to-Noise Ratio: 105 dB
* Channel Separation: 85 dB (at 1 kHz)

Disc Player

* Frequency Response: 5-20 k ±1 dB
* Channel Separation (1kHz): 85dB
* Dynamic Range (1kHz): 95 dB
* Total Harmonic Distortion (THD): 0.008% (at 1 kHz)
* Wow & Flutter (%WRMS): B. M. L.
* Oversampling: 8x/352.8 kHz
* Audio Signal-to-Noise (S/N): 105 dB

Sound Tuning

* Subwoofer Level Adjustment: 0 to 15
* High Pass Filter: OFF/60/80/100Hz (Selectable)
* Bass Level Control Range: ±14
* Bass Center Frequency: 60/80/100/200Hz (Selectable)
* Bass Band Width Adjustment (Q): 4 choices (2 =narrow, 1 =wide)
* Treble Level Control Range: ±14
* Treble Center Frequency: 10/12.5/15/17.5kHz (Selectable)

Dimensions

* Din Size: 1
* Chassis Size (W x H x D) mm: 178 mm x 50 mm x 161 mm
* Nose Piece Size (W x H x D) mm: 170 mm x 46 mm x 25 mm

General

* Power Requirement: 14.4 (11-16) V. DC
* Pre Output Voltage (Before Clipping): 2 V
* Operating Temperature (°C): 60°C to -10°C
* Maximum Mounting Angle: 35° from Horizontal
* Weight: 1.5 kg

Recommended Accessories

KCE-USB3: 2 METER USB EXTENSION CABLE
KTP-445: HEAD UNIT POWER PACK
KCE-237B: Fullspeed to mini jack adapter
