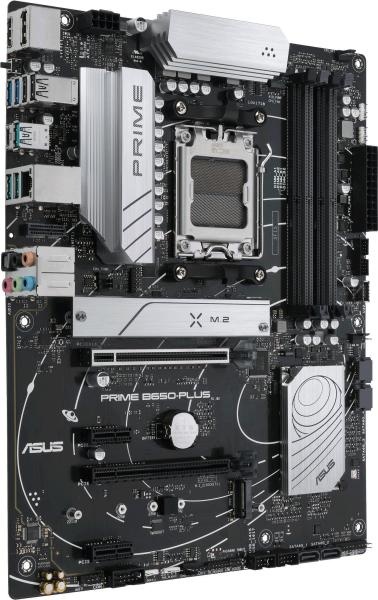

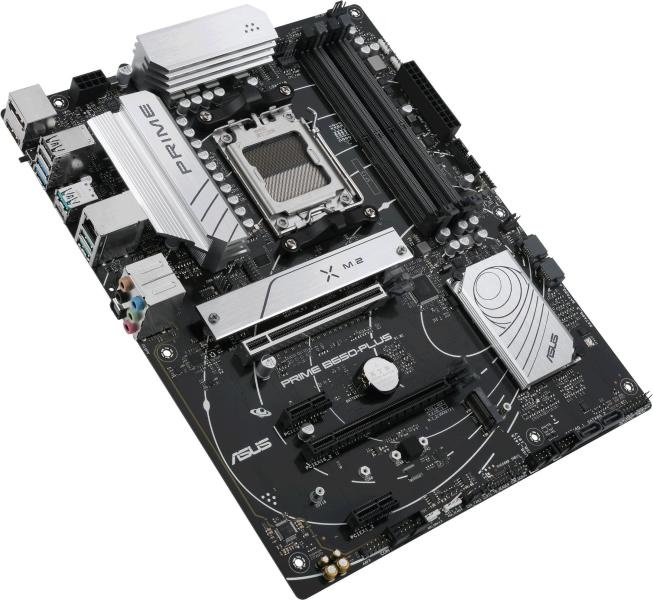

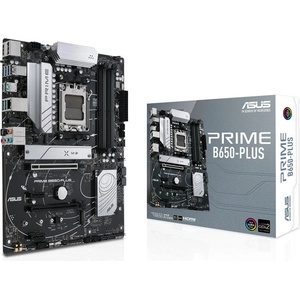

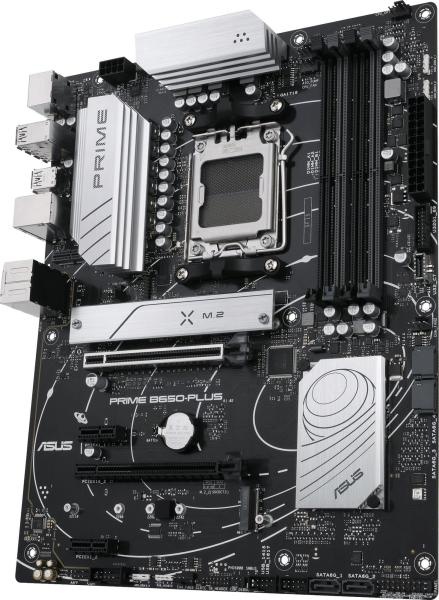

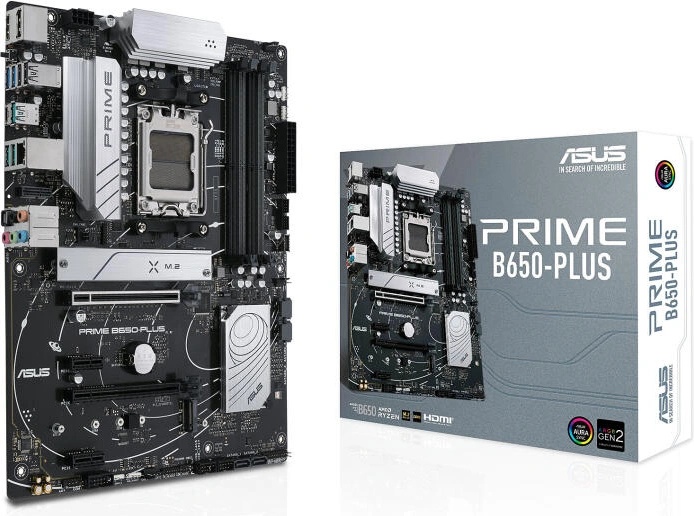

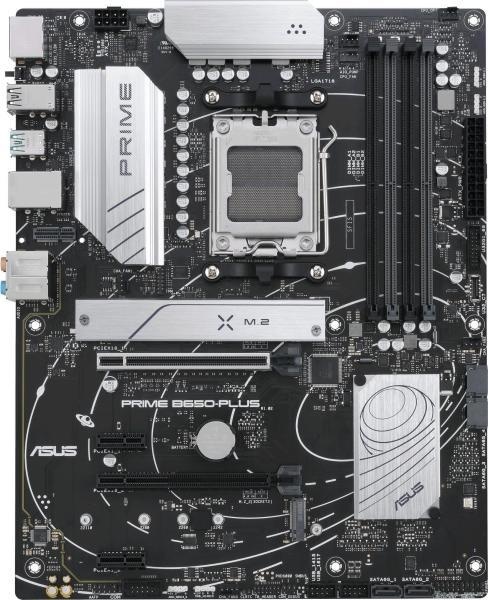

Asus PRIME B650-PLUS
90MB1BS0-M0EAY0

CPU
AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

Chipset
AMD B650 Chipset

Memory
4x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/660 0(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC )/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

Graphics
1x DisplayPort**
1x HDMI port***
* Graphics specifications may vary between CPU types.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots
AMD Ryzen 9000 & 7000 Series Desktop Processors
1x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1x PCIe 4.0 x16 slot (supports x8/x4 mode)*
AMD B650 Chipset
1x PCIe 4.0 x16 slot (supports x4 mode)
2x PCIe 4.0 x1 slots
* Specifications vary by CPU types.

Storage
Total supports 2 x M. 2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen 9000 & 7000 Series Desktop Processors
M. 2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M. 2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M. 2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M. 2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)**
AMD B650 Chipset
4x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
** Specifications vary by CPU types.

Ethernet
1x Realtek 2.5Gb Ethernet

Wireless & Bluetooth
Vertical M. 2 slot only (Key E, PCIe)*
* Wi-Fi module is sold separately.

USB
Rear USB (Total 8 ports)
4x USB 3.2 Gen 2 ports (3x Type-A + 1x USB Type-C)
2x USB 3.2 Gen 1 ports (2x Type-A)
2x USB 2.0 ports (2x Type-A)
Front USB (Total 7 ports)
1x USB 3.2 Gen 1 connector (supports USB Type-C)
1x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2x USB 2.0 headers support 4 additional USB 2.0 ports

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers

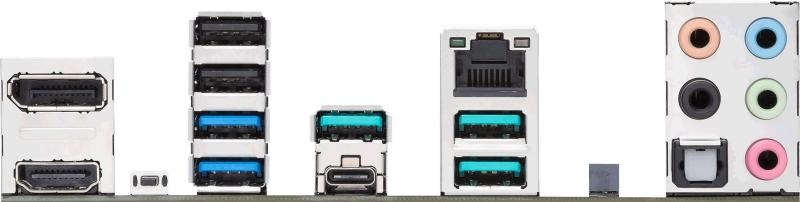

Back Panel I/O Ports
4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Vertical M. 2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button

Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M. 2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt (USB4) header
Special Features

ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- Safeslot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- Flexible M. 2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers

BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

Operating System
Windows 11, Windows 10 64-bit

Form Factor
ATX Form Factor
30.5 cm x 24.4 cm
4711081923381

Продукт известен още и като Prime B 650 Plus, PrimeB650Plus, Prime B650 Plus, PrimeB650-Plus
