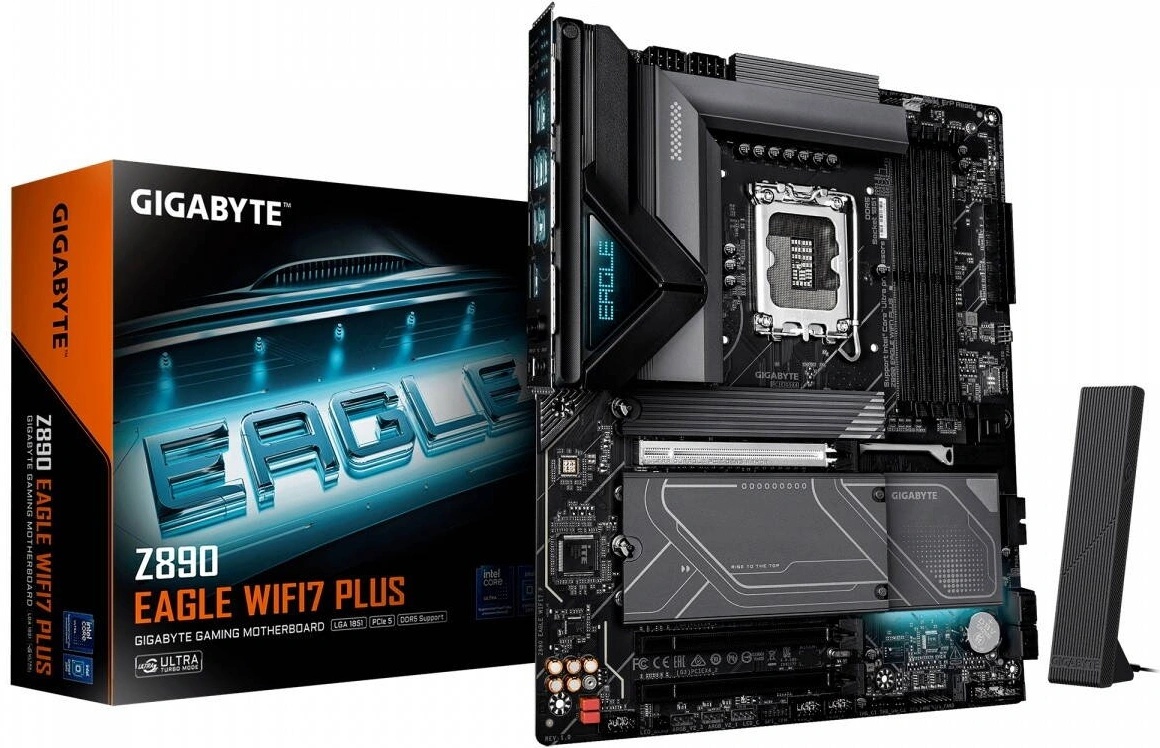

GB Z890 EAGLE WIFI7 PLUS

Vendor_url: https://www. gigabyte. com/Motherboard/Z890-EAGLE-WIFI7-PLUS Manufacturer: Gigabyte
Model: Z890 EAGLE WIFI7 P
Graphics: Integrated Graphics Processor-Intel® HD Graphics support:; - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 2.1 version; - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 2.1 version
CPU's supported: LGA1851 socket: Support for Intel® Core Ultra Processors; (Go to GIGABYTE's website for the latest CPU support list. ); L3 cache varies with CPU
Chipset: Intel® Z890 Express Chipset
Expansion slots: CPU:; - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16); * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. ; Chipset:; - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2)
Storage: CPU:; - 1 x M. 2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU); - 1 x M. 2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU); Chipset:; - 1 x M. 2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB); - 1 x M. 2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB); - 4 x SATA 6Gb/s connectors
RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Memory type: Support up to DDR5 9466+MT/s (OC); 4 x DDR5 DIMM slots, Dual Channel; Max. Capacity 256 GB; Support Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM); Supports Intel® Extreme Memory Profile (XMP) memory module
Rear panel I/O: iTE® I/O Controller Chip
USB: CPU:; - 1 x USB4® USB Type-C® port on the back panel; Chipset:; - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header; - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel; - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header); Chipset+2 USB 2.0 Hubs:; - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Connectors: 1 x 24-pin ATX main power connector; 2 x 8-pin ATX 12V power connectors; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 3 x system fan headers; 1 x system fan/water cooling pump header; 3 x addressable RGB Gen2 LED strip headers; 1 x RGB LED strip header; 4 x M. 2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header, with USB 3.2 Gen 2 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 2 x Thunderbolt add-in card connectors (For GIGABYTE Thunderbolt 5 add-in card only); 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only); 1 x reset jumper; 1 x Clear CMOS jumper; Back Panel Connectors:; 1 x power button; 1 x reset button; 1 x Q-Flash Plus button; 1 x Clear CMOS button; 1 x USB4® USB Type-C® port (DisplayPort (Note)); 2 x USB 3.2 Gen 2 Type-A ports (red); 3 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports; 1 x DisplayPort (Note); 2 x antenna connectors (2T2R); 1 x RJ-45 port; 2 x audio jacks; 1 x optical S/PDIF Out connector
Audio: Realtek® ALC1220 CODEC; * The back panel line out jack supports DSD audio. ; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. ; Support for S/PDIF Out
Lan: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless: Intel® Wi-Fi 7 BE202 (BE200NGW M); - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands; - BLUETOOTH 5.4; - Support for 11be 160MHz wireless standard;
BIOS: 1 x 512 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor: ATX Form Factor; 30.5cm x 24.4cm
OS: Support for Windows 11 64-bit
 .
MAIN BOARD
