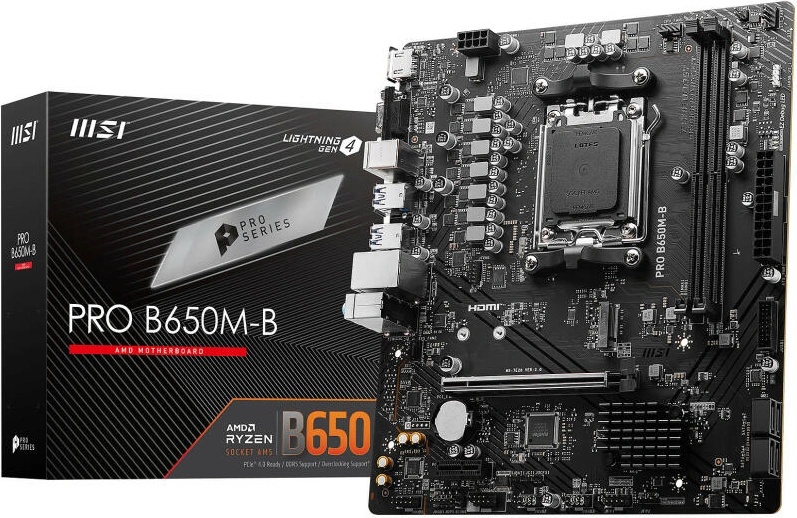

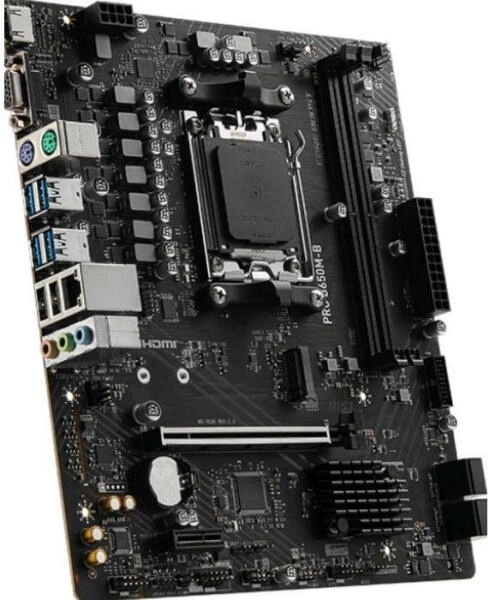

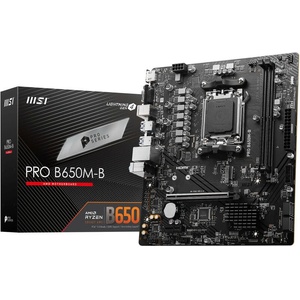

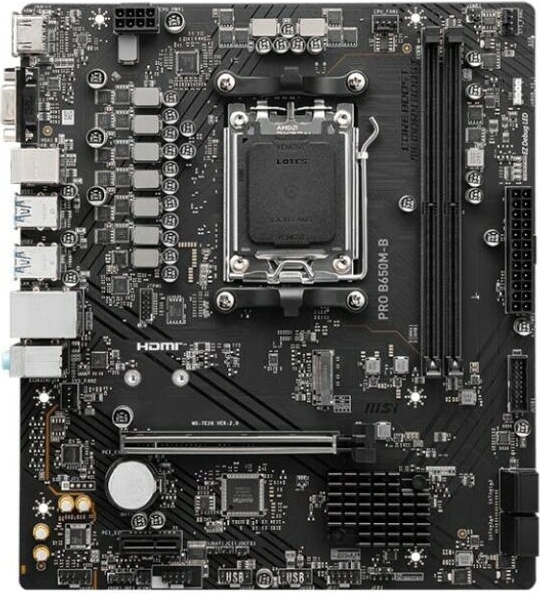

MSI PRO B650M-B   PRO B650M-B is designed with tons of flexible tools with DDR5 memory version.

• Supports AMD Ryzen 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
• Core Boost : With premium layout and digital power design to support more cores and provide better performance
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
• Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M. 2
• 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

     Tech specs: Chipset AMD B650 CPU Supports AMD Ryzen 8000/ 7000 Series Desktop Processors
Socket AM5 Memory 2x DDR5, Maximum Memory Capacity 96GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
1DPC 1R Max speed up to 6800+ MHz
1DPC 2R Max speed up to 6000+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO Onboard Graphics 1x HDMI
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Slot 1x PCI-E x16 slot
Supports x16 (For Ryzen 7000 Series processors)
Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors)
Supports x4 (For Ryzen 5 8500G processor)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)  Storage 1x M. 2
M. 2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front) LAN Realtek RTL8125BG 2.5G LAN
  Audio Realtek ALC897 Codec
7.1-Channel High Definition Audio
  Internal IO 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports LED FEATURE 4x EZ Debug LED BACK PANEL PORTS

1. HDMI
2. VGA
3. Keyboard/Mouse
4. USB 3.2 Gen 1 5Gbps (Type-A)
5. LAN port
6. Audio connectors
7. USB 2.0

OPERATING SYSTEM Support for Windows 11 64-bit, Windows 10 64-bit PCB Info mATX
215mmx243.84mm

Продукт известен още и като PRO B 650 M B, PROB650MB, PRO B650M B, PROB650M-B
