Dahua HAC-EB2401
Dahua HAC-EB2401
160,00 €
Описание, детайли - Dahua HAC-EB2401
Ценова графика
Така ще разберете кога се променя цената на стоката.
Известие за цена
Услугата Известие за цена Ви уведомява, когато цената на стоката падне под избраната стойност.
Най-ниска актуална цена: 160,00 €
Описание

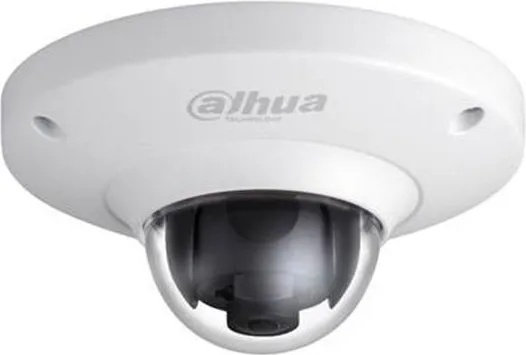

Dahua HAC-EB2401
4MP HDCVI WDR Fisheye Camera
120dB True WDR, 3DNR
Max 4MP real-time
HD and SD dual-output
1.18mm panoramic lens
IK10, DC12V
Camera
Image Sensor
1/3" CMOS
Effective Pixels
2688(H)1520(V), 4.1MP
Scanning System
Progressive
Electronic Shutter Speed
PAL:1/4s~1/100,000s
NTSC:1/3s~1/100,000s
Minimum Illumination
0.01Lux/F2.0 (Color), 0.001lux/F2.0(B/W), 30IRE
S/N Ratio
More than 65dB
IR Distance
NA
IR On/Off Control
NA
IR LEDs
NA
Lens
Lens Type
Fixed lens / Fixed iris
Mount Type
Board-in
Focal Length
1.18mm
Max Aperture
F2.0
Angle of View
H: 180
Focus Control
N/A
Close Focus Distance
100mm
3.94''
Pan / Tilt / Rotation
Pan/Tilt/Rotation
Pan: NA
Tilt: NA
Rotation: NA
Video
Resolution
4MP (25601440)
Frame Rate
25fps@4MP
Video Output
1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output
Day/Night
Auto (Electronic) / Manual
OSD Menu
Multi-language
BLC Mode
BLC / HLC / WDR
WDR
120dB
Gain Control
AGC
Noise Reduction
2D/3D
White Balance
Auto / Manual
Smart IR
NA
DORI Distance
Note: The DORI distance is a general proximity of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DORI
Definition
Distance
Detect
25px/m (8px/ft)
24m(77ft)
Observe
63px/m (19px/ft)
9m(31ft)
Recognize
125px/m (38px/ft)
5m(15ft)
Identify
250px/m (76px/ft)
2m(8ft)
Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No. 60950-1)
Eelectrical
Power Supply
12V DC 25%
Power Consumption
Max 2.2W (12V DC)
Environmental
Operating Conditions
-30C ~ +60C (-22F ~ +140F) / Less than 90% RH
* Start up should be done at above -30C (-22F)
Storage Conditions
-30C ~ +60C (-22F ~ +140F) / Less than 90% RH
Ingress Protection & Vandal Resistance
IK10
Construction
Casing
Aluminium
Dimensions
φ110mm56mm (φ4.3"2.2")
Net Weight
0.41kg (0.9lb)
Gross Weight
0.45kg (0.99lb)
Продукт известен още и като HAC EB 2401, HACEB2401, HAC EB2401, HAC-EB 2401
4MP HDCVI WDR Fisheye Camera
120dB True WDR, 3DNR
Max 4MP real-time
HD and SD dual-output
1.18mm panoramic lens
IK10, DC12V
Camera
Image Sensor
1/3" CMOS
Effective Pixels
2688(H)1520(V), 4.1MP
Scanning System
Progressive
Electronic Shutter Speed
PAL:1/4s~1/100,000s
NTSC:1/3s~1/100,000s
Minimum Illumination
0.01Lux/F2.0 (Color), 0.001lux/F2.0(B/W), 30IRE
S/N Ratio
More than 65dB
IR Distance
NA
IR On/Off Control
NA
IR LEDs
NA
Lens
Lens Type
Fixed lens / Fixed iris
Mount Type
Board-in
Focal Length
1.18mm
Max Aperture
F2.0
Angle of View
H: 180
Focus Control
N/A
Close Focus Distance
100mm
3.94''
Pan / Tilt / Rotation
Pan/Tilt/Rotation
Pan: NA
Tilt: NA
Rotation: NA
Video
Resolution
4MP (25601440)
Frame Rate
25fps@4MP
Video Output
1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output
Day/Night
Auto (Electronic) / Manual
OSD Menu
Multi-language
BLC Mode
BLC / HLC / WDR
WDR
120dB
Gain Control
AGC
Noise Reduction
2D/3D
White Balance
Auto / Manual
Smart IR
NA
DORI Distance
Note: The DORI distance is a general proximity of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DORI
Definition
Distance
Detect
25px/m (8px/ft)
24m(77ft)
Observe
63px/m (19px/ft)
9m(31ft)
Recognize
125px/m (38px/ft)
5m(15ft)
Identify
250px/m (76px/ft)
2m(8ft)
Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No. 60950-1)
Eelectrical
Power Supply
12V DC 25%
Power Consumption
Max 2.2W (12V DC)
Environmental
Operating Conditions
-30C ~ +60C (-22F ~ +140F) / Less than 90% RH
* Start up should be done at above -30C (-22F)
Storage Conditions
-30C ~ +60C (-22F ~ +140F) / Less than 90% RH
Ingress Protection & Vandal Resistance
IK10
Construction
Casing
Aluminium
Dimensions
φ110mm56mm (φ4.3"2.2")
Net Weight
0.41kg (0.9lb)
Gross Weight
0.45kg (0.99lb)
Продукт известен още и като HAC EB 2401, HACEB2401, HAC EB2401, HAC-EB 2401
