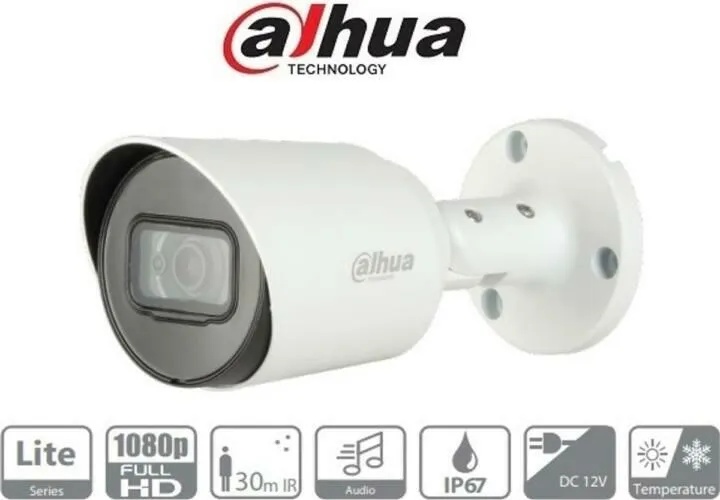

Dahua HAC-HFW1200T-A-0280B-S5

Camera
Image Sensor
1/2.7 inch CMOS

Effective Pixels
1920(H)×1080(V), 2MP

Scanning System
Progressive

Electronic Shutter Speed
PAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s

S/N Ratio
>65dB

Minimum Illumination
0.02Lux/F1.9, 30IRE, 0Lux IR on

Fill Light Working Distance
30 m (98.4 ft)

IR On/Off Control
Auto; manual

IR LED Number
1

Pan/Tilt/Rotation Range
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens
Lens Type
Fixed-focal

Mount Type
M12

Focal Length
2.8 mm; 3.6 mm; 6 mm

Max. Aperture
F1.9

Field of View
2.8 mm: 119° x 101° x 54°

(diagonal x horizontal x vertical)
3.6 mm: 100° x 84° x 45°

(diagonal x horizontal x vertical)
6 mm: 60° x 56° x 30° (diagonal x horizontal x vertical)

Iris Type

Fixed iris

Close Focus Distance

2.8 mm: 0.5 m (1.7 ft)
3.6 mm: 0.8 m (2.6 ft)
6 mm: 2 m (6.6 ft)

Video

Frame Rate

CVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps;
AHD: 1080P@25/30fps; 720P@25/30fps;
TVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps;
CVBS: 960H

Resolution
1080P (1920×1080); 720P (1280×720); 960H (960× 576/960×480)

Day/Night
Auto switch by ICR

BLC
BLC/HLC/DWDR

WDR
DWDR

White Balance
Auto; manual

Gain Control
Auto; manual

Noise Reduction
2D NR

Smart IR
Yes

Electronic Defog
Yes

Mirror
Off/On

Privacy Masking
Off/On (8 area, rectangle)
Certifications

Certifications
Certifications
CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No. 60950-1)

Port
Audio Output
One channel built-in mic (-A)

Video Output
Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power
Power Supply
12V ±30% DC

Power Consumption
Max 3.3W (12V DC, IR on)

Environment
Operating Temperature
-40°C to +60°C (-40°F to 140°F);
