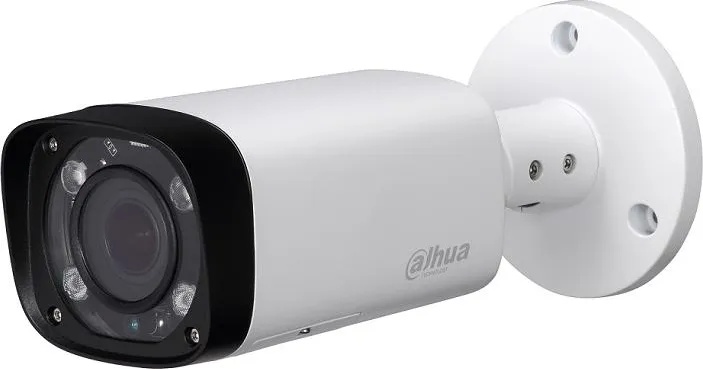

HAC-HFW1400R-VF-IRE6

4MP HDCVI IR Bullet Camera
Max 30fps@4MP
HD and SD output switchable
2.7-13.5mm vari-focal lens
Max. IR length 60m, Smart IR
IP67, DC12V

Camera:

Image Sensor- 1/3" CMOS

Effective Pixels- 2688(H)×1520(V), 4.1MP

Scanning System- Progressive

Electronic Shutter Speed:
PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s

Minimum Illumination- 0.03Lux/F1.3, 30IRE, 0Lux IR on

S/N Ratio- More than 65dB

IR Distance- Up to 60m (197feet)

IR On/Off Control- Auto / Manual

IR LEDs- 4

Lens:

Lens Type- Vari-focal lens / Fixed iris

Mount Type- Board-in

Focal Length- 2.7-13.5mm

Max Aperture- F1.3

Angle of View- H: 98°~26°

Focus Control- Manual

Close Focus Distance:
200mm 7.87''

Pan / Tilt / Rotation:

Pan/Tilt/Rotation:
Pan: 0° ~ 360°
Tilt: 0° ~ 87°
Rotation: 0° ~ 360°

Video:

Resolution- 4MP (2560×1440)

Frame Rate- 25/30fps@4MP, 25/30fps@1080P, 25/30fps@720P

Video Output- 1-channel BNC HDCVI high definition video output / CVBS video output (Can switch)

Day/Night- Auto (ICR) / Manual

OSD Menu- Multi-language

BLC Mode- BLC / HLC / DWDR

WDR- DWDR

Gain Control- AGC

Noise Reduction- 2D

White Balance- Auto / Manual

Smart IR- Auto / Manual

Certifications:
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No. 60950-1)

Interface:

Audio Interface- N/A

Eelectrical:

Power Supply- 12V DC ±25%

Power Consumption- Max 7.6W (12V DC, IR on)

Environmental:

Operating Conditions- -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH

* Start up should be done at above -40°C (-40°F)

Storage Conditions- -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH

Ingress Protection &Vandal Resistance- IP67

Construction:

Casing- Aluminium

Dimensions- 213.0mm×90.4mm×90.4mm (8.39"×3.56"×3.56")

Net Weight- 0.63kg (1.39lb)

Gross Weight- 0.77kg (1.70lb)
