Dahua HAC-HFW2401R-Z-IRE6
268,00 лв.
Безплатна доставка, В наличностВид:
Най-евтини оферти (1)
Описание на продукта
Параметри на продукта
Производител
DAHUA
Параметри на продукта
Производител
DAHUA
Описание на продукта

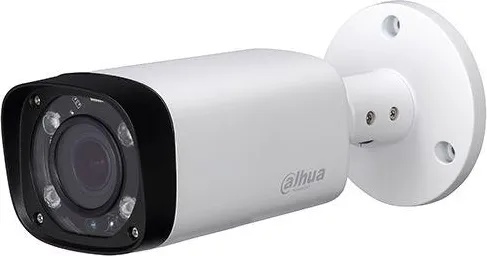

Dahua HAC-HFW2401R-Z-IRE6
4MP WDR HDCVI IR Bullet Camera
120dB True WDR, 3DNR
Max 4MP real-time
HD and SD dual-output
2.7-13.5mm motorized lens
Max. IR length 60m, Smart IR
IP67, DC12V
Camera
Image Sensor
1/3" CMOS
Effective Pixels
2688(H)×1520(V), 4.1MP
Scanning System
Progressive
Electronic Shutter Speed
PAL: 1/4s~1/100,000s
NTSC: 1/3s~1/100,000s
Minimum Illumination
0.01Lux/F1.3, 30IRE, 0Lux IR on
S/N Ratio
More than 65dB
IR Distance
Up to 60m (197feet)
IR On/Off Control
Auto / Manual
IR LEDs
4
Lens
Lens Type
Motorized lens / Fixed iris
Mount Type
Board-in
Focal Length
2.7-13.5mm
Max Aperture
F1.3
Angle of View
H: 98°~26°
Focus Control
Auto / Manual
Close Focus Distance
200mm
7.87''
Pan / Tilt / Rotation
Pan/Tilt/Rotation
Pan: 0° ~ 360°
Tilt: 0° ~ 87°
Rotation: 0° ~ 360°
Video
Resolution
4MP (2560×1440)
Frame Rate
25fps@4MP, 25/30fps@1080P, 25/30fps@720P
Video Output
1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output
Day/Night
Auto (ICR) / Manual
OSD Menu
Multi-language
BLC Mode
BLC / HLC / WDR
WDR
120dB
Gain Control
AGC
Noise Reduction
2D/3D
White Balance
Auto / Manual
Smart IR
Auto / Manual
DORI Distance
Note: The DORI distance is a general proximity of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DORI
Definition
Distance
Wide
Tele
Detect
25px/m (8px/ft)
64m(210ft)
222m(728ft)
Observe
63px/m (19px/ft)
26m(84ft)
89m(291ft)
Recognize
125px/m (38px/ft)
13m(42ft)
44m(146ft)
Identify
250px/m (76px/ft)
6m(21ft)
22m(73ft)
Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No. 60950-1)
Interface
Audio Interface
N/A
Eelectrical
Power Supply
12V DC ±25%
Power Consumption
Max 11.1W (12V DC, IR on)
Environmental
Operating Conditions
-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
* Start up should be done at above -30°C (-22°F)
Storage Conditions
-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal Resistance
IP67
Construction
Casing
Aluminium
Dimensions
213.0mm×90.4mm×90.4mm (8.39"×3.56"×3.56")
Net Weight
0.61kg (1.34lb)
Gross Weight
0.74kg (1.63lb)
4MP WDR HDCVI IR Bullet Camera
120dB True WDR, 3DNR
Max 4MP real-time
HD and SD dual-output
2.7-13.5mm motorized lens
Max. IR length 60m, Smart IR
IP67, DC12V
Camera
Image Sensor
1/3" CMOS
Effective Pixels
2688(H)×1520(V), 4.1MP
Scanning System
Progressive
Electronic Shutter Speed
PAL: 1/4s~1/100,000s
NTSC: 1/3s~1/100,000s
Minimum Illumination
0.01Lux/F1.3, 30IRE, 0Lux IR on
S/N Ratio
More than 65dB
IR Distance
Up to 60m (197feet)
IR On/Off Control
Auto / Manual
IR LEDs
4
Lens
Lens Type
Motorized lens / Fixed iris
Mount Type
Board-in
Focal Length
2.7-13.5mm
Max Aperture
F1.3
Angle of View
H: 98°~26°
Focus Control
Auto / Manual
Close Focus Distance
200mm
7.87''
Pan / Tilt / Rotation
Pan/Tilt/Rotation
Pan: 0° ~ 360°
Tilt: 0° ~ 87°
Rotation: 0° ~ 360°
Video
Resolution
4MP (2560×1440)
Frame Rate
25fps@4MP, 25/30fps@1080P, 25/30fps@720P
Video Output
1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output
Day/Night
Auto (ICR) / Manual
OSD Menu
Multi-language
BLC Mode
BLC / HLC / WDR
WDR
120dB
Gain Control
AGC
Noise Reduction
2D/3D
White Balance
Auto / Manual
Smart IR
Auto / Manual
DORI Distance
Note: The DORI distance is a general proximity of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DORI
Definition
Distance
Wide
Tele
Detect
25px/m (8px/ft)
64m(210ft)
222m(728ft)
Observe
63px/m (19px/ft)
26m(84ft)
89m(291ft)
Recognize
125px/m (38px/ft)
13m(42ft)
44m(146ft)
Identify
250px/m (76px/ft)
6m(21ft)
22m(73ft)
Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No. 60950-1)
Interface
Audio Interface
N/A
Eelectrical
Power Supply
12V DC ±25%
Power Consumption
Max 11.1W (12V DC, IR on)
Environmental
Operating Conditions
-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
* Start up should be done at above -30°C (-22°F)
Storage Conditions
-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal Resistance
IP67
Construction
Casing
Aluminium
Dimensions
213.0mm×90.4mm×90.4mm (8.39"×3.56"×3.56")
Net Weight
0.61kg (1.34lb)
Gross Weight
0.74kg (1.63lb)
Липсва или е неправилен важен параметър? Предоставената информация е само за ориентиране, затова ви съветваме да проверите дали предлаганият продукт има ключовите параметри от които се нуждаете, преди да купите от магазина по ваш избор. Въпреки че се стремим към максимална точност на информацията, за съжаление не можем винаги да гарантираме 100% съответствие. Цените на продуктите са с включен ДДС.
