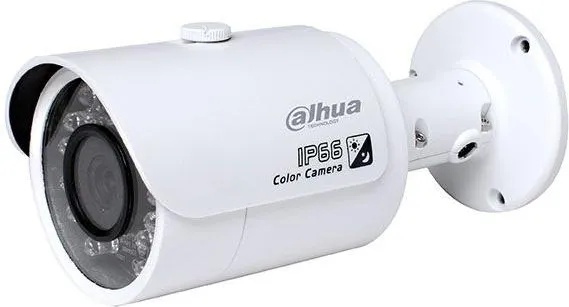

Dahua HAC-HFW2401S

Dahua HAC-HFW2401S-0360B

4MP HDCVI WDR IR Bullet Camera
120dB True WDR, 3DNR
Max 4MP real-time
HD and SD dual-output
3.6mm fixed lens (2.8mm, 6mm optional)
Max. IR length 30m, Smart IR
IP67, DC12V

Camera
Image Sensor
1/3" CMOS

Effective Pixels
2688(H)1520(V), 4.1MP

Scanning System
Progressive

Electronic Shutter Speed
PAL: 1/4s~1/100,000s
NTSC: 1/3s~1/100,000s

Minimum Illumination
0.01Lux/F1.5, 30IRE, 0Lux IR on

S/N Ratio
More than 65dB

IR Distance
Up to 30m (98feet)

IR On/Off Control
Auto / Manual

IR LEDs
18

Lens
Lens Type
Fixed lens / Fixed iris

Mount Type
Board-in

Focal Length
3.6mm (2.8mm, 6mm Optional)

Max Aperture
F1.5

Angle of View
H: 79 (99.7/48.6)

Focus Control
N/A

Close Focus Distance
1500mm (900mm, 1700mm)
59.06'' (35.43'', 66.93'')

Pan / Tilt / Rotation
Pan/Tilt/Rotation
Pan: 0 ~ 360
Tilt: 0 ~ 90
Rotation: 0 ~ 360

Video
Resolution
4MP (25601440)

Frame Rate
25fps@4MP, 25/30fps@1080P, 25/30fps@720P

Video Output
1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output

Day/Night
Auto (ICR) / Manual

OSD Menu
Multi-language

BLC Mode
BLC / HLC / WDR
WDR
120dB

Gain Control
AGC

Noise Reduction
2D/3D

White Balance
Auto / Manual

Smart IR
Auto / Manual

DORI Distance
Note: The DORI distance is a general proximity of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

DORI
Definition
Distance
Detect
25px/m (8px/ft)
2.8mm:63m(208ft)
3.6mm: 80m(262ft)
6mm:120m(394ft)

Observe
63px/m (19px/ft)
2.8mm:25m(83ft)
3.6mm: 32m(105ft)
6mm:48m(157ft)

Recognize
125px/m (38px/ft)
2.8mm:13m(42ft)
3.6mm: 16m(52ft)
6mm: 24m(79ft)

Identify
250px/m (76px/ft)
2.8mm:6m(21ft)
3.6mm: 8m(26ft)
6mm: 12m(39ft)

Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No. 60950-1)

Interface
Audio Interface
N/A

Eelectrical
Power Supply
12V DC 25%

Power Consumption
Max 4.9W (12V DC, IR on)

Environmental
Operating Conditions
-30C ~ +60C (-22F ~ +140F) / Less than 90% RH
* Start up should be done at above -30C (-22F)

Storage Conditions
-30C ~ +60C (-22F ~ +140F) / Less than 90% RH

Ingress Protection & Vandal Resistance
IP67

Construction

Casing
Aluminium

Dimensions
164.7mm70mm71.6mm (6.48"2.76"2.82")

Net Weight
0.35kg (0.77lb)

Gross Weight
0.44kg (0.97lb)
