Dahua HAC-HUM1220A-PIR
133,00 лв.
Безплатна доставка, В наличностВид:
Най-евтини оферти (1)
Описание на продукта
Параметри на продукта
Производител
DAHUA
Параметри на продукта
Производител
DAHUA
Описание на продукта

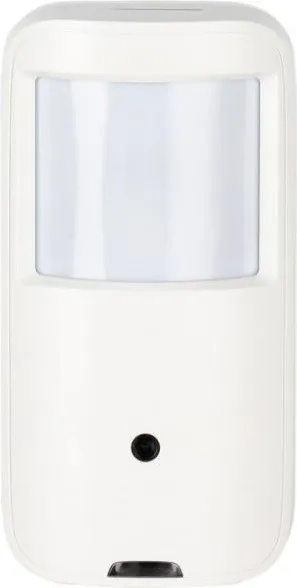

Dahua HAC-HUM1220A-PIR
2MP HDCVI MotionEye Camera
Max 30fps@1080P
HD and SD output switchable
2.8mm fixed lens
12m/100°detecting range/angle
Two level detection sensitivity adjustable
Built-in tamper switch
DC12V
Camera
Image Sensor
1/2.9" CMOS
Effective Pixels
1920(H)×1080(V), 2MP
Scanning System
Progressive
Electronic Shutter Speed
PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s
Minimum Illumination
0.02Lux/F2.0(Color), 0.002Lux/F2.0(B/W)
S/N Ratio
More than 65dB
Lens
Lens Type
Fixed lens / Fixed iris
Mount Type
Board-in
Focal Length
2.8mm
Max Aperture
F2.0
Angle of View
H: 100.5°
Focus Control
N/A
Close Focus Distance
500mm
19.7''
DORI Distance
Note: The DORI distance is a general proximity of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DORI
Definition
Distance
Detect
25px/m
(8px/ft)
44m(143ft)
Observe
63px/m
(19px/ft)
17m(57ft)
Recognize
125px/m
(38px/ft)
9m(29ft)
Identify
250ppm
(76px/ft)
4m(14ft)
Pan / Tilt / Rotation
Pan/Tilt/Rotation
Pan: 0° ~ 180°
Tilt: 0° ~ 180°
Rotation: 0° ~ 360°
Video
Resolution
1080P (1920×1080)
Frame Rate
25/30fps@1080P, 25/30/50/60fps@720P
Video Output
1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night
Auto (Electronic) / Manual
OSD Menu
Multi-language
BLC Mode
BLC / HLC / DWDR
WDR
DWDR
Gain Control
AGC
Noise Reduction
2D
White Balance
Auto / Manual
PIR
Detection
Passive infrared
Detection Range
12mx12m, 100°, 19zones
Alarm prompt
Red led, can be set to switch off
Sensitivity
Two level (jumper)
Pet immunity
≤18Kg
Resistance light
6500LUX
Installation height
Defualt bracket, wall mount, 2.2-2.5m
Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No. 60950-1)
Interface
Audio Interface
N/A
Eelectrical
Power Supply
12V DC ±25%
Power Consumption
Max 0.7W (12V DC, IR on)
Environmental
Operating Conditions
-10°C ~ +50°C (14°F ~ +122°F) / Less than 90% RH
* Start up should be done at above -10°C (14°F)
Storage Conditions
-10°C ~ +50°C (14°F ~ +122°F) / Less than 90% RH
Ingress Protection & Vandal Resistance
N/A
Construction
Casing
Plastic
Dimensions
120mm×62mm×58mm (4.72"×2.44"×2.28")
Net Weight
0.13kg (0.29lb)
Gross Weight
0.18kg (0.40lb)
2MP HDCVI MotionEye Camera
Max 30fps@1080P
HD and SD output switchable
2.8mm fixed lens
12m/100°detecting range/angle
Two level detection sensitivity adjustable
Built-in tamper switch
DC12V
Camera
Image Sensor
1/2.9" CMOS
Effective Pixels
1920(H)×1080(V), 2MP
Scanning System
Progressive
Electronic Shutter Speed
PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s
Minimum Illumination
0.02Lux/F2.0(Color), 0.002Lux/F2.0(B/W)
S/N Ratio
More than 65dB
Lens
Lens Type
Fixed lens / Fixed iris
Mount Type
Board-in
Focal Length
2.8mm
Max Aperture
F2.0
Angle of View
H: 100.5°
Focus Control
N/A
Close Focus Distance
500mm
19.7''
DORI Distance
Note: The DORI distance is a general proximity of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DORI
Definition
Distance
Detect
25px/m
(8px/ft)
44m(143ft)
Observe
63px/m
(19px/ft)
17m(57ft)
Recognize
125px/m
(38px/ft)
9m(29ft)
Identify
250ppm
(76px/ft)
4m(14ft)
Pan / Tilt / Rotation
Pan/Tilt/Rotation
Pan: 0° ~ 180°
Tilt: 0° ~ 180°
Rotation: 0° ~ 360°
Video
Resolution
1080P (1920×1080)
Frame Rate
25/30fps@1080P, 25/30/50/60fps@720P
Video Output
1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night
Auto (Electronic) / Manual
OSD Menu
Multi-language
BLC Mode
BLC / HLC / DWDR
WDR
DWDR
Gain Control
AGC
Noise Reduction
2D
White Balance
Auto / Manual
PIR
Detection
Passive infrared
Detection Range
12mx12m, 100°, 19zones
Alarm prompt
Red led, can be set to switch off
Sensitivity
Two level (jumper)
Pet immunity
≤18Kg
Resistance light
6500LUX
Installation height
Defualt bracket, wall mount, 2.2-2.5m
Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No. 60950-1)
Interface
Audio Interface
N/A
Eelectrical
Power Supply
12V DC ±25%
Power Consumption
Max 0.7W (12V DC, IR on)
Environmental
Operating Conditions
-10°C ~ +50°C (14°F ~ +122°F) / Less than 90% RH
* Start up should be done at above -10°C (14°F)
Storage Conditions
-10°C ~ +50°C (14°F ~ +122°F) / Less than 90% RH
Ingress Protection & Vandal Resistance
N/A
Construction
Casing
Plastic
Dimensions
120mm×62mm×58mm (4.72"×2.44"×2.28")
Net Weight
0.13kg (0.29lb)
Gross Weight
0.18kg (0.40lb)
