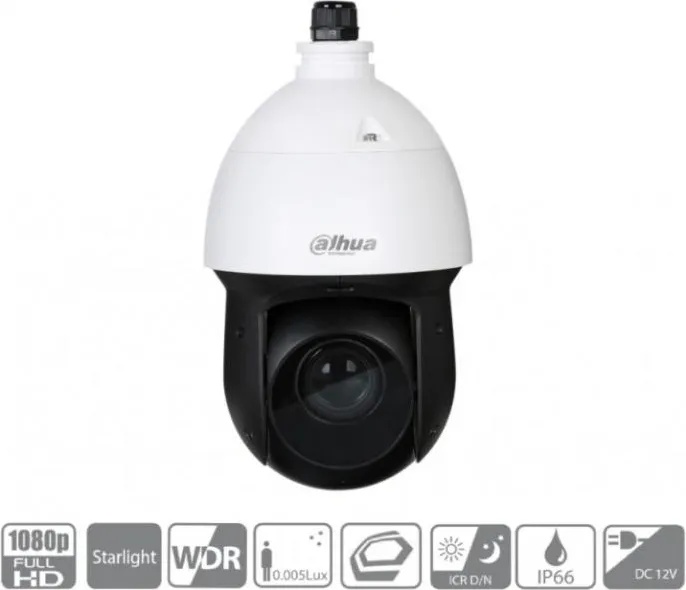

Dahua SD49225-HC-LA

Camera
Image Sensor
1/2.8" STARVIS CMOS

Pixel
2MP

Max. Resolution
1920 (H) x 1080 (V)

ROM
16 MB

RAM
256 MB

Electronic Shutter Speed
1/3 s–1/100000 s

Scanning System
Progressive

Min. Illumination
Color: 0.005 [email protected]
B/W: 0.0005 [email protected]
0 [email protected] (IR on)

Illumination Distance
100 m (328.08 ft)

Illuminator On/Off Control
Auto/Manual

Illuminator Number
6

Lens

Focal Length

4.8 mm–120 mm

Max. Aperture

F1.6–F3.5

Field of View

H: 58.5°–2.8°;

V: 33.2°–1.5°;

D: 67.5°–3.2°

Optical Zoom

25x

Focus Control

Auto/Semi-Auto/Manual

Close Focus Distance

0.1 m–1.5 m (0.33 ft–4.92 ft)

Iris Control

Auto/Manual

DORI Distance

Detect
1655.2 m (5430.45 ft)

Observe
656.8 m (2154.86 ft)

Recognize
331.0 m (1085.96 ft)

Identify
165.5 m (542.98 ft)

PTZ

Pan/Tilt Range
Pan: 0°–360°Tilt: -15°–+90°; auto flip 180°

Manual Control Speed
Pan: 0.1°–200°/s; Tilt: 0.1°–120°/s

Preset Speed
Pan: 240°/s; Tilt: 200°/s

Presets
300

Tour
8 (up to 32 presets per tour)

Pattern
5

Scan
5

Speed Adjustment
Support

Power-off Memory
Support

Idle Motion
Preset/Tour/Pattern/Scanning

Protocol
DH-SD
Pelco-P/D (auto recognition)

Video

Resolution
1080P (1920 × 1080); 720P (1280 × 720);
D1 (704 × 576/704 × 480)

Frame Rate
1080P (25/30 fps), 720P (25/30/50/60 fps)

Day/Night
Support

BLC
Support

WDR
120 dB

HLC
Support

White Balance
Auto/Indoor/Outdoor/Tracking/Manual/ Sodium lamp/Natural light/Street lamp

Gain Control
Auto/Manual

Noise Reduction
2D/3D

Defog

Electronic

Digital Zoom
16x

Flip
0°/180°

Privacy Masking
Up to 24 areas

CVI Product Output Mode
CVI; TVI; AHD; CVBS

Audio
Compression
G. 711a; G. 711Mu

Certification

Certifications
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014
UL: UL60950-1+CAN/CSA C22.2, No. 60950-1

Port
Audio Input
1 (LINE IN; bare wire)

Alarm Input
2

Alarm Output
1

Power
Power Supply
DC 12V/3A ± 10%

Power Consumption
9.6 W
23.2 W (IR light on, PTZ)

Environment
Operating Temperature
–40°C to +70°C (–40°F to +158°F)

Operating Humidity
≤ 95%RH

Protection
IP66; TVS 6000V lightning protection; surge protection

Structure
Dimensions
295.4 mm × Φ160.0 mm (11.63" × Φ6.30")

Net Weight
3 kg (6.61 lb)
Gross Weight
4.2 kg (9.26 lb)
