Dahua SD59230I-HC
1284,00 лв.
Безплатна доставка, В наличностВид:
Най-евтини оферти (2)
Описание на продукта
Параметри на продукта
Производител
DAHUA
Параметри на продукта
Производител
DAHUA
Описание на продукта

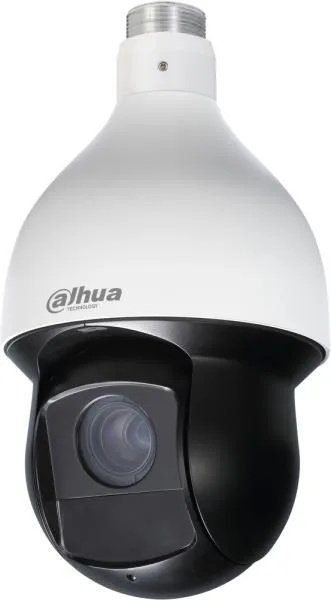

Dahua SD59230I-HC
2MP 30x Starlight IR PTZ HDCVI Camera
1/2.8 2Megapixel STARVIS CMOS
Powerful 30x optical zoom
Starlight technology
120dB true WDR, 3D DNR
Max. 25/30fps@1080P, 25/30/50/60fps@720P
IR distance up to 150m
IP66
Camera
Image Sensor
1/2.8 STARVIS CMOS
Effective Pixels
1920(H) x 1080(V), 2 Megapixels
Scanning System
Progressive
Electronic Shutter Speed
1/3s~1/300,000s
Minimum Illumination
Color: [email protected]; [email protected] (IR on)
S/N Ratio
More than 55dB
IR Distance
Distance up to 150m (492ft)
IR On/Off Control
Auto/Manual
IR LEDs
4
Lens
Focal Length
4.5mm~135mm
Max. Aperture
F1.6 ~ F5.0
Angle of View
H: 67.8° ~ 2.4°
Optical Zoom
30x
Focus Control
Auto/Manual
Close Focus Distance
100mm~ 1000mm
DORI Distance
Note: The DORI distance is a general proximity of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
Detect
Observe
Recognize
Identify
1862m(6109ft)
744m(2441ft)
372m(1220ft)
186m(610ft)
PTZ
Pan/Tilt Range
Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180°
Manual Control Speed
Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s
Preset Speed
Pan: 400° /s; Tilt: 300° /s
Presets
300
PTZ Mode
5 Pattern, 8 Tour, Auto Pan , Auto Scan
Speed Setup
Human-oriented focal Length/ speed adaptation
Power up Action
Auto restore to previous PTZ and lens status after power failure
Idle Motion
Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol
DH-SD, Pelco-P/D (Auto recognition)
Video
Resolution
1080P(1920×1080)/720P(1280×720)
Frame Rate
25/30fps@1080P, 25/30/50/60fps@720P
Video Output
1-channel BNC high definition video output/ CVBS standard definition video output (switchable)
Day/Night
Auto(ICR) / Color / B/W
OSD Menu
Support
Backlight Compensation
BLC / HLC / WDR (120dB)
White Balance
Auto, ATW, Indoor, Outdoor, Manual
Gain Control
Auto / Manual
Noise Reduction
Ultra DNR (2D/3D)
Digital Zoom
16x
Flip
180°
Privacy Masking
Up to 24 areas
Certifications
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2, No. 60950-1
Interface
Video Interface
1
Audio Interface
1 channel in
RS485
1
Alarm I/O
2/1
Electrical
Power Supply
AC24V/3A(±10%)
Power Consumption
13W, 23W (IR on)
Environmental
Operating Conditions
-40°C ~ 70°C (-40°F ~ +158°F) / Less than 90% RH
Ingress Protection
IP66
Vandal Resistance
N/A
Construction
Casing
Metal
Dimensions
Φ186.0(mm) x 309(mm)
Net Weight
3.5kg(7.72lb)
Gross Weight
6.8kg(14.99lb)
2MP 30x Starlight IR PTZ HDCVI Camera
1/2.8 2Megapixel STARVIS CMOS
Powerful 30x optical zoom
Starlight technology
120dB true WDR, 3D DNR
Max. 25/30fps@1080P, 25/30/50/60fps@720P
IR distance up to 150m
IP66
Camera
Image Sensor
1/2.8 STARVIS CMOS
Effective Pixels
1920(H) x 1080(V), 2 Megapixels
Scanning System
Progressive
Electronic Shutter Speed
1/3s~1/300,000s
Minimum Illumination
Color: [email protected]; [email protected] (IR on)
S/N Ratio
More than 55dB
IR Distance
Distance up to 150m (492ft)
IR On/Off Control
Auto/Manual
IR LEDs
4
Lens
Focal Length
4.5mm~135mm
Max. Aperture
F1.6 ~ F5.0
Angle of View
H: 67.8° ~ 2.4°
Optical Zoom
30x
Focus Control
Auto/Manual
Close Focus Distance
100mm~ 1000mm
DORI Distance
Note: The DORI distance is a general proximity of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
Detect
Observe
Recognize
Identify
1862m(6109ft)
744m(2441ft)
372m(1220ft)
186m(610ft)
PTZ
Pan/Tilt Range
Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180°
Manual Control Speed
Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s
Preset Speed
Pan: 400° /s; Tilt: 300° /s
Presets
300
PTZ Mode
5 Pattern, 8 Tour, Auto Pan , Auto Scan
Speed Setup
Human-oriented focal Length/ speed adaptation
Power up Action
Auto restore to previous PTZ and lens status after power failure
Idle Motion
Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol
DH-SD, Pelco-P/D (Auto recognition)
Video
Resolution
1080P(1920×1080)/720P(1280×720)
Frame Rate
25/30fps@1080P, 25/30/50/60fps@720P
Video Output
1-channel BNC high definition video output/ CVBS standard definition video output (switchable)
Day/Night
Auto(ICR) / Color / B/W
OSD Menu
Support
Backlight Compensation
BLC / HLC / WDR (120dB)
White Balance
Auto, ATW, Indoor, Outdoor, Manual
Gain Control
Auto / Manual
Noise Reduction
Ultra DNR (2D/3D)
Digital Zoom
16x
Flip
180°
Privacy Masking
Up to 24 areas
Certifications
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2, No. 60950-1
Interface
Video Interface
1
Audio Interface
1 channel in
RS485
1
Alarm I/O
2/1
Electrical
Power Supply
AC24V/3A(±10%)
Power Consumption
13W, 23W (IR on)
Environmental
Operating Conditions
-40°C ~ 70°C (-40°F ~ +158°F) / Less than 90% RH
Ingress Protection
IP66
Vandal Resistance
N/A
Construction
Casing
Metal
Dimensions
Φ186.0(mm) x 309(mm)
Net Weight
3.5kg(7.72lb)
Gross Weight
6.8kg(14.99lb)
Липсва или е неправилен важен параметър? Предоставената информация е само за ориентиране, затова ви съветваме да проверите дали предлаганият продукт има ключовите параметри от които се нуждаете, преди да купите от магазина по ваш избор. Въпреки че се стремим към максимална точност на информацията, за съжаление не можем винаги да гарантираме 100% съответствие. Цените на продуктите са с включен ДДС.
Продуктът все още няма отзиви.
