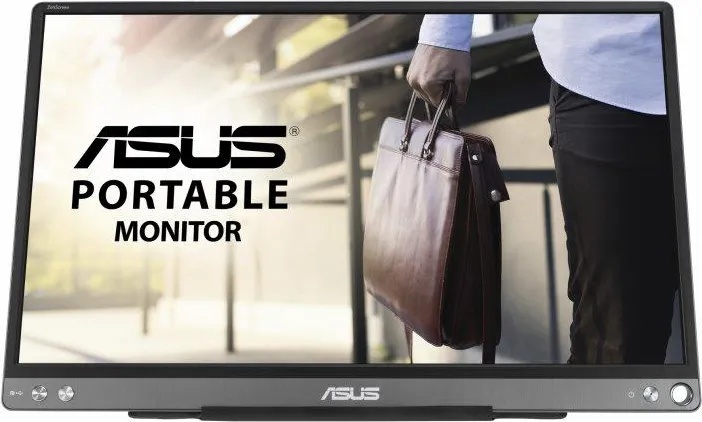

ASUS ZenScreen MB16ACE







ASUS ZenScreen MB16ACE Portable USB Monitor- 15.6 inch Full HD, Hybrid Signal Solution, USB Type-C, Flicker Free, Blue Light Filter, Anti-glare surface

•


  Features a hybrid-signal solution that supports power and video transmission, and enables compatibility with any laptop with a USB Type-C or Type A port





•


  Can automatically sense its orientation and switch the monitor between landscape and portrait modes





•

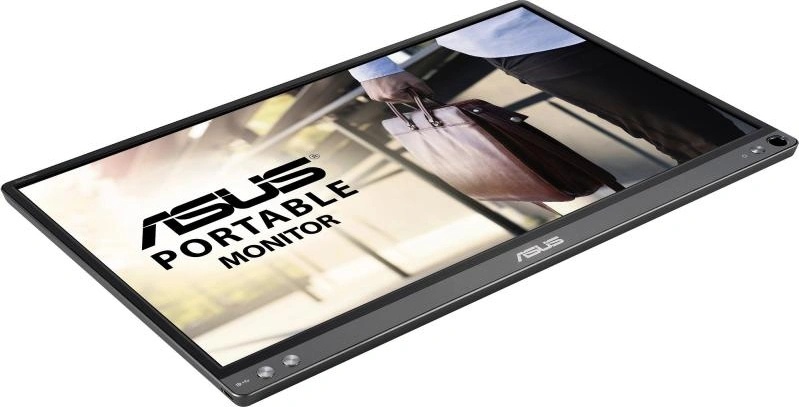

  15.6-inch Full HD portable anti-glare IPS display with an ultraslim and thin design helps you get things done more efficiently when you’re on the go





•

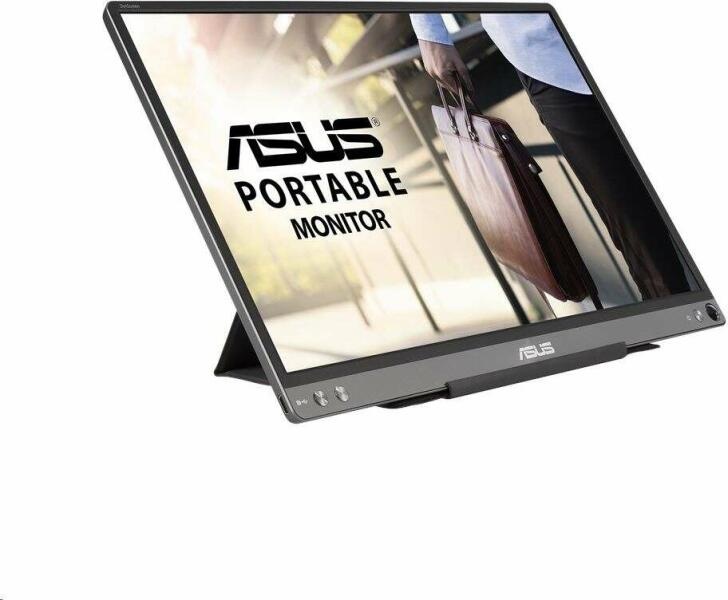

  Foldable smart case can be turned into a stand to prop the monitor up in either portrait or landscape mode





•


  ASUS Eye Care monitors feature TÜV Rheinland-certified Flicker-free and Low Blue Light technologies to ensure a comfortable viewing experience














Extend your vision. Free your world.

ASUS ZenScreen MB16ACE is designed to keep you productive, wherever you are. It's a highly portable monitor with a hybrid signal solution, which means that it only needs a single USB connector cable to be fully compatible with almost any laptop. With a super slim 8mm profile, and weighing just 0.71 kg, ZenScreen MB16ACE is also the lightest 15.6 inch companion display monitor.















Hybrid-signal solution: USB Type-A and Type-C support

ZenScreen MB16ACE only requires a single USB connection for both power and video transmission from your host device. It features an innovative hybrid-signal solution with native support for USB Type-C (USB-C) connections, and uses an installed driver* to support USB Type-A connectors for full compatibility. The reversible, any-way-up USB-C design enables quick, hassle-free connection to any device.















Automatic screen orientation

With DisplayWidget software*, ZenScreen MB16ACE can automatically sense its orientation and switch the monitor between landscape and portrait modes. Landscape mode is ideal for presentations and Excel sheets, while Portrait mode gives you a perfect view of items such as codes, documents, books or mobile websites.

*Driver required. Auto Rotate function only works with Windows OS













Specifications

Display

Panel Size: Wide Screen 15.6"(39.6cm) 16:9

Panel Type : IPS

True Resolution : 1920x1080

Display Viewing Area(HxV) : 344.16 x 193.59 mm

Display Surface : Non-glare

Pixel Pitch : 0.179 mm

Brightness(Max) : 250 cd/㎡

Contrast Ratio (Max) : 800:1

Viewing Angle (CR≧10) : 178°(H)/178°(V)

Response Time : 5ms (Gray to Gray)

Flicker free : Yes

Video Feature

SPLENDID Video Preset Modes : 8 Modes (sRGB Mode/Scenery Mode/Theater Mode/Standard Mode/Night View Mode/Game Mode/Reading Mode/Darkroom Mode)

Skin-Tone Selection : 3 Modes

Color Temperature Selection : 4 Modes

QuickFit (modes) : Yes (Alignment Grid/Photo Modes)

GamePlus(modes) : Yes (Crosshair/Timer)

Low Blue Light : Yes

HDCP support : Yes

Auto-rotate : Yes

Display Widget

Convenient Hotkey

Blue Light Filter

I/O Ports

Signal Input : USB Type-C

Power Consumption

Power Consumption(Typical):
