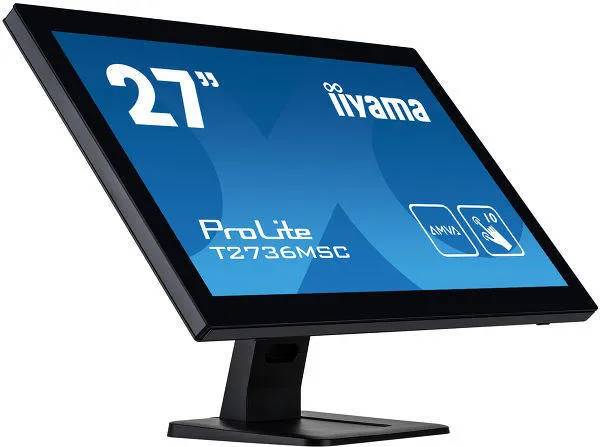

iiyama ProLite T2736MSC

Iiyama PROLITE T2736MSC-B1
27" 10 point touch monitor with edge to edge glass and AMVA panel

With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2736MSC delivers seamless and accurate touch response. The AMVA panel technology guarantees high performance with excellent colour reproduction and high contrast, making it an excellent choice for a vast array of demanding interactive applications. The flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience.

SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

DISPLAY CHARACTERISTICS
Design Edge to edge glass
Diagonal 27", 68.6cm
Panel AMVA LED
Native resolution 1920 x 1080 @60Hz (2.1 megapixel Full HD)
Aspect ratio 16:9
Brightness 300 cd/m2 typical
Brightness 255 cd/m2 with touch
Static contrast 3000:1 typical
Light transmittance 85%
Advanced contrast 12M:1
Response time 4ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 16.7mln 8bit (6bit + Hi-FRC)
Horizontal Sync 30 - 80KHz
Vertical Sync 56 - 75Hz
Viewable area W x H 597.6 x 336.15mm, 23.5 x 13.2"
Pixel pitch 0.311mm
Bezel colour and finish black, matte

TOUCH
Touch technology projective capacitive
Touch points 10 (HID, only with supported OS)
Touch method stylus, finger, glove (latex)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.

INTERFACES / CONNECTORS / CONTROLS
Analog signal input VGA x1
Digital signal input HDMI x1
DisplayPort x1
Audio output Speakers 2 x 2W
HDCP yes
USB HUB x4 (v. 3.0)

FEATURES
Glass thickness 2.2mm
OSD key lock yes

GENERAL
OSD languages EN, DE, FR, IT, RU, PL, NL, ES, JP, PT
Control buttons Scroll up / Audio Adjust / Blue Light Reducer, Scroll down / ECO, Auto, Menu, Power
User controls Picture adjust (brightness, contrast, ECO, i-Style colour, ACR), geometry (pixel clock, phase, H. position, V. position, aspect), colour settings (gamma, colour temp), OSD (H. position, V. position, OSD time, language), extra (reset, signal select, audio input, opening logo, LED, OD, information, volume, auto adjust)
Convenience Kensington-lock prepared
Blue light reducer yes
Plug&Play DDC2B

MECHANICAL
Tilt angle 73° up; 3° down
VESA mounting 100 x 100mm

ACCESSORIES INCLUDED
Cables power (1.8m), VGA (1.8m), USB (1.8m), HDMI (1.8m)
Guides quick start guide, safety guide

POWER MANAGEMENT
Power supply unit internal
Power supply AC AC - 100V, 240/V, 50Hz
Power usage 28W typical, 0.5W stand by

SUSTAINABILITY
Regulations CE, TÜV-Bauart, ErP, CU
Energy efficiency class A

DIMENSIONS / WEIGHT
Product dimensions W x H x D 659.5 x 444 x 220.5mm
Weight (without box) 7.4kg

EU ENERGY EFFICIENCY LABEL
Energy efficiency class A
ON mode power consumption 28.3W
Annual energy consumption 41kWh/annum*
Visible screen diagonal 69cm; 27"; (%3" segment)
