Iiyama ProLite XUB2492HSU-B1

Display characteristics
Diagonal
23.8"; 60.5cm

Aspect Ratio
16 : 9

Panel
IPS Panel Technology LED, matte finish

Native Resolution
Full HD 1080p, 1920 x 1080 ( 2.1 megapixel)

Brightness
250 cd/m2 typical

Contrast
1000 : 1 typical

Contrast
5 000 000 : 1 ACR

Response Time
5 ms

Viewing Zone
horizontal/vertical: 178°/ 178°; right/left: 89°/ 89°; up/down: 89°/ 89°

Display Colour
16.7 million

Blue Light Reducer
yes

Flicker Free LED
yes

Display Area H X W
296.5 x 527 mm; 11.7" x 20.7"

Pixel Pitch H X V
0.275 x 0.275 mm

Horizontal Sync
30 - 80 KHz

Vertical Sync
55 - 75 Hz

Synchronization
Separate sync

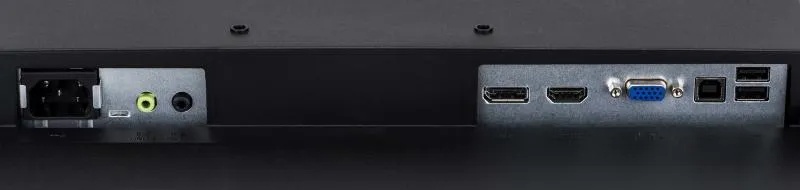

Interfaces & connectors
Analog Input Connector
VGA

Digital Input Connector
HDMI, DisplayPort

HDCP
yes

Headphone Connector
Yes

USB Hub
UP 1 x USB 2.0 / DOWN 2 x USB 2.0

Features
Apple - Mac
All iiyama monitors are compatible with Apple-Macintosh computers.

Plug & Play
VESA DDC2B

Controls
Via OSD in 11 languages (EN, DE, FR, IT, PL, ES, NL, CZ, Chinese, RU, JP) and 6 front controls (Power, Menu/ Select, +/ Volume, -/ ECO, Exit, Input)

User Controls
picture adjust (contrast, brightness, OD, ACR, ECO, blue light reducer), input select, audio adjust (volume, mute, digital audio), colour adjust, image adjust (auto adjust, H. position, V. position, clock, phase, sharpness, video mode adjust), language, setup (OSD position, OSD time out, opening logo, auto power off), display information, reset

Speakers
2 x 2 W (Stereo)

Anti-Theft-Device
Kensington-lock prepared

Certificates
CE, TÜV-GS, VCCI-B, PSE, CU

Height Adjustable Stand
Yes

Height Adjustment
130 mm

Rotation (Pivot Function)
90°

Swivel Stand
90°; 45° left; 45° right

Tilt Angle
22° up; 5° down

VESA Mounting
100 x 100 mm

Colour
Black

Power management
Power Supply
AC100~240V 50/60Hz

Power Supply Unit
external

Power Usage
16 W typical; max. 0.5 W in Power management mode

Power Management
VESA DPMS, ENERGY STAR®
EU Energy Efficiency Label

Energy Efficiency Class
A+

On Mode Power Consumption
17.5W

Annual Energy Consumption
26 kWh/annum*

Visible Screen Diagonal
60 cm; 23.8"; ( 24'' segment )

EPEAT SILVER

EPEAT
EPEAT is a comprehensive environmental rating that helps identify greener computers and other electronic equipment. The Silver certification means the monitor meets all required criteria plus at least 50% of the optional requirements. EPEAT Silver is valid in countries where iiyama registers the product. Please visit www. epeat. net for the registration status in your country.

Dimensions & weight
Dimensions W X H X D
539.5 x 376 (506) x 230 mm

Weight
5.4 kg
