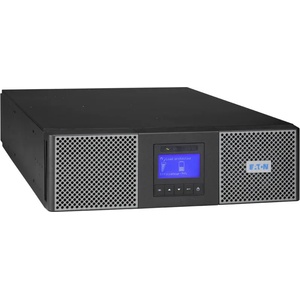

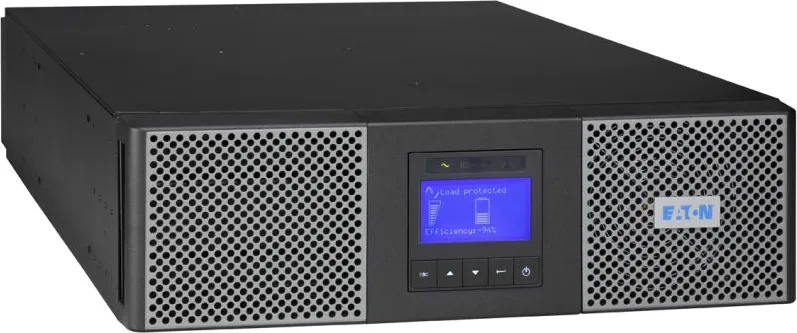

Eaton 9PX 5000i RT3U Netpack 5000VA (9PX5KiRTN)
Варианти на продукта:
48 кг|5000 VA|Да
33.9 кг|3000 VA|Не32.16 кг|2200 VA|Не10 268,40 лв.
В наличностВид:
Най-евтини оферти (1)
Описание на продукта
Параметри на продукта
Производител
Eaton
Тип
Online
Изходна мощност
5000 VA
Оформление
Секция/кула
Ефективна мощност
4500 W
Мощностен фактор
0.9
Максимално изходно напрежение
240 V
Стандарт на контакта
IEC
Комуникационен порт
Няма
LAN карта
Да
Тегло
48 кг
Параметри на продукта
Производител
Eaton
Тип
Online
Изходна мощност
5000 VA
Оформление
Секция/кула
Ефективна мощност
4500 W
Мощностен фактор
0.9
Максимално изходно напрежение
240 V
Стандарт на контакта
IEC
Комуникационен порт
Няма
LAN карта
Да
Тегло
48 кг
Описание на продукта
9PX 5000i RT3U Netpack
General:
Topology On-line double conversion with PFC (Power Factor Correction) system
Configuration Rack/Tower
Rating (VA/Watts) 5000/4500
Dimensions (H x W x D, mm) 440 x 130 x 685
Weight (kg) 48
Rail Kit Included Yes
Contents
(Ships with the following items) 9PX UPS
2 IEC output power cords
Eaton Intelligent Power Software CD
Network Management Card
USB Cable
Serial Cable
2 supports for tower mounting
2 brackets for 19’ mounting
2 universal rails
cable locking systems
Safety guide
10-language user manual
Electrical Input:
Input Voltage Range 176-276V without derating (up to 100–276V with derating)
Nominal Voltage 200/208/220/230/240V
Frequency 50/60 Hz autoselection
Frequency Range 40-70 Hz
Short Circuit Current 90 A
THDI 150%: 500ms
Efficiency (Normal Mode) Up to 94% in Online mode, 98% in Hi-Efficiency mode
Output Frequency 50/60 Hz autoselect, frequency converter as standard
Load Crest Factor 3:1
Battery:
Battery Management ABM® and Temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units.
Extended Battery Capability EBM (3U)
Communications:
User Interface Multilingual graphical LCD display
Communication Ports 1 Network management card, 1 USB port, 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously), 4 dry contacts (DB9), 1 mini terminal block for remote On/Off and 1 for remote power Off, 1 DB15 for parallel operation
Environmental & Standards:
Audible Noise
General:
Topology On-line double conversion with PFC (Power Factor Correction) system
Configuration Rack/Tower
Rating (VA/Watts) 5000/4500
Dimensions (H x W x D, mm) 440 x 130 x 685
Weight (kg) 48
Rail Kit Included Yes
Contents
(Ships with the following items) 9PX UPS
2 IEC output power cords
Eaton Intelligent Power Software CD
Network Management Card
USB Cable
Serial Cable
2 supports for tower mounting
2 brackets for 19’ mounting
2 universal rails
cable locking systems
Safety guide
10-language user manual
Electrical Input:
Input Voltage Range 176-276V without derating (up to 100–276V with derating)
Nominal Voltage 200/208/220/230/240V
Frequency 50/60 Hz autoselection
Frequency Range 40-70 Hz
Short Circuit Current 90 A
THDI 150%: 500ms
Efficiency (Normal Mode) Up to 94% in Online mode, 98% in Hi-Efficiency mode
Output Frequency 50/60 Hz autoselect, frequency converter as standard
Load Crest Factor 3:1
Battery:
Battery Management ABM® and Temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units.
Extended Battery Capability EBM (3U)
Communications:
User Interface Multilingual graphical LCD display
Communication Ports 1 Network management card, 1 USB port, 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously), 4 dry contacts (DB9), 1 mini terminal block for remote On/Off and 1 for remote power Off, 1 DB15 for parallel operation
Environmental & Standards:
Audible Noise
Липсва или е неправилен важен параметър? Предоставената информация е само за ориентиране, затова ви съветваме да проверите дали предлаганият продукт има ключовите параметри от които се нуждаете, преди да купите от магазина по ваш избор. Въпреки че се стремим към максимална точност на информацията, за съжаление не можем винаги да гарантираме 100% съответствие. Цените на продуктите са с включен ДДС.
Продуктът все още няма отзиви.
