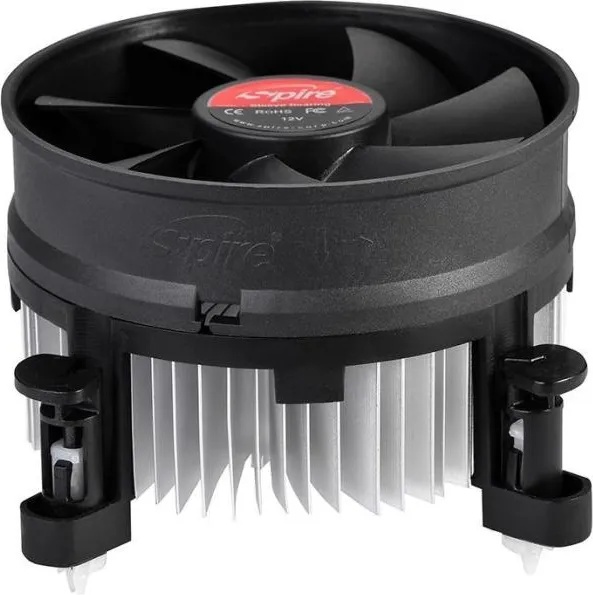

The Spire Voyager is a cost-effective cooling solution designed for Intel system integrations. Its precisely engineered omni-directional heatsink delivers reliable thermal performance while keeping noise levels to a minimum.

Equipped with a mounted 90×25 mm 12VDC fan, the Voyager ensures efficient airflow. The PWM sensor automatically regulates fan speed, reaching up to 2200 RPM when needed.

Compatible with a wide range of Intel sockets, including 1366, 1700, 1150, 1151, 1155, and 1156, the Voyager is a smart and versatile choice for system integrators building exclusively on Intel platforms.

Tested for CPUs up to 80W TDP, with a thermal performance rating of 0.376°C/W, the Spire Voyager offers a balanced mix of performance, compatibility, and value.
FEATURES

- Aluminum Omni-directional heat-sink
- 95x25mm silent DC fan
- Hydraulic Bearing fan

Specifications

Bearing Type
Sleeve bearing

Cable Length (cm)
25

Certification
CE/ROHS

Color
Fan black + radiator silver

Connectors
3 pin MOLEX 2510

Fan Size (cm)
9x9x2,5

Fan Type
DC 12V

CPU Brand
INTEL

Material
Aluminum – Copper

Rated Current (A)
0.15

Rated Power (W)
1.8

Rated Speed (RPM) +/- 10%
2200

Thermal Design Power (W)
80
