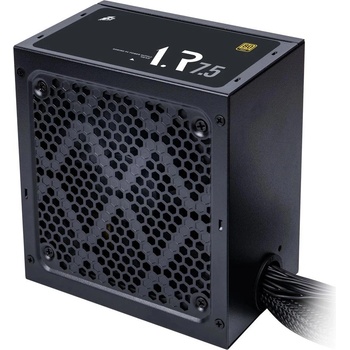

1stPlayer ARMOUR 750W 80 PLUS Gold (PS-750AR)

1stPlayer PS-750AR

To achieve near-silent operation and reliable performance and surpass the opponents, the latest ARMOUR 80+ gold series is armed with start/stop cooling fan, LLC+DC-DC structure and other premium components with competitive price. With all the latest features, the ARMOUR series is able to satisfy PC enthusiasts who are looking for a premium power supply.





ARMOUR 80+ Gold PSU

Cooling Fan Start/Stop / LLC+DC-DC

Behold the 80+ Gold Certified, adopted mature LLC+DC-DC solution, the latest ARMOUR series deliver up to 90.54% efficiency at typical Loading under 110V, 92.3% efficiency at typical Loading under 220V.



Individual Smart Start/Stop Switch

Under the 0 RPM fan mode, the smart temperature control IC monitors the inner temperature. When the temperature is with 60°, the fan stops spinning entirely until the temperature is higher than 60°. The Individual Smart Start/Stop Switch guarantees superior cooling performance and near silent operation.



Specs:

Modular

Non-Modular

Certifications

80 PLUS GOLD

Dimensions(L*W*H)

140*150*86 MM



Input Voltage

100-240 VAC

Input Current

10A MAX

Efficiency

80 PLUS GOLD, 92.4% at typical loading

Output Capacity

750 W

Input Frequency

50-60Hz

PFC

Active PFC

Net Weight

2.0kg

Gross Weight

2.49kg

Fan Size

120MM Hydraulic Bearing fan

Protections

UVP, OVP, OPP, SCP, Lightning Protection

Operation Temperature

0~40℃

MTBF

100,000 hours

Circuit Structure

LLC + DC-DC

Regulatory

CE/FCC/C-Tick/ROHS/CCC/EAC/cTUVus/IEC
