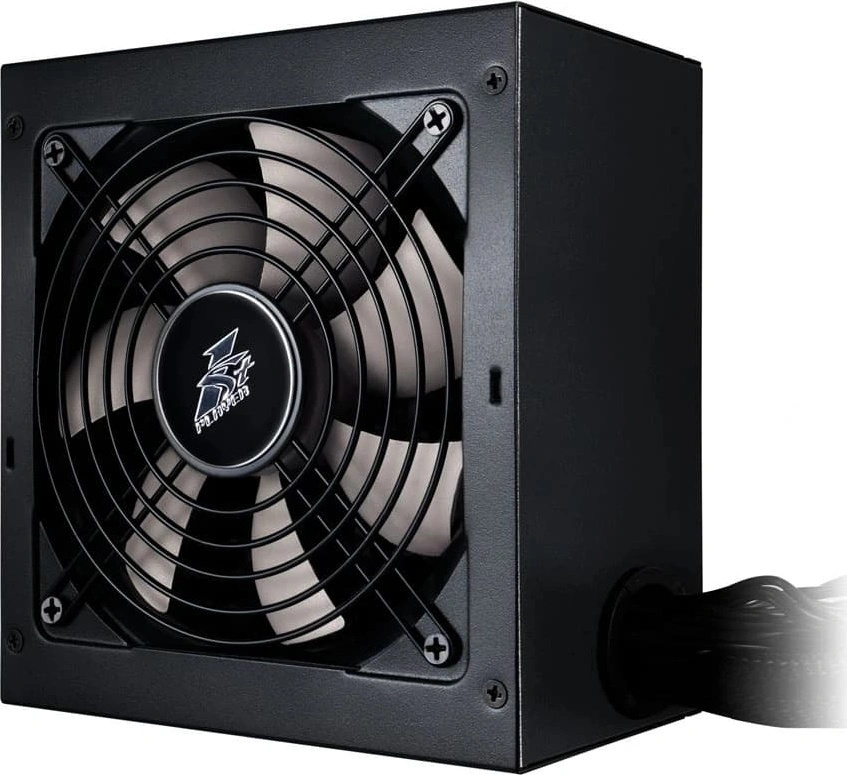

1stPlayer PS-700AX 700W 80 PLUS Bronze

1stPlayer PS-700AX

DK series is the latest PSU series launched by 1STPLAYER. All the DK models are armed with 80 PLUS bronze certificate, Japanese TK main capacitors, single +12V rail design and 1ST optimized rail structure, so as to realize a more powerful performance.



Japanese TK Main Capacitor

With the main capacitor from Toshin Kogyo Co. , Ltd, a company focus on the production of electrolytic capacitors and film capacitors, DK 5.0 delivers a reliable life expectancy and quality assurance.

Double Forward + Active PFC

CPU decides the computing power in smartphone, PC. In a similar way, the structure of a PSU decides the main performance like efficiency, temp. With double forward and active PFC, DK 5.0 ensures a supreme performance.



Worry free of unstable voltage.

With the full range voltage and SCP function, when the power is cut off under abnormal condition, DK 5.0 will activate the power fff protection function to protect the PSU and motherboard effectively.



Specs:

Dimensions(L*W*H)

140*150*86 MM

Modular

700 Non-Modular

Certifications

80 PLUS BRONZE

Input Voltage

100-240 VAC

Input Current

10A MAX

Efficiency

87% @ Typical Load

Output Capacity

700W

Input Frequency

50-60Hz

PFC

Active PFC

Net Weight

2.2kg

Gross Weight

2.6kg

Fan Size

120MM Hydraulic Bearing

Protections

UVP, OVP, OPP, SCP, Lightning Protection

Operation Temperature

0~40℃

MTBF

100,000 hours

Circuit Structure

Double Forward

Regulatory

CE/FCC/C-Tick/ROHS/CCC/cTUVus/IEC/EAC
