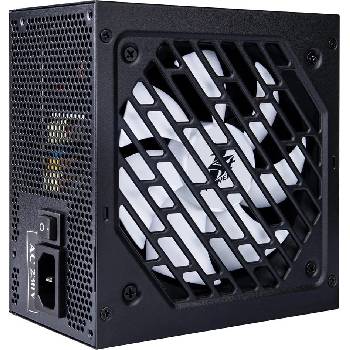

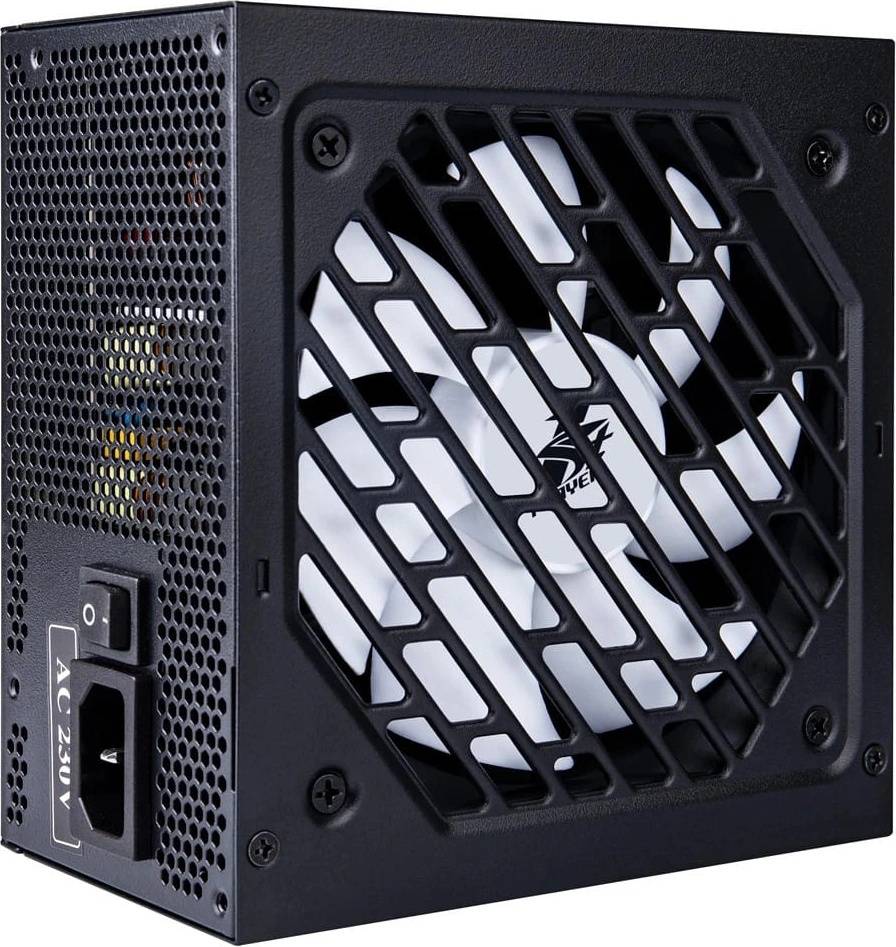

1stPlayer PS-700FK

1stPlayer PS-700FK

· Double Forward + APFC (4.0 PPFC)

· EFF. high as 85% under typical loading

· Perfect combination of cooling and silent with 12CM Hydraulic

   Bearing fan

· Single +12V output

· Comply with ErP LOT 6, Standby power low as 0.5W

· OVP, OPP, UVP, SCP

· Flat Cable (6.5 / 7.0 / 7.5)



Explosive Output RTX Gaming Power S upply

The new NVIDIA Turing GPU architecture and innovative RTX platform provide real-time ray tracing, artificial intelligence, and programmable coloring, which puts new demands on the power supply capability of instant power, while the FK series power supply can meet the rigid demand of 20 series GPU for explosive power.





Double Forward + Active PFC

CPU decides the computing power in smartphone, PC. In a similar way, the structure of a PSU decides the main performance like efficiency, temp. With double forward and active PFC, DK 4.0 ensures a supreme performance.







Specs:

Dimensions(L*W*H)

140*150*86 MM

Modular

Non-Modular

Certifications

None 80+

Input Voltage

200-240 VAC

Input Current

8/10A MAX

Efficiency

None 80+

Output Capacity

700W

Input Frequency

50-60Hz

PFC

Active PFC(400W is PPFC)

Net Weight

1.9kg

Gross Weight

2.4kg

Fan Size

120MM Hydraulic Bearing

Protections

UVP, OVP, OPP, SCP, Lightning Protection

Operation Temperature

0~40℃

MTBF

100,000 hours

Circuit Structure

Double Forward

Regulatory

CE/FCC/C-Tick/ROHS/CCC/IEC/EAC
